Part Number # 16582-3
SKU # 2314076

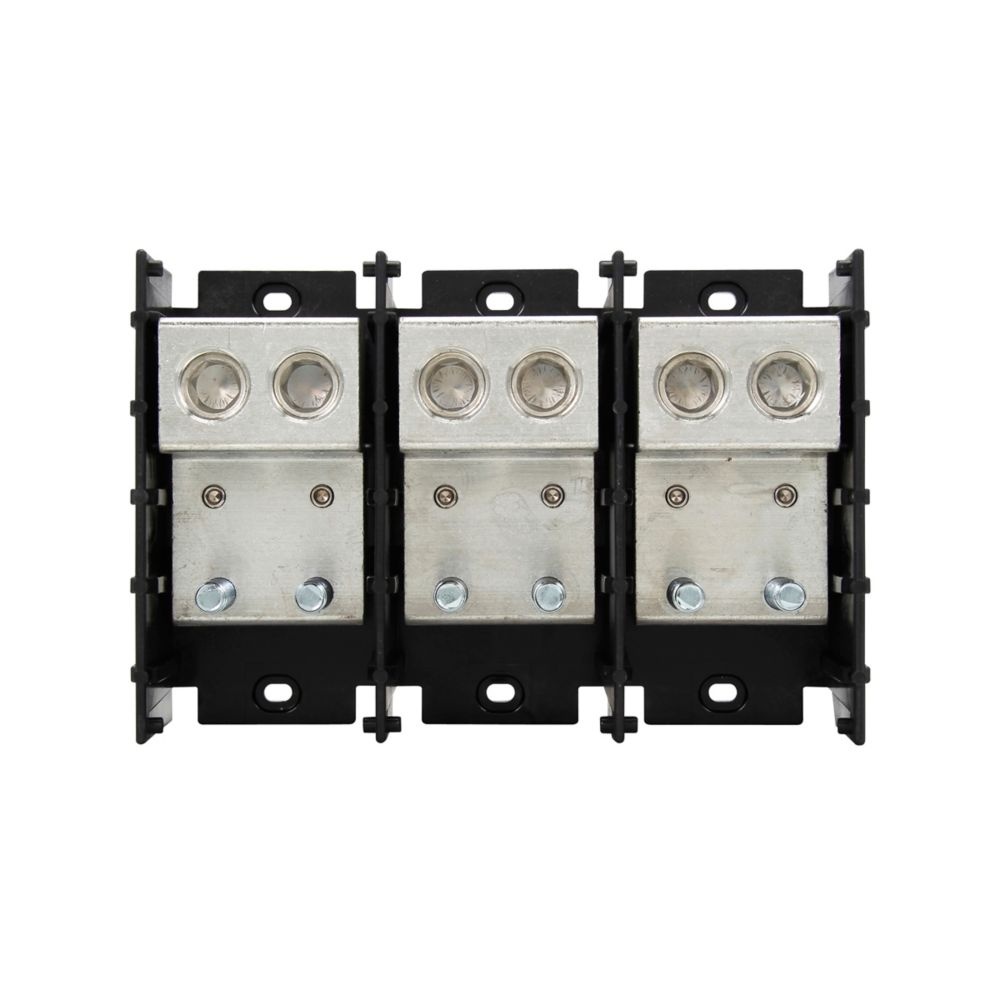

Image provided may only be a representation of
final product and may include optional equipment
16582-3
Bussmann 16582-3 Power Distribution Block
Part Number # 16582-3
SKU # 2314076
Bussmann 16582-3 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | 16582-3 |
| SKU #: | 2314076 |
| Amperage Rating: | 760, 760 A |
| Dimensions: | 8.48 in L x 5.5 in W x 2.93 in H |
| Finish: | Tin Plated |
| Number of Poles: | 3 |
| Series: | 165 |
| Short Circuit Current Rating (kA): | 10, 10 kA |
| Type: | Barrier, Barrier Connector to Stud, Barrier/Connector to Stud |
| Wire Size: | 6 AWG to 500 kcmil, 6 AWG to 500 kcmil Cu/Al Line |
| Country of origin: | MX |
| Material: | Aluminum/Thermoplastic, Thermoplastic |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121629 |
| UPC: | 00051712208482 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann 16582-3 Power Distribution Block
Brand: Bussmann
Part Number: 16582-3
Bussmann Power Terminal Block, Barrier, Series: 165, 600 VAC/VDC, 760 A, 3 Pole, 2 Primary Connections/Pole, (2) 3/8-16 x 1-5/8 in Stud Secondary Connection/Pole, 6 AWG to 500 kcmil Cu/Al Line Wire, 10 kA Short Circuit Current Rating, Aluminum/Thermoplastic, Tin Plated, Black, 8.48 in L x 5.5 in W x 2.93 in H
Additional Description: BUSS-16582-3 (N) TERM. BLOCK ASSY 6PK NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Bussmann series power terminal block, 600 Vac, 600 Vdc, 760 A, Three-pole, (2) 3/8 Inches-16 TPI X 1-5/8 Inches Stud (Load), SCCR: 10 kA, Black, Molded Thermoplastic Base, Tin-plated aluminum connector
16582-3 Application
Electrical Assemblies, Panels and EOEMs Applications16582-3 Item Features
- 6 AWG to 500 kcmil copper/aluminum line, 3/8-16 x 1-5/8 in stud load connection
- https://www.youtube.com/watch?v=YMvqUyoETXk
16582-3 Standards
CE Certified|CSA File No. 53787|RoHS Compliant|UL 1059/508A File No. E221592 Guide XCFR2|UL 94 V-0 Flammability RatingSKU #2314076Part Number #16582-3UNSPSC39121629UPC00051712208482
