170M1318

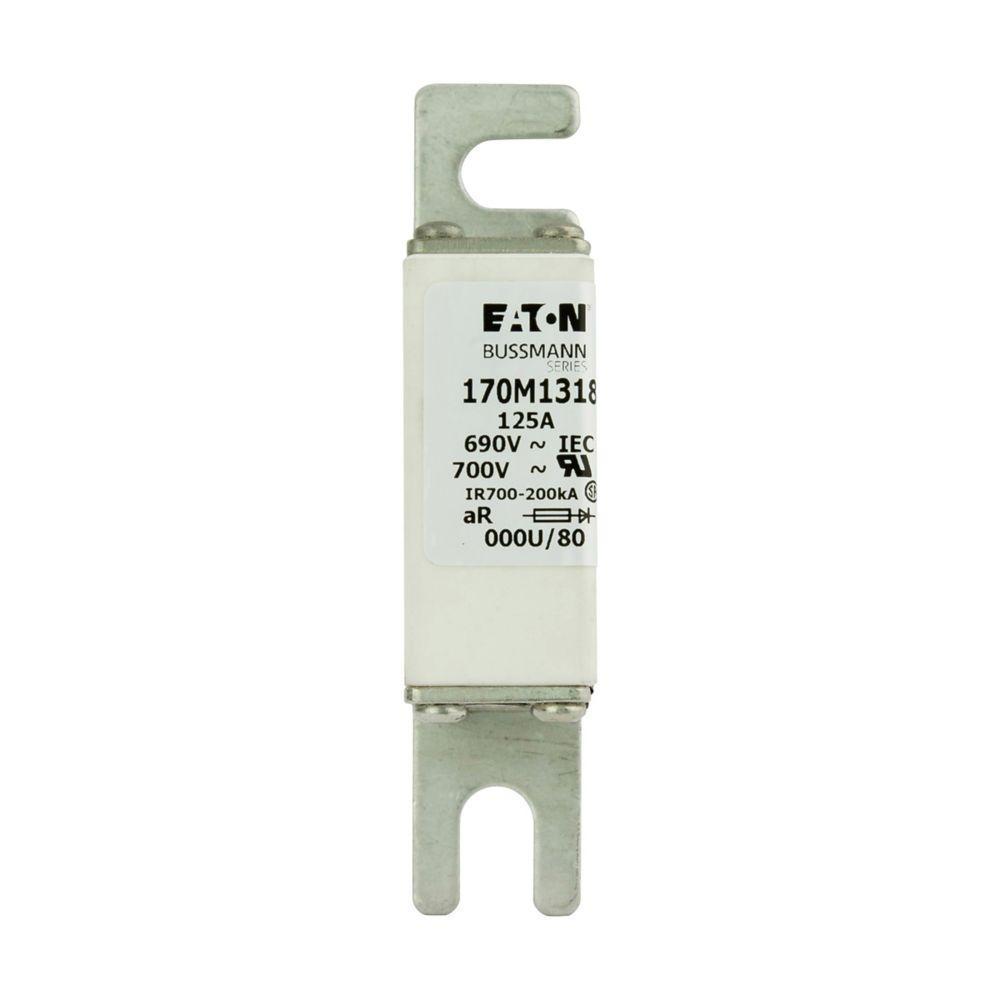

Bussmann 170M1318 High Speed Fuse
Part Number # 170M1318
SKU # 2289102
$1415.00 / 10Each
Typical price:$2877.40 / Each
Bussmann 170M1318 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | 170M1318 |
| SKU #: | 2289102 |
| Amperage Rating: | 125 A |
| Body Type: | Square |
| Class: | AR |
| Frequency Rating: | 45 to 1000, 45 to 1000 Hz |
| Indicating/Non-Indicating: | Non-Indicating |
| Interrupt Rating: | 200, 200 kA |
| Series: | 170M |
| Terminal Type: | Blade |
| Type: | Type U/80 |
| Material: | Ceramic |
| Mounting type: | Stud |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121625 |
| UPC: | 00051712216548 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1415.00 / 10Each
Typical price:$2877.40 / Each
Quantity:
- Bussmann High Speed Fuse, Type U/80, Series: 170M, Indicating/Non-Indicating: Non-Indicating, 125 A, 690 V, 200 kA Interrupt, Class: AR, 45 to 1000 Hz, Blade Terminal, Stud Mount, Square Body Type, Ceramic, 1 mm L x 21 mm W x 40 mm H Body Size
170M1318 Application
Electrical Assemblies, Panels, OEMs, DC Common Bus, DC Drives, Power Converters/Rectifiers and Reduced Voltage Starters Applications, Safety and Security Systems170M1318 Item Features
- Excellent DC performance
- Low arc voltage and low energy let through
- Low watts loss
- Superior cycling capability
- Designated size 000
- https://www.youtube.com/watch?v=YMvqUyoETXk
170M1318 Standards
IEC Rated ,UL Recognized ,IEC-Einstufung ,UL Recognized ,UL Recognized ,IEC nominaal ,Classificazione IEC ,UL Recognized ,Zgodność z IEC ,UL Recognized ,Parametry dle IEC ,UL Recognized ,UL Recognized ,Clasificación IEC ,Homologué CEI ,Reconnu UL,CE Marked,RoHS Compliant,CE-Kennzeichnung,RoHS-konform,CE-markering,RoHS-compliant,Con marchio CE,Conforme a RoHS,Zgodny z wymogami RoHS,Uzyskano oznaczenie CE,Opatřeno značkou CE,Splňuje požadavky RoHS,Compatible con RoHS,Con marca CE,Conformité RoHS,Marquage CESKU #2289102Part Number #170M1318UNSPSC39121625UPC00051712216548
