Part Number # 170M1320
SKU # 2438983
170M1320

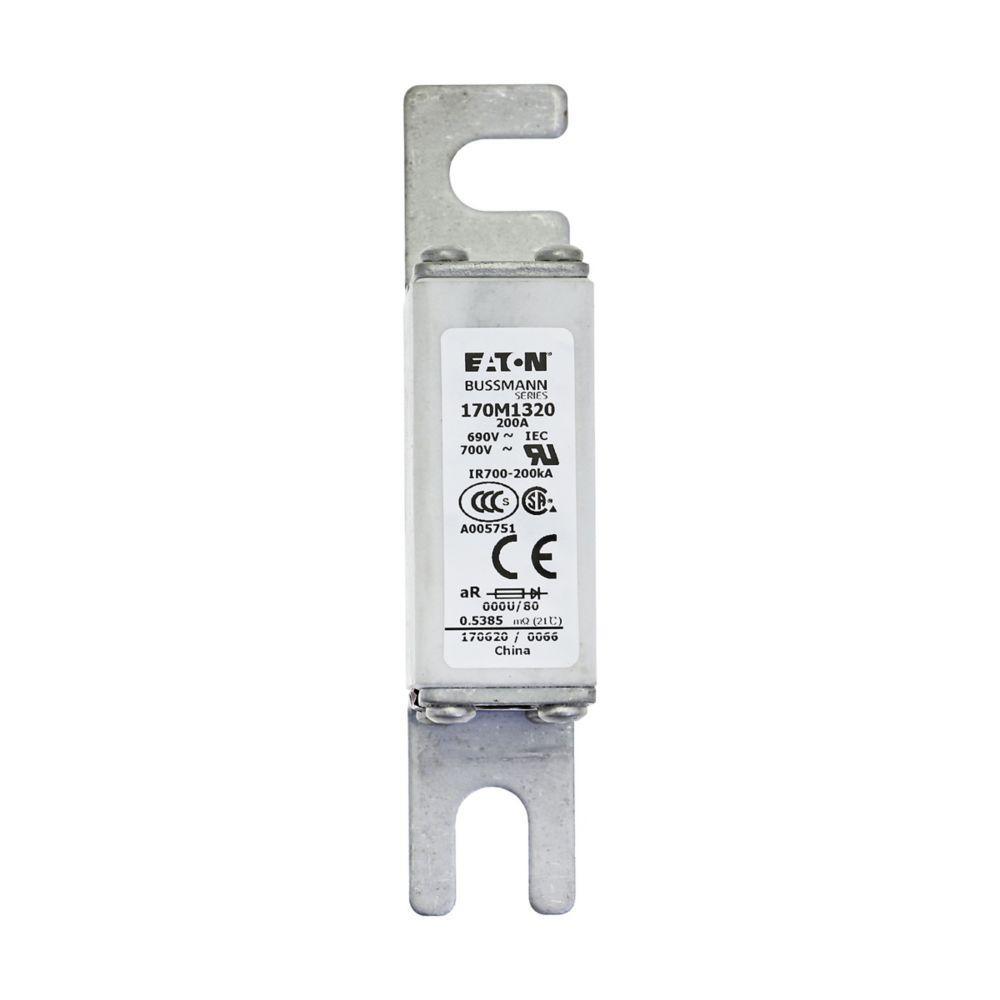

Bussmann 170M1320 High Speed Fuse
Part Number # 170M1320
SKU # 2438983
Bussmann 170M1320 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | 170M1320 |
| SKU #: | 2438983 |
| Amperage Rating: | 200 A |
| Body Type: | Square |
| Class: | AR |
| Frequency Rating: | 45 to 1000 Hz |
| Indicating/Non-Indicating: | Non-Indicating |
| Interrupt Rating: | 200 kA |
| Series: | 170M |
| Terminal Type: | Blade End |
| Type: | Type U/80 |
| Material: | Ceramic |
| Mounting type: | DIN 43 620 |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121625 |
| UPC: | 00051712216562 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann 170M1320 High Speed Fuse
Brand: Bussmann
Part Number: 170M1320
Bussmann High Speed Fuse, Type U/80, Series: 170M, Non-Indicating, 200 A, 690 V, 200 kA Interrupt, Class: aR, 45 to 1000 Hz Frequency, Blade End Terminal, DIN 43 620 Mounting, Square Body, Ceramic, 100 mm L x 21 mm W x 40 mm H Body
Additional Description: BUSS-170M1320 (N) FUSE 200A 690V 000U/80 AR UC NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Fuse-link, high speed, 200 A, AC 690 V, DIN 000, 21 x 40 x 100 mm, aR, DIN, IEC
170M1320 Application
Electrical Assemblies, Panels, EOEMs, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starters Applications, Safety and Security Systems, Industrial Facilities and Factories - Facility and Critical Power170M1320 Item Features
- Excellent DC performance
- Low arc voltage and low energy let-through
- Low wattage loss
- Superior cycling capability
- https://www.youtube.com/watch?v=YMvqUyoETXk
170M1320 Standards
IEC Rated ,UL Recognized ,UL Recognized ,IEC-Einstufung ,UL Recognized ,Classificazione IEC ,UL Recognized ,IEC nominaal ,Zgodność z IEC ,UL Recognized ,Parametry dle IEC ,UL Recognized ,Reconnu UL ,Homologué CEI,RoHS Compliant,CE Marked,CE-Kennzeichnung,RoHS-konform,Con marchio CE,Conforme a RoHS,RoHS-compliant,CE-markering,Uzyskano oznaczenie CE,Zgodny z wymogami RoHS,Splňuje požadavky RoHS,Opatřeno značkou CE,Marquage CE,Conformité RoHSSKU #2438983Part Number #170M1320UNSPSC39121625UPC00051712216562
Image provided may only be a representation of final product and may include optional equipment
