Part Number # 170M1322
SKU # 2299550
Image provided may only be a representation of
final product and may include optional equipment
170M1322

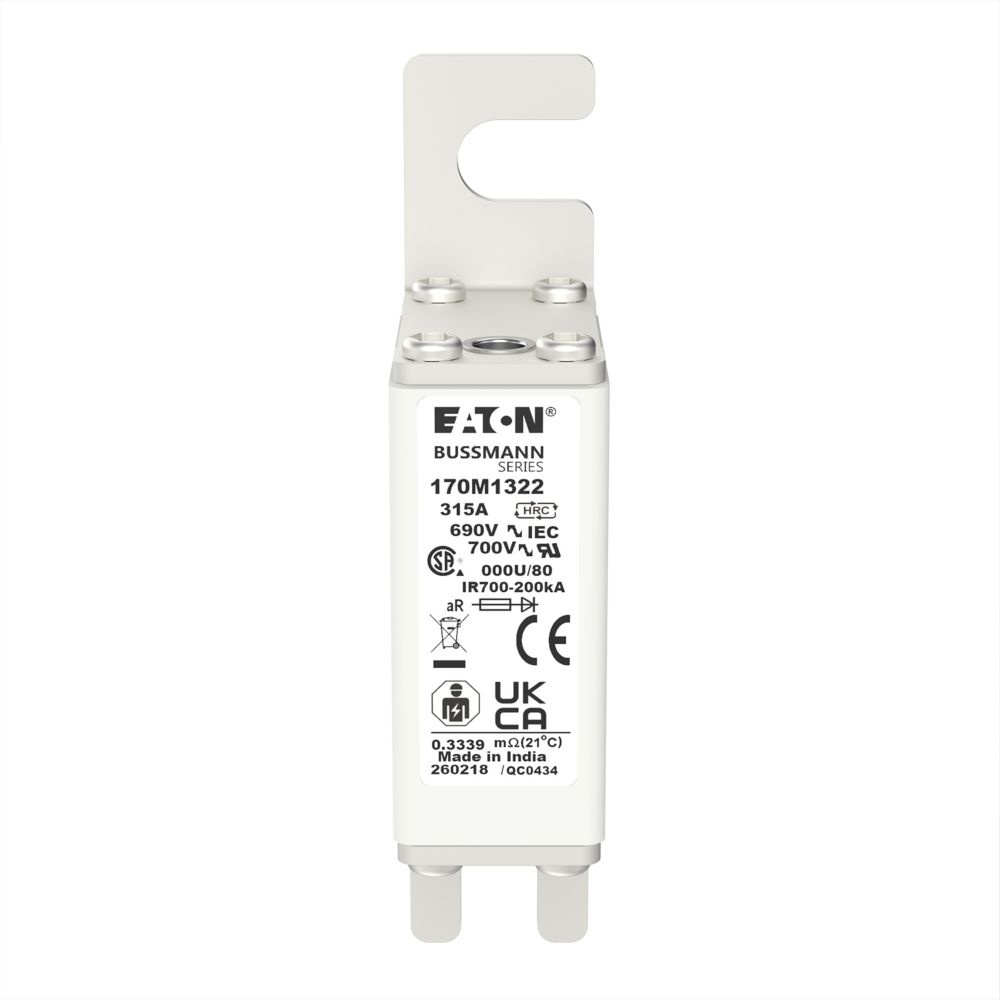

Bussmann 170M1322 High Speed Fuse
Part Number # 170M1322
SKU # 2299550
Bussmann 170M1322 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | 170M1322 |
| SKU #: | 2299550 |
| Amperage Rating: | 315, 315 A |
| Body Type: | Square |
| Class: | AR |
| Frequency Rating: | 45 to 1000, 45 to 1000 Hz |
| Indicating/Non-Indicating: | Non-Indicating |
| Interrupt Rating: | 200, 200 kA |
| Series: | 170M |
| Terminal Type: | Blade, Blade End |
| Type: | Type U/80 |
| Material: | Ceramic |
| Mounting type: | DIN 43 620, Stud |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121625 |
| UPC: | 00051712216586 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann 170M1322 High Speed Fuse
Brand: Bussmann
Part Number: 170M1322
Bussmann High Speed Fuse, Type U/80, Series: 170M, Indicating/Non-Indicating: Non-Indicating, 315 A, 690 VAC, 200 kA Interrupt, Class: aR, 45 to 1000 Hz, Blade End Terminal, DIN 43 620 Mount, Square Body, Ceramic, 100 mm L x 21 mm W x 40 mm H Body Size
Additional Description: BUSS-170M1322 (N) FUSE 315A 690V 000U/80 AR UC NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Fuse-link, high speed, 315 A, AC 690 V, DIN 000, aR, DIN, IEC, live gripping lugs
170M1322 Application
Electrical Assemblies, Panels, EOEMs, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starters Applications, Safety and Security Systems, Industrial Facilities and Factories - Facility and Critical Power170M1322 Item Features
- Excellent DC performance
- Low arc voltage and low energy let-through
- Low wattage loss
- Superior cycling capability
- https://www.youtube.com/watch?v=YMvqUyoETXk
170M1322 Standards
UL Recognized ,IEC Rated ,IEC-Einstufung ,UL Recognized ,IEC nominaal ,UL Recognized ,UL Recognized ,Classificazione IEC ,UL Recognized ,Zgodność z IEC ,Parametry dle IEC ,UL Recognized ,IEC Sınıfı ,UL Recognized,CE Marked,RoHS Compliant,CE-Kennzeichnung,RoHS-konform,CE-markering,RoHS-compliant,Con marchio CE,Conforme a RoHS,Zgodny z wymogami RoHS,Uzyskano oznaczenie CE,Splňuje požadavky RoHS,Opatřeno značkou CE,RoHS Uyumlu,CE İşaretliSKU #2299550Part Number #170M1322UNSPSC39121625UPC00051712216586
