Part Number # 170M1359
SKU # 7288
170M1359

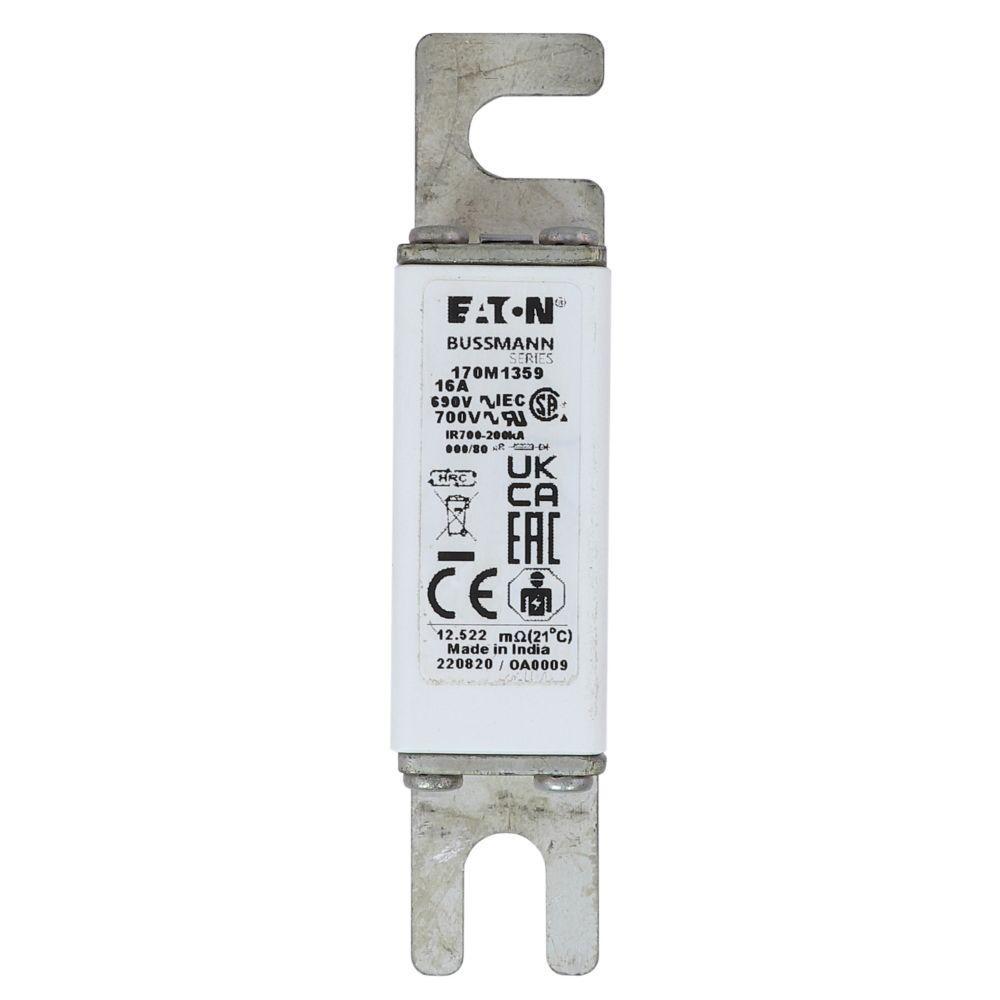

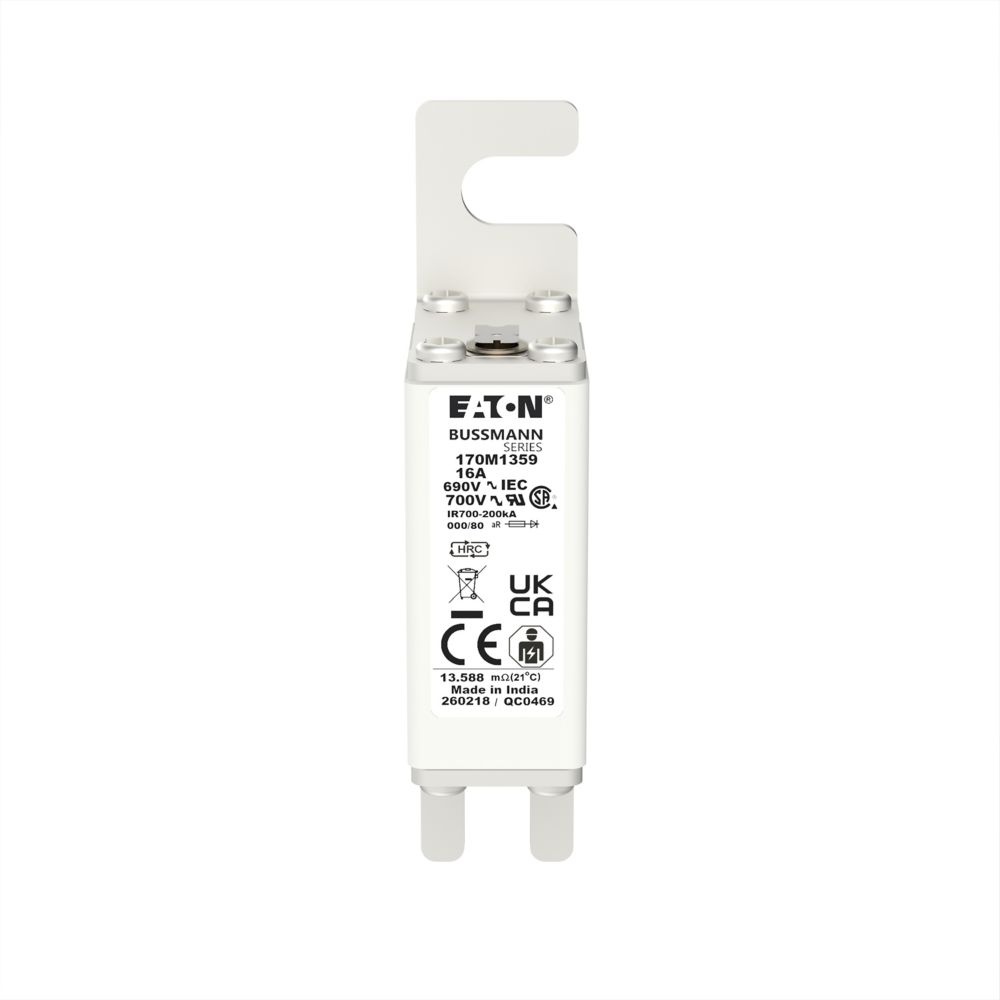

Bussmann 170M1359 High Speed Fuse
Part Number # 170M1359
SKU # 7288
Bussmann 170M1359 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | 170M1359 |
| SKU #: | 7288 |
| Amperage Rating: | 16, 16 A |
| Body Type: | Square |
| Class: | gR |
| Frequency Rating: | 45 to 1000, 45 to 1000 Hz |
| Indicating/Non-Indicating: | Non-Indicating |
| Interrupt Rating: | 200, 200 kA |
| Series: | 170M |
| Terminal Type: | Blade, Blade End |
| Type: | Square Body Type 80, Type 80 |
| Material: | Ceramic |
| Mounting type: | DIN 43 620, Stud |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121625 |
| UPC: | 00051712216609 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann 170M1359 High Speed Fuse
Brand: Bussmann
Part Number: 170M1359
Bussmann High Speed Fuse, Square Body Type 80, Series: 170M, Non-Indicating, 16 A, 690 V, 200 kA Interrupt, Class: gR, 45 to 1000 Hz Frequency, Blade End Terminal, DIN 43 620 Mounting, Square Body, Ceramic, 100 mm L x 21 mm W x 40 mm H Body
Additional Description: BUSS-170M1359 (N) FUSE 16A 690V 000/80 GR UC NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Fuse-link, high speed, 16 A, AC 690 V, DIN 000, 21 x 40 x 100 mm, gR, DIN, IEC, single indicator
170M1359 Application
Critical Power, Electrical Assemblies, Panels and EOEMs, Industrial Facilities and Factory Facilities, Safety and Security Systems, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starter Applications170M1359 Item Features
- Excellent DC performance
- Low arc voltage and low energy let-through
- Low wattage loss
- Superior cycling capability
- Low arc voltage, excellent DC performance, superior cycling capability, designated size 000
- https://www.youtube.com/watch?v=YMvqUyoETXk
170M1359 Standards
IEC Rated ,UL Recognized ,UL Recognized ,IEC-Einstufung ,UL Recognized ,Classificazione IEC ,IEC nominaal ,UL Recognized ,UL Recognized ,Zgodność z IEC ,Parametry dle IEC ,UL Recognized ,Reconnu UL ,Homologué CEI,RoHS Compliant,CE Marked,CE-Kennzeichnung,RoHS-konform,Conforme a RoHS,Con marchio CE,RoHS-compliant,CE-markering,Zgodny z wymogami RoHS,Uzyskano oznaczenie CE,Opatřeno značkou CE,Splňuje požadavky RoHS,Conformité RoHS,Marquage CESKU #7288Part Number #170M1359UNSPSC39121625UPC00051712216609
Image provided may only be a representation of final product and may include optional equipment
