Part Number # 170M1360
SKU # 2331113
Image provided may only be a representation of
final product and may include optional equipment
170M1360

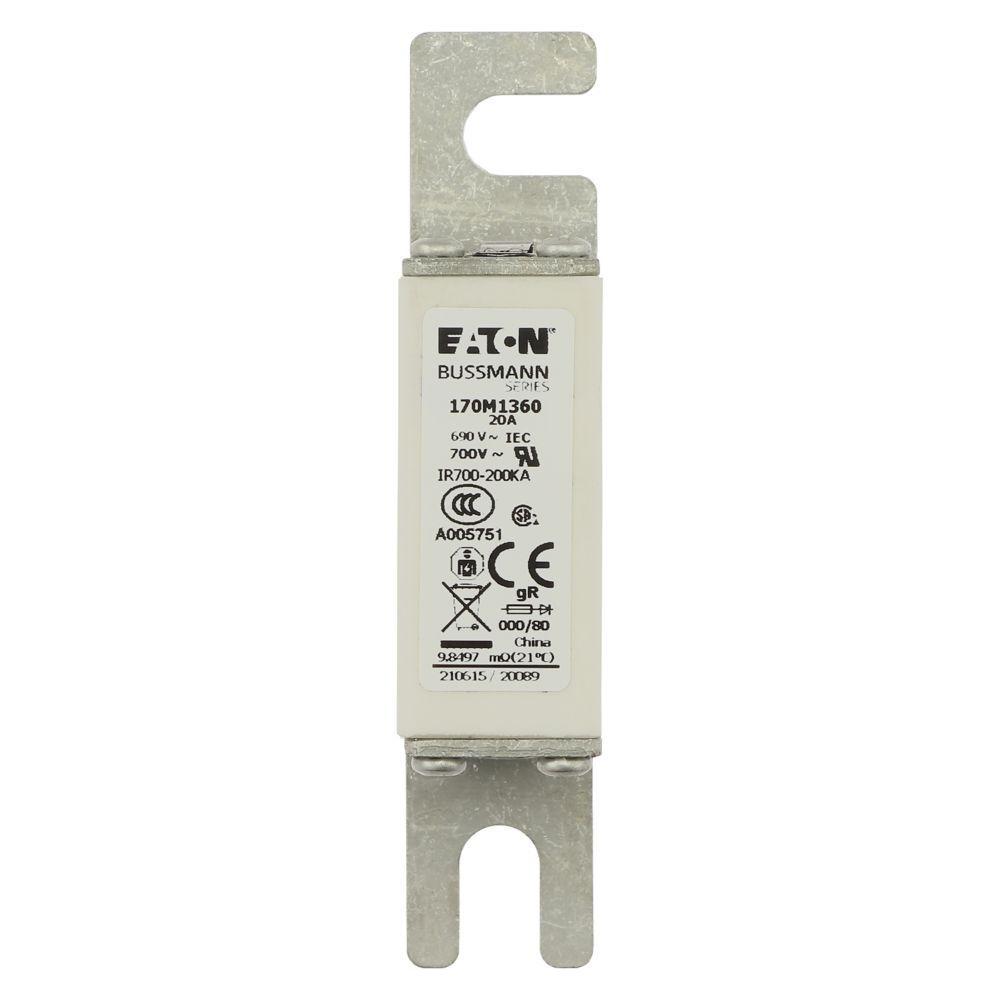

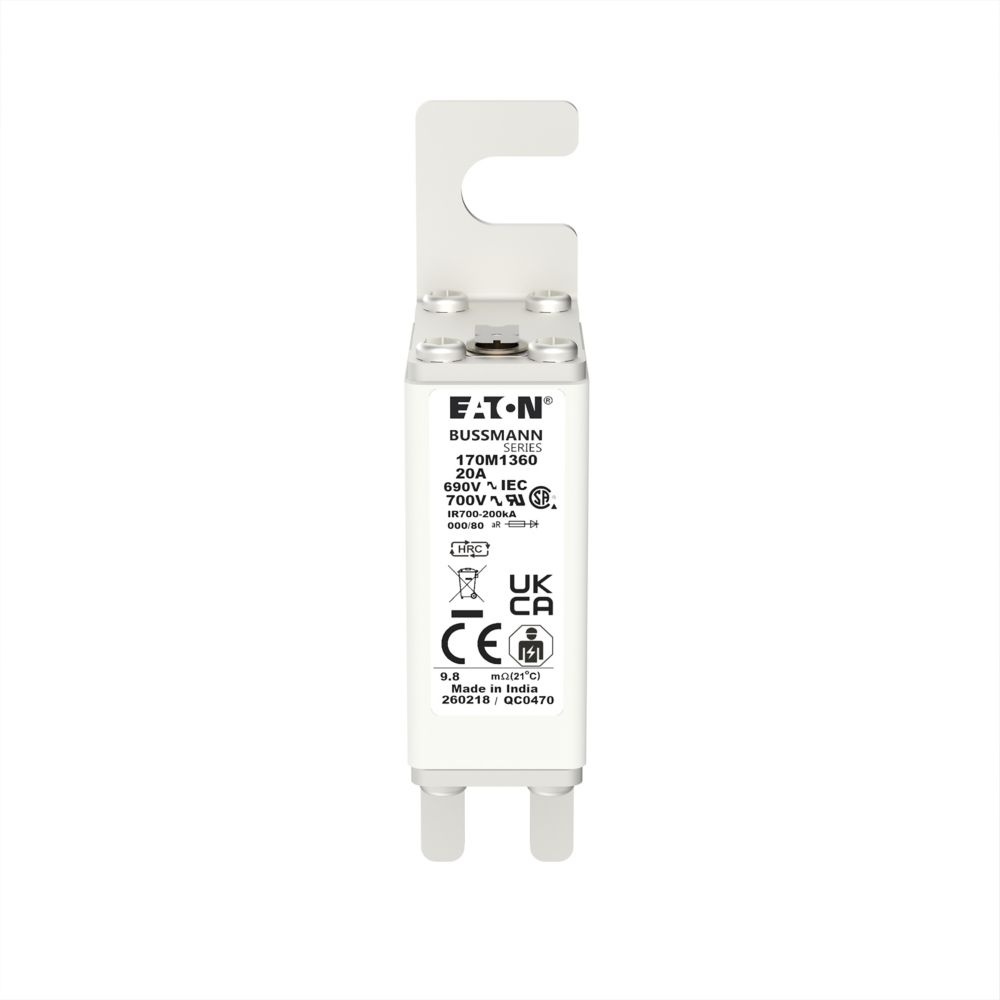

Bussmann 170M1360 High Speed Fuse
Part Number # 170M1360
SKU # 2331113
$1589.00 / 10Each
Typical price:$3231.20 / Each
Bussmann 170M1360 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | 170M1360 |
| SKU #: | 2331113 |
| Amperage Rating: | 20, 20 A |
| Body Type: | Square |
| Class: | gR |
| Indicating/Non-Indicating: | Indicating |
| Interrupt Rating: | 200 kA, 200/50 |
| Series: | 170M |
| Terminal Type: | Blade End, DIN 43 653 Blade |
| Type: | Visual |
| Mounting type: | DIN 43 620, Stud |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121625 |
| UPC: | 00051712216616 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1589.00 / 10Each
Typical price:$3231.20 / Each
Quantity:
Bussmann 170M1360 High Speed Fuse
Brand: Bussmann
Part Number: 170M1360
Bussmann High Speed Fuse, Visual, Series: 170M, Indicating, 20 A, 690 V, 200 kA Interrupt, Class: gR, Blade End Terminal, DIN 43 620 Mounting, Square Body, 100 mm L x 21 mm W x 40 mm H Body
Additional Description: BUSS-170M1360 (N) FUSE 20A 690V 000/80 GR UC NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Fuse-link, high speed, 20 A, AC 690 V, DIN 000, 21 x 40 x 100 mm, gR, DIN, IEC, single indicator
170M1360 Application
Electrical Assemblies, Panels, EOEMs, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starters Applications, Safety and Security Systems, Industrial Facilities and Factories - Facility and Critical Power170M1360 Item Features
- Excellent DC performance
- Low arc voltage and low energy let-through
- Low wattage loss
- Superior cycling capability
- Square body DIN 43653 bolted tags high speed fuse
- https://www.youtube.com/watch?v=YMvqUyoETXk
170M1360 Standards
UL Recognized ,IEC Rated ,UL Recognized ,IEC-Einstufung ,UL Recognized ,Classificazione IEC ,UL Recognized ,IEC nominaal ,UL Recognized ,Zgodność z IEC ,UL Recognized ,Parametry dle IEC,RoHS Compliant,CE Marked,CE-Kennzeichnung,RoHS-konform,Con marchio CE,Conforme a RoHS,RoHS-compliant,CE-markering,Uzyskano oznaczenie CE,Zgodny z wymogami RoHS,Splňuje požadavky RoHS,Opatřeno značkou CESKU #2331113Part Number #170M1360UNSPSC39121625UPC00051712216616
