Part Number # 170M1363
SKU # 2256867
170M1363

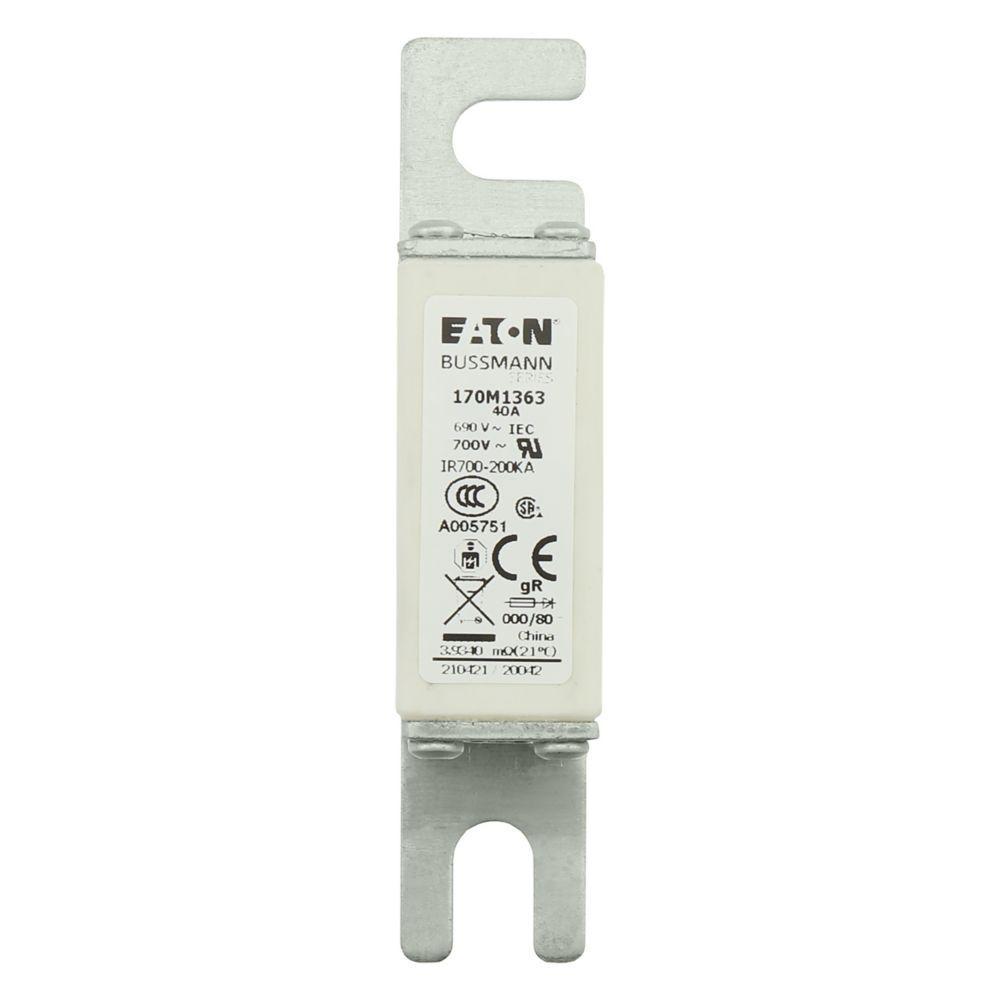

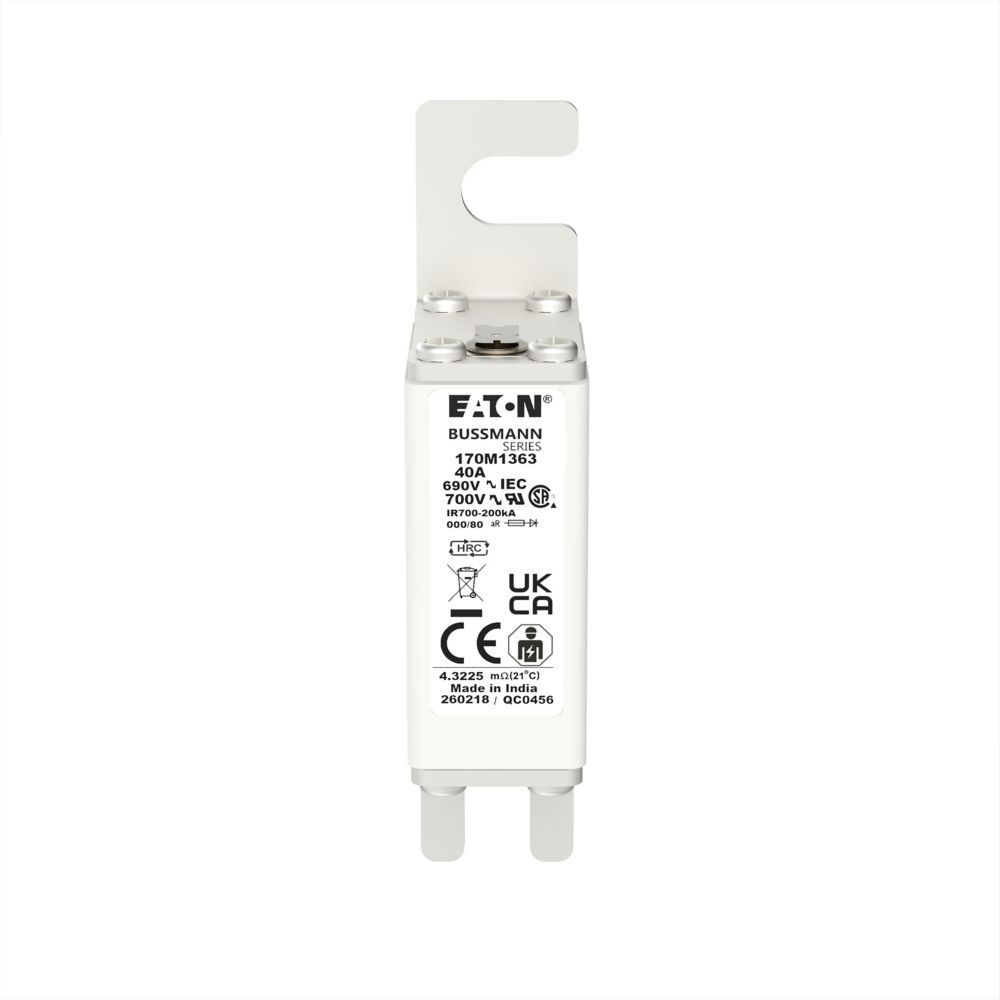

Bussmann 170M1363 High Speed Fuse
Part Number # 170M1363
SKU # 2256867
$1972.30 / 10Each
Typical price:$4010.60 / Each
Bussmann 170M1363 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | 170M1363 |
| SKU #: | 2256867 |
| Amperage Rating: | 40 A |
| Body Type: | Square |
| Class: | gR |
| Frequency Rating: | 45 to 1000 Hz |
| Indicating/Non-Indicating: | Non-Indicating |
| Interrupt Rating: | 200 kA |
| Series: | 170M |
| Terminal Type: | Blade End |
| Type: | Square Body Type 80 |
| Material: | Ceramic |
| Mounting type: | DIN 43 620 |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121625 |
| UPC: | 00051712216647 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1972.30 / 10Each
Typical price:$4010.60 / Each
Quantity:
- Bussmann High Speed Fuse, Square Body Type 80, Series: 170M, Non-Indicating, 40 A, 690 V, 200 kA Interrupt, Class: gR, 45 to 1000 Hz Frequency, Blade End Terminal, DIN 43 620 Mounting, Square Body, Ceramic, 100 mm L x 21 mm W x 40 mm H Body
170M1363 Application
Critical Power, Electrical Assemblies, Panels and EOEMs, Industrial Facilities and Factory Facilities, Safety and Security Systems, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starter Applications170M1363 Item Features
- Excellent DC performance
- Low arc voltage and low energy let-through
- Low wattage loss
- Superior cycling capability
- Low arc voltage, excellent DC performance, superior cycling capability, designated size 000
- https://www.youtube.com/watch?v=YMvqUyoETXk
170M1363 Standards
IEC Rated ,UL Recognized ,UL Recognized ,IEC-Einstufung ,IEC nominal ,UL Recognized ,Classificazione IEC ,UL Recognized ,Zgodność z IEC ,UL Recognized ,UL Recognized ,Parametry dle IEC ,Reconnu UL ,Homologué CEI,RoHS Compliant,CE Marked,RoHS-konform,CE-Kennzeichnung,CE-markering,RoHS-compliant,Con marchio CE,Conforme a RoHS,Uzyskano oznaczenie CE,Zgodny z wymogami RoHS,Opatřeno značkou CE,Splňuje požadavky RoHS,Conformité RoHS,Marquage CESKU #2256867Part Number #170M1363UNSPSC39121625UPC00051712216647
Image provided may only be a representation of final product and may include optional equipment
