Part Number # 170M1365
SKU # 44269
170M1365

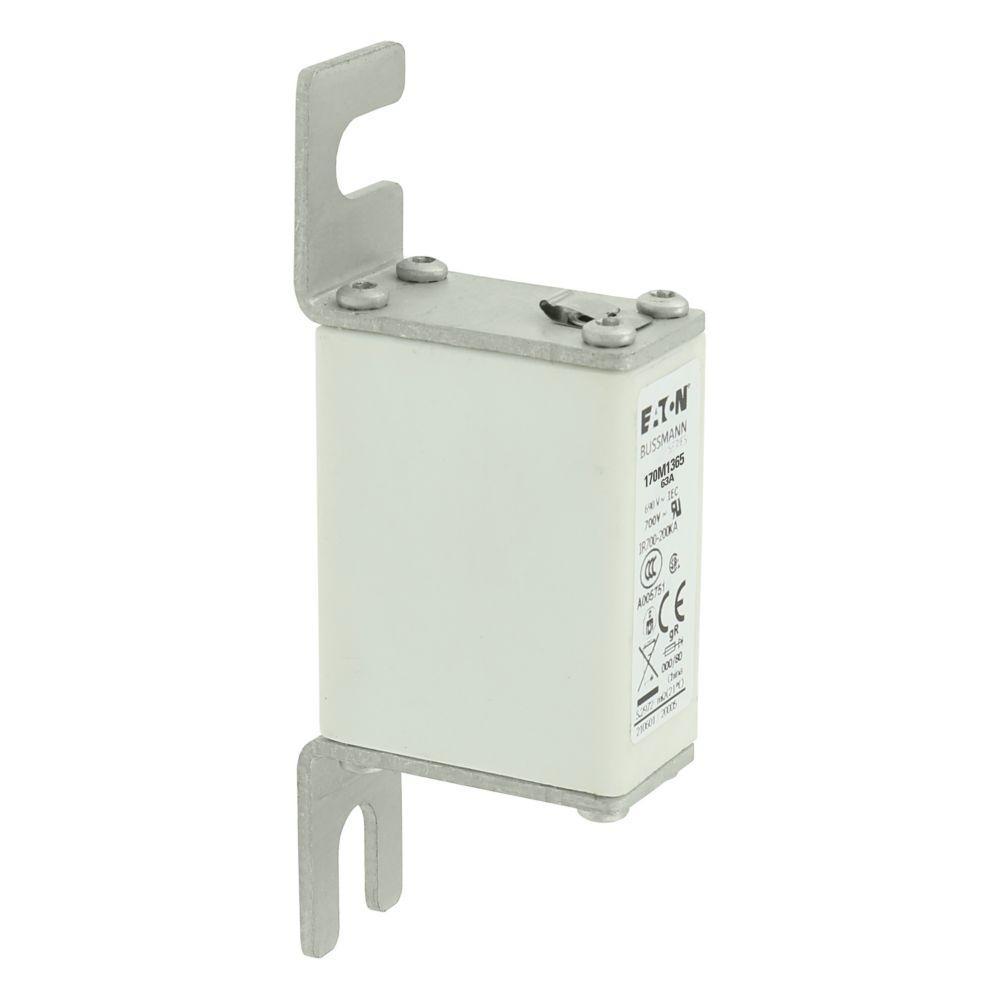

Bussmann 170M1365 High Speed Fuse
Part Number # 170M1365
SKU # 44269
Bussmann 170M1365 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | 170M1365 |
| SKU #: | 44269 |
| Amperage Rating: | 63, 63 A |
| Body Type: | Square |
| Class: | gR |
| Frequency Rating: | 45 to 1000, 45 to 1000 Hz |
| Indicating/Non-Indicating: | Non-Indicating |
| Interrupt Rating: | 200, 200 kA |
| Series: | 170M |
| Terminal Type: | Blade, Blade End |
| Type: | Type 80 |
| Material: | Ceramic |
| Mounting type: | DIN 43-653 Stud, Stud |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121625 |
| UPC: | 00051712216661 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann 170M1365 High Speed Fuse
Brand: Bussmann
Part Number: 170M1365
Bussmann High Speed Fuse, Type 80, Series: 170M, Indicating/Non-Indicating: Non-Indicating, 63 A, 690 VAC, 200 kA Interrupt, Class: gR, 45 to 1000 Hz, Blade End Terminal, DIN 43-653 Stud Mount, Square Body, Ceramic, 100 mm L x 21 mm W x 40 mm H Body Size
Additional Description: BUSS-170M1365 (N) FUSE 63A 690V 000/80 GR UC NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Bussmann series high speed square body fuse, 700V (UL), 690V (IEC), 63A, 200 kAIC, Top fuse status indicator, Fuse, Blade end X blade end, Class gR, DIN 43 620
170M1365 Application
Electrical Assemblies, Panels, EOEMs, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starters Applications, Safety and Security Systems, Industrial Facilities and Factories - Facility and Critical Power170M1365 Item Features
- Excellent DC performance
- Low arc voltage and low energy let-through
- Low wattage loss
- Superior cycling capability
- https://www.youtube.com/watch?v=YMvqUyoETXk
170M1365 Standards
UL Recognized ,IEC Rated ,UL Recognized ,IEC-Einstufung ,IEC nominaal ,UL Recognized ,UL Recognized ,Classificazione IEC ,UL Recognized ,Zgodność z IEC ,Parametry dle IEC ,UL Recognized ,Clasificación IEC ,UL Recognized,CE Marked,RoHS Compliant,CE-Kennzeichnung,RoHS-konform,RoHS-compliant,CE-markering,Con marchio CE,Conforme a RoHS,Uzyskano oznaczenie CE,Zgodny z wymogami RoHS,Opatřeno značkou CE,Splňuje požadavky RoHS,Con marca CE,Compatible con RoHSSKU #44269Part Number #170M1365UNSPSC39121625UPC00051712216661
Image provided may only be a representation of final product and may include optional equipment
