170M1366

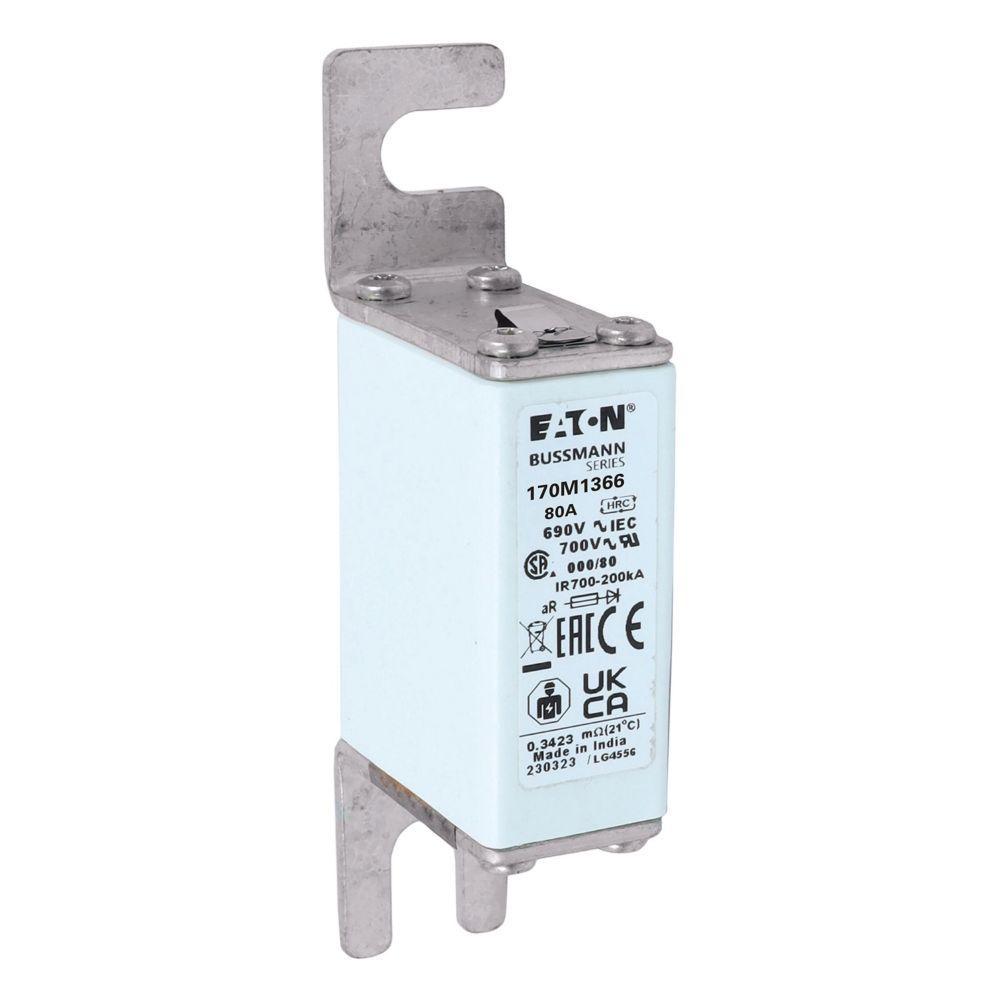

Bussmann 170M1366 High Speed Fuse
Part Number # 170M1366
SKU # 2294011
Bussmann 170M1366 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | 170M1366 |
| SKU #: | 2294011 |
| Amperage Rating: | 80 A |
| Body Type: | Square |
| Class: | AR |
| Frequency Rating: | 45 to 1000 Hz |
| Indicating/Non-Indicating: | Non-Indicating |
| Interrupt Rating: | 200 kA |
| Series: | 170M |
| Terminal Type: | Blade End |
| Type: | Type 80 |
| Material: | Ceramic |
| Mounting type: | DIN 43 620 |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121625 |
| UPC: | 00051712216678 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann 170M1366 High Speed Fuse
Brand: Bussmann
Part Number: 170M1366
Bussmann High Speed Fuse, Type 80, Series: 170M, Indicating/Non-Indicating: Non-Indicating, 80 A, 690 VAC, 200 kA Interrupt, Class: aR, 45 to 1000 Hz, Blade End Terminal, DIN 43 620 Mount, Square Body, Ceramic, 100 mm L x 21 mm W x 40 mm H Body Size
Additional Description: BUSS-170M1366 (N) FUSE 80A 690V 000/80 AR UC NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Bussmann series high speed square body fuse, 80 A, 690 V (IEC), 700 V (UL), Size 0, Top fuse status indicator
170M1366 Application
Electrical Assemblies, Panels, EOEMs, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starters Applications, Safety and Security Systems, Industrial Facilities and Factories - Facility and Critical Power170M1366 Item Features
- Excellent DC performance
- Low arc voltage and low energy let-through
- Low wattage loss
- Superior cycling capability
- https://www.youtube.com/watch?v=YMvqUyoETXk
170M1366 Standards
IEC Rated ,UL Recognized ,UL Recognized ,Parametry dle IEC,RoHS Compliant,CE Marked,Opatřeno značkou CE,Splňuje požadavky RoHSSKU #2294011Part Number #170M1366UNSPSC39121625UPC00051712216678
