Part Number # 170M1371
SKU # 2258092
Image Disclaimers Message
170M1371

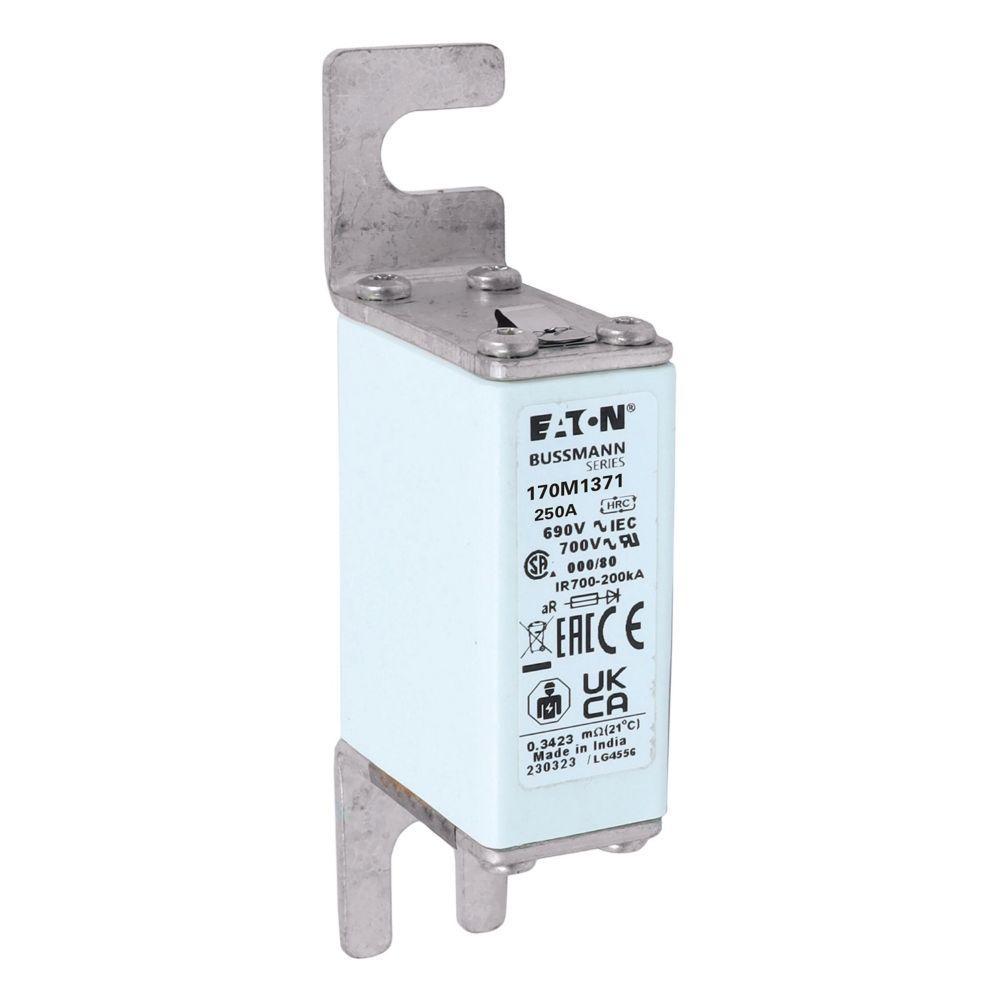

Bussmann 170M1371 High Speed Fuse
Part Number # 170M1371
SKU # 2258092
$1872.40 / 10Each
Typical price:$3807.60 / Each
Bussmann 170M1371 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | 170M1371 |
| SKU #: | 2258092 |
| Amperage Rating: | 250, 250 A |
| Body Type: | Square |
| Class: | AR |
| Frequency Rating: | 45 to 1000, 45 to 1000 Hz |
| Indicating/Non-Indicating: | Non-Indicating |
| Interrupt Rating: | 200, 200 kA |
| Series: | 170M |
| Terminal Type: | Blade, Blade End |
| Type: | Type 80 |
| Material: | Ceramic |
| Mounting type: | DIN 43-653 Stud, Stud |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121625 |
| UPC: | 00051712216722 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1872.40 / 10Each
Typical price:$3807.60 / Each
Quantity:
- Bussmann High Speed Fuse, Type 80, Series: 170M, Indicating/Non-Indicating: Non-Indicating, 250 A, 690 V AC, 200 kA Interrupt, Class: aR, 45 to 1000 Hz, Blade End Terminal, DIN 43-653 Stud Mount, Square Body, Ceramic, 100 mm L x 21 mm W x 40 mm H Body Size
170M1371 Application
Electrical Assemblies, Panels, EOEMs, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starters Applications, Safety and Security Systems, Industrial Facilities and Factories - Facility and Critical Power170M1371 Item Features
- Excellent DC performance
- Low arc voltage and low energy let-through
- Low wattage loss
- Superior cycling capability
- https://www.youtube.com/watch?v=YMvqUyoETXk
170M1371 Standards
IEC Rated ,UL Recognized ,IEC-Einstufung ,UL Recognized ,IEC nominaal ,UL Recognized ,UL Recognized ,Classificazione IEC ,Zgodność z IEC ,UL Recognized ,Parametry dle IEC ,UL Recognized ,UL Recognized ,Clasificación IEC ,Homologué CEI ,Reconnu UL,RoHS Compliant,CE Marked,RoHS-konform,CE-Kennzeichnung,CE-markering,RoHS-compliant,Con marchio CE,Conforme a RoHS,Uzyskano oznaczenie CE,Zgodny z wymogami RoHS,Splňuje požadavky RoHS,Opatřeno značkou CE,Con marca CE,Compatible con RoHS,Marquage CE,Conformité RoHSSKU #2258092Part Number #170M1371UNSPSC39121625UPC00051712216722
