Part Number # 170M1414
SKU # 2430097
170M1414

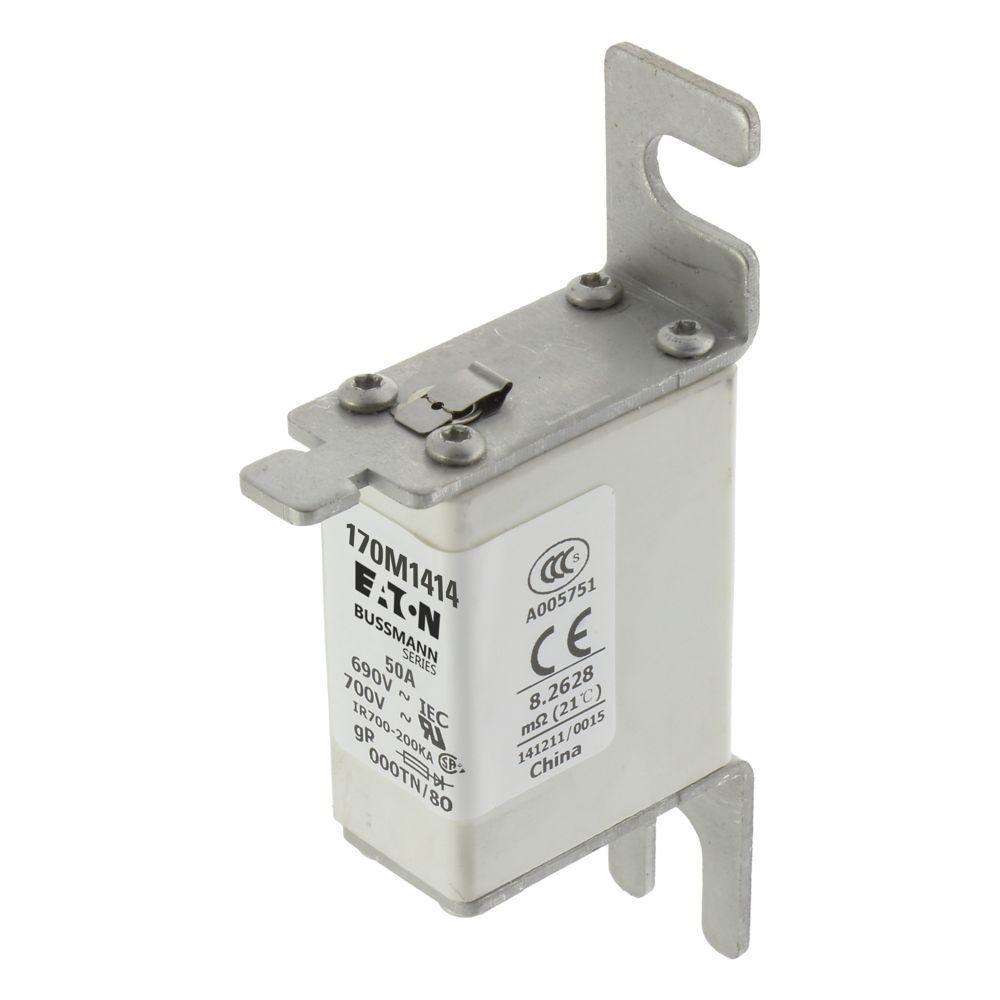

Bussmann 170M1414 High Speed Fuse
Part Number # 170M1414
SKU # 2430097
Bussmann 170M1414 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | 170M1414 |
| SKU #: | 2430097 |
| Amperage Rating: | 50 A |
| Body Type: | Square |
| Class: | gR |
| Frequency Rating: | 45 to 1000 Hz |
| Indicating/Non-Indicating: | Non-Indicating |
| Interrupt Rating: | 200 kA |
| Series: | 170M |
| Terminal Type: | Blade End |
| Type: | Type TN/80/T |
| Material: | Ceramic |
| Mounting type: | DIN 43 620 |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121625 |
| UPC: | 00051712216807 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann 170M1414 High Speed Fuse
Brand: Bussmann
Part Number: 170M1414
Bussmann High Speed Fuse, Type TN/80/T, Series: 170M, Non-Indicating, 50 A, 690 V, 200 kA Interrupt, Class: gR, 45 to 1000 Hz Frequency, Blade End Terminal, DIN 43 620 Mounting, Square Body, Ceramic, 100 mm L x 21 mm W x 40 mm H Body
Additional Description: BUSS-170M1414 (N) FUSE 50A 690V 000TN/80 GR UC NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Fuse-link, high speed, 50 A, AC 690 V, DIN 000, gR, DIN, IEC, single indicator, live gripping lugs
170M1414 Application
Electrical Assemblies, Panels, EOEMs, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starters Applications, Safety and Security Systems, Industrial Facilities and Factories - Facility and Critical Power170M1414 Item Features
- Excellent DC performance
- Low arc voltage and low energy let-through
- Low wattage loss
- Superior cycling capability
- Designated size 000
- https://www.youtube.com/watch?v=YMvqUyoETXk
170M1414 Standards
UL Recognized ,IEC Rated ,IEC-Einstufung ,UL Recognized ,Classificazione IEC ,UL Recognized ,IEC nominaal ,UL Recognized ,Zgodność z IEC ,UL Recognized ,Parametry dle IEC ,UL Recognized ,Homologué CEI ,Reconnu UL,CE Marked,RoHS Compliant,RoHS-konform,CE-Kennzeichnung,Con marchio CE,Conforme a RoHS,CE-markering,RoHS-compliant,Zgodny z wymogami RoHS,Uzyskano oznaczenie CE,Splňuje požadavky RoHS,Opatřeno značkou CE,Conformité RoHS,Marquage CESKU #2430097Part Number #170M1414UNSPSC39121625UPC00051712216807
Image provided may only be a representation of final product and may include optional equipment
