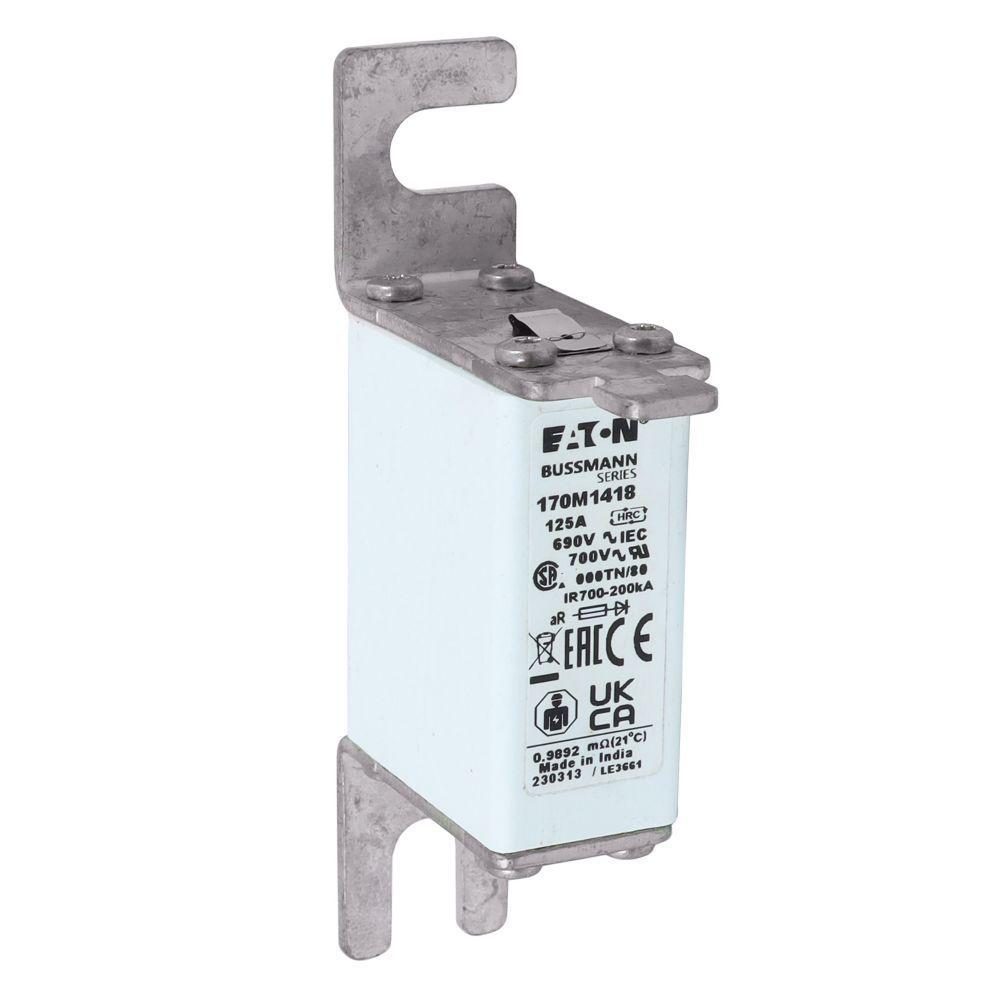

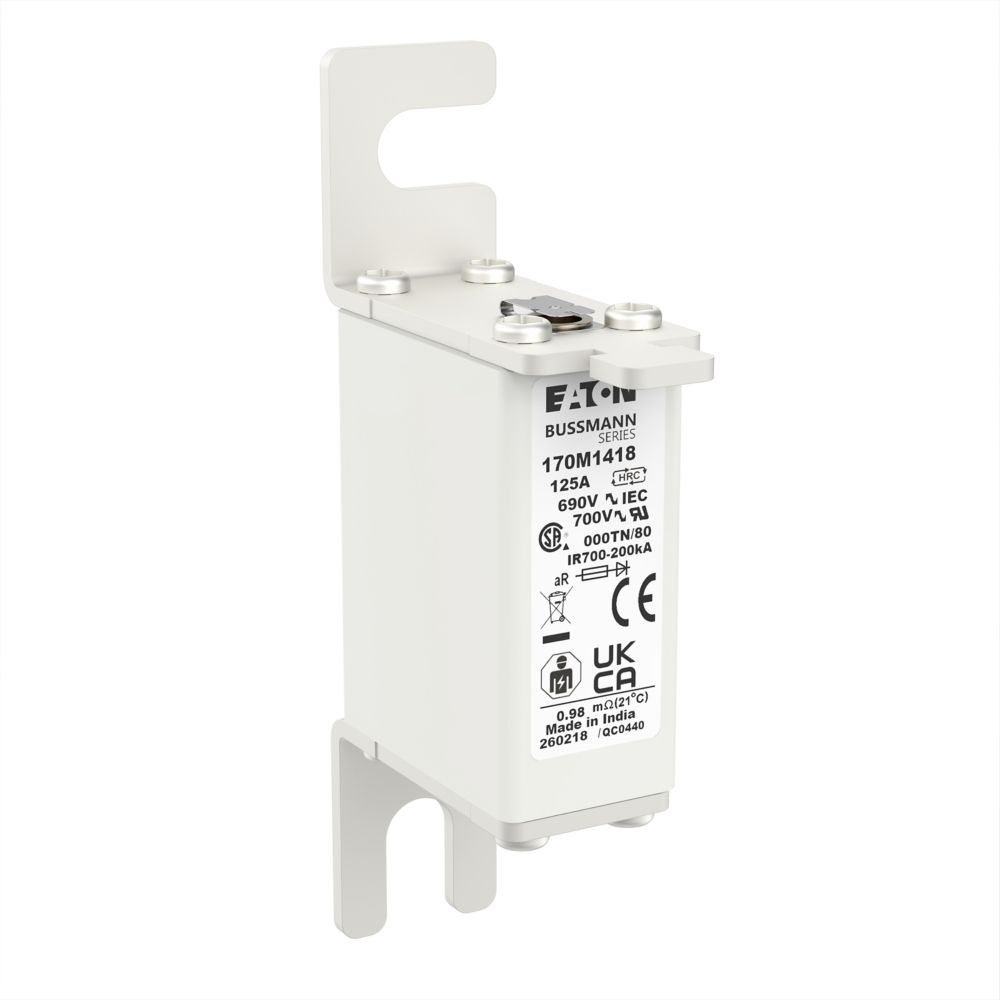

Bussmann 170M1418 High Speed Fuse
Part Number # 170M1418
SKU # 2220061
Bussmann 170M1418 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | 170M1418 |
| SKU #: | 2220061 |
| Amperage Rating: | 125 A |
| Body Type: | Square |
| Class: | AR |
| Frequency Rating: | 45 to 1000, 45 to 1000 Hz |
| Indicating/Non-Indicating: | Non-Indicating |
| Interrupt Rating: | 200, 200 kA |
| Series: | 170M |
| Terminal Type: | Blade, Blade End |
| Type: | Type TN/80/T |
| Material: | Ceramic |
| Mounting type: | DIN 43-653 Stud, Stud |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121625 |
| UPC: | 00051712216845 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann 170M1418 High Speed Fuse
Brand: Bussmann
Part Number: 170M1418
Bussmann High Speed Fuse, Type TN/80/T, Series: 170M, Non-Indicating, 125 A, 690 V, 200 kA Interrupt, Class: aR, 45 to 1000 Hz Frequency, Blade End Terminal, DIN 43-653 Stud Mounting, Square Body, Ceramic, 100 mm L x 21 mm W x 40 mm H Body
Additional Description: BUSS-170M1418 (N) FUSE 125A 690V 000TN/80 AR UC NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Fuse-link, high speed, 125 A, AC 690 V, DIN 000, aR, DIN, IEC, single indicator, live gripping lugs
170M1418 Application
Electrical Assemblies, Panels, EOEMs, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starters Applications, Safety and Security Systems, Industrial Facilities and Factories - Facility and Critical Power170M1418 Item Features
- Excellent DC performance
- Low arc voltage and low energy let-through
- Low wattage loss
- Superior cycling capability
- Designated size 000
- https://www.youtube.com/watch?v=YMvqUyoETXk
170M1418 Standards
UL Recognized ,IEC Rated ,IEC-Einstufung ,UL Recognized ,Classificazione IEC ,UL Recognized ,UL Recognized ,IEC nominaal ,Zgodność z IEC ,UL Recognized ,Parametry dle IEC ,UL Recognized ,Reconnu UL ,Homologué CEI,CE Marked,RoHS Compliant,RoHS-konform,CE-Kennzeichnung,Conforme a RoHS,Con marchio CE,CE-markering,RoHS-compliant,Uzyskano oznaczenie CE,Zgodny z wymogami RoHS,Opatřeno značkou CE,Splňuje požadavky RoHS,Conformité RoHS,Marquage CESKU #2220061Part Number #170M1418UNSPSC39121625UPC00051712216845
Image provided may only be a representation of final product and may include optional equipment
