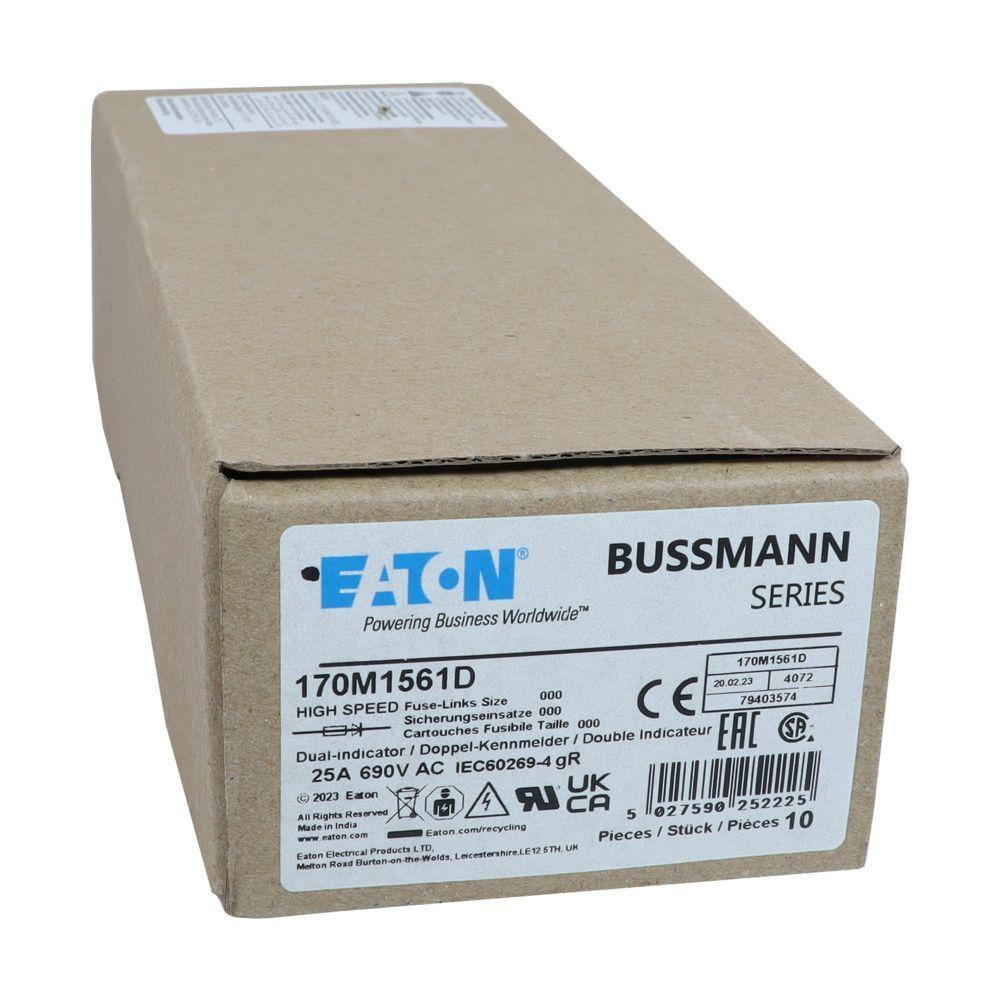

Bussmann 170M1561D High Speed Fuse
Part Number # 170M1561D
SKU # 2345027
$181.57 / Each
Bussmann 170M1561D Key Features
Brand: Bussmann
Part Number # 170M1561D
SKU #2345027
Amperage Rating: 25, 25 A
Body Type: Square
Class: gR
Frequency Rating: 45 to 1000, 45 to 1000 Hz
Indicating/Non-Indicating: Non-Indicating
Interrupt Rating: 200, 200 kA
Series: 170M
Terminal Type: Blade, Din 43-620 Blade End
Type: Square Body Type T, Type T
Voltage Rating: 690, 690 V, 690/700
Material: Ceramic
Mounting type: Stud
Manufacturer Name: Eaton
UNSPSC: 39121625
UPC: 00051712334723
$181.57 / Each
Bussmann 170M1561D High Speed Fuse
Brand: Bussmann
Part Number: 170M1561D
Bussmann High Speed Fuse, Square Body Type T, Series: 170M, Non-Indicating, 25 A, 690 V, 200 kA Interrupt, Class: gR, 45 to 1000 Hz Frequency, Din 43-620 Blade End Terminal, Stud Mounting, Square Body, Dual Element, Ceramic, 79 mm L x 21 mm W x 48 mm H Body
Additional Description: BUSS-170M1561D FUSE 25A 690V gR DIN 000 HSDNH
Catalog Description: Fuse-link, high speed, 25 A, AC 690 V, DIN 000, gR, DIN, IEC, dual indicator, live gripping lugs
170M1561D Application
Critical Power, Electrical Assemblies, Panels and EOEMs, Industrial Facilities and Factory Facilities, Safety and Security Systems, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starter Applications170M1561D Item Features
- Excellent DC performance
- Low arc voltage and low energy let-through
- Low wattage loss
- Superior cycling capability
- Square body DIN 43620 blade high speed fuses with dual indicator system one indicator in the fuse body and another one in the metallic end plate
- Interchangeable with existing high speed DIN 43620 fuses for the protection of UPS, soft starters, solid state relays, variable speed drives, rectifiers and inverters
- Low arc voltage, excellent DC performance, superior cycling capability, designated size 00
- https://www.youtube.com/watch?v=YMvqUyoETXk
170M1561D Standards
CE Marking|IEC 60269 Part 4|IEC Certified|RoHS Compliant|UL Listed File No. E125085|UL ListedSKU #2345027Part Number #170M1561DUNSPSC39121625UPC00051712334723
