Part Number # 170M1563D
SKU # 2277850
Image provided may only be a representation of
final product and may include optional equipment

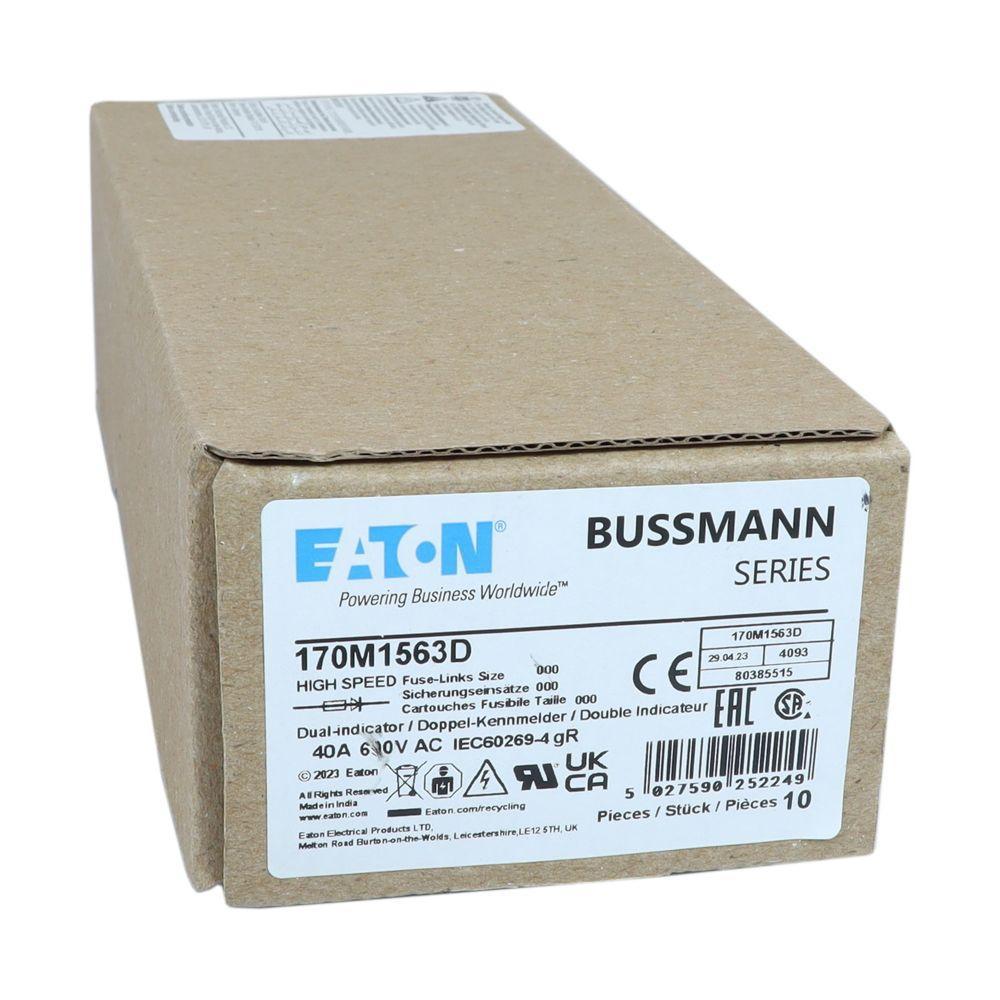

170M1563D
Bussmann 170M1563D Semiconductor Fuse
Part Number # 170M1563D
SKU # 2277850
Bussmann 170M1563D Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | 170M1563D |
| SKU #: | 2277850 |
| Amperage Rating: | 40, 40 A |
| Body Type: | Square |
| Class: | Class gR, gR |
| Indicating/Non-Indicating: | Non-Indicating |
| Interrupt Rating: | 200, 200 kA |
| Series: | 170M |
| Terminal Type: | Din 43-620 Blade End |
| Type: | Semi-Conductor |
| Mounting type: | DIN 43 620 Blade |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121625 |
| UPC: | 00051712334747 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann 170M1563D Semiconductor Fuse
Brand: Bussmann
Part Number: 170M1563D
Bussmann High Speed Fuse, Semi-Conductor, Series: 170M, Non-Indicating, 40 A, 690 V, 200 kA Interrupt, Class: gR, Din 43-620 Blade End Terminal, DIN 43 620 Blade Mounting, Square Body, 79 mm L x 21 mm W x 48 mm H Body
Additional Description: BUSS-170M1563D (N) FUSE 40A 690V gR DIN 000 HSDNH NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Fuse-link, high speed, 40 A, AC 690 V, DIN 000, gR, DIN, IEC, dual indicator, live gripping lugs
170M1563D Application
Critical Power, Electrical Assemblies, Panels and EOEMs, Industrial Facilities and Factory Facilities, Safety and Security Systems, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starter Applications170M1563D Item Features
- Low arc voltage
- Excellent DC performance
- Superior cycling capability
- Designated size 00
- 8.5 W power loss
- https://www.youtube.com/watch?v=YMvqUyoETXk
170M1563D Standards
IEC Rated ,UL Recognized ,UL Recognized ,IEC-Einstufung ,IEC nominaal ,UL Recognized ,Classificazione IEC ,UL Recognized ,UL Recognized ,Zgodność z IEC ,UL Recognized ,Parametry dle IEC ,Homologué CEI ,Reconnu UL,CE Marked,RoHS Compliant,CE-Kennzeichnung,RoHS-konform,RoHS-compliant,CE-markering,Con marchio CE,Conforme a RoHS,Uzyskano oznaczenie CE,Zgodny z wymogami RoHS,Splňuje požadavky RoHS,Opatřeno značkou CE,Marquage CE,Conformité RoHSSKU #2277850Part Number #170M1563DUNSPSC39121625UPC00051712334747
