170M1565D

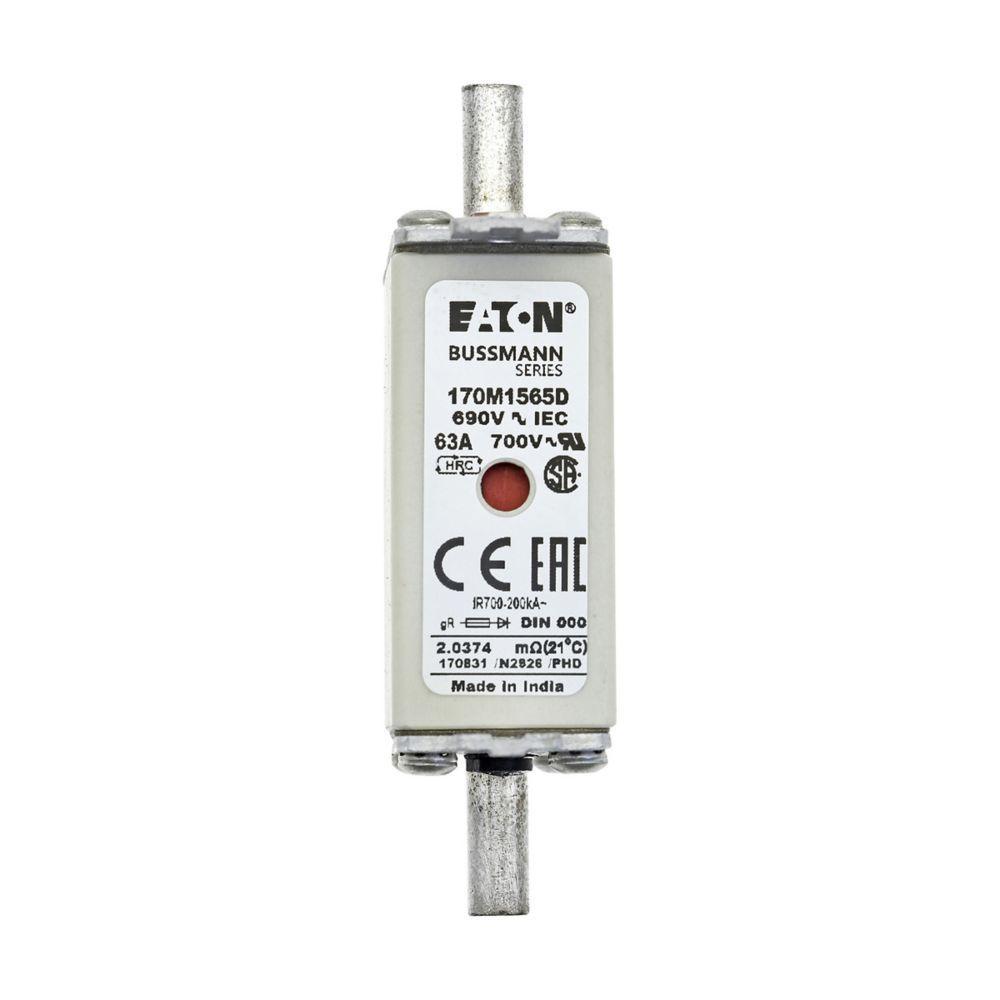

Bussmann 170M1565D High Speed Fuse
Part Number # 170M1565D
SKU # 2277849
$184.81 / Each
Typical price:$375.82 / Each
Bussmann 170M1565D Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | 170M1565D |
| SKU #: | 2277849 |
| Amperage Rating: | 63, 63 A |
| Body Type: | Square |
| Class: | gR |
| Frequency Rating: | 45 to 1000, 45 to 1000 Hz |
| Indicating/Non-Indicating: | Non-Indicating |
| Interrupt Rating: | 200, 200 kA |
| Series: | 170M |
| Terminal Type: | Blade, Din 43-620 Blade End |
| Type: | Square Body Type T, Type T |
| Material: | Ceramic |
| Mounting type: | Stud |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121625 |
| UPC: | 00051712334778 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$184.81 / Each
Typical price:$375.82 / Each
Quantity:
- Bussmann High Speed Fuse, Square Body Type T, Series: 170M, Non-Indicating, 63 A, 690 V, 200 kA Interrupt, Class: gR, 45 to 1000 Hz Frequency, Din 43-620 Blade End Terminal, Stud Mounting, Square Body, Dual Element, Ceramic, 79 mm L x 21 mm W x 48 mm H Body
170M1565D Application
Critical Power, Electrical Assemblies, Panels and EOEMs, Industrial Facilities and Factory Facilities, Safety and Security Systems, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starter Applications170M1565D Item Features
- Excellent DC performance
- Low arc voltage and low energy let-through
- Low wattage loss
- Superior cycling capability
- Square body DIN 43620 blade high speed fuses with dual indicator system one indicator in the fuse body and another one in the metallic end plate
- Interchangeable with existing high speed DIN 43620 fuses for the protection of UPS, soft starters, solid state relays, variable speed drives, rectifiers and inverters
- Low arc voltage, excellent DC performance, superior cycling capability, designated size 00
- https://www.youtube.com/watch?v=YMvqUyoETXk
170M1565D Standards
IEC Rated ,UL Recognized ,IEC-Einstufung ,UL Recognized ,UL Recognized ,Classificazione IEC ,UL Recognized ,IEC nominaal ,UL Recognized ,Zgodność z IEC ,Parametry dle IEC ,UL Recognized ,UL Recognized ,Clasificación IEC ,IEC Sınıfı ,UL Recognized,RoHS Compliant,CE Marked,RoHS-konform,CE-Kennzeichnung,Con marchio CE,Conforme a RoHS,RoHS-compliant,CE-markering,Uzyskano oznaczenie CE,Zgodny z wymogami RoHS,Splňuje požadavky RoHS,Opatřeno značkou CE,Con marca CE,Compatible con RoHS,CE İşaretli,RoHS UyumluSKU #2277849Part Number #170M1565DUNSPSC39121625UPC00051712334778
