Bussmann 170M1567D High Speed Fuse
Part Number # 170M1567D
SKU # 2344840
Bussmann 170M1567D Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | 170M1567D |
| SKU #: | 2344840 |
| Body Type: | Square Blade |
| Terminal Type: | Din 43-620 Blade End |
| Type: | Square Body Type T |
| UNSPSC: | 39121625 |
| UPC: | 00051712334860 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann 170M1567D High Speed Fuse
Brand: Bussmann
Part Number: 170M1567D
Bussmann High Speed Fuse, Square Body Type T, Series: 170M, Indicating/Non-Indicating: Non-Indicating, 100 A, 690 VAC, 200 kA Interrupt, Class: aR, 45 to 1000 Hz, Din 43-620 Blade End Terminal, Stud Mount, Square Body, Dual Element, Ceramic, 79 mm L x 21 mm W x 48 mm H Body Size
Additional Description: BUSS-170M1567D (N) FUSE 100A 690V aR DIN 000 HSDNH NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Bussmann series high speed square body fuse, 690V (IEC), 100A, 200 kAIC, Combination fuse status indicator, Fuse, Din 43-620 blade end X Din 43-620 blade end, Class aR
170M1567D Application
Critical Power, Electrical Assemblies, Panels and EOEMs, Industrial Facilities and Factory Facilities, Safety and Security Systems, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starter Applications170M1567D Item Features
- Excellent DC performance
- Low arc voltage and low energy let-through
- Low wattage loss
- Superior cycling capability
- Square body DIN 43620 blade high speed fuses with dual indicator system one indicator in the fuse body and another one in the metallic end plate
- Interchangeable with existing high speed DIN 43620 fuses for the protection of UPS, soft starters, solid state relays, variable speed drives, rectifiers and inverters
- Low arc voltage, excellent DC performance, superior cycling capability, designated size 000
- https://www.youtube.com/watch?v=YMvqUyoETXk
170M1567D Standards
CE Marking|IEC 60269 Part 4|UL Listed File No. E125085|UL ListedSKU #2344840Part Number #170M1567DUNSPSC39121625UPC00051712334860

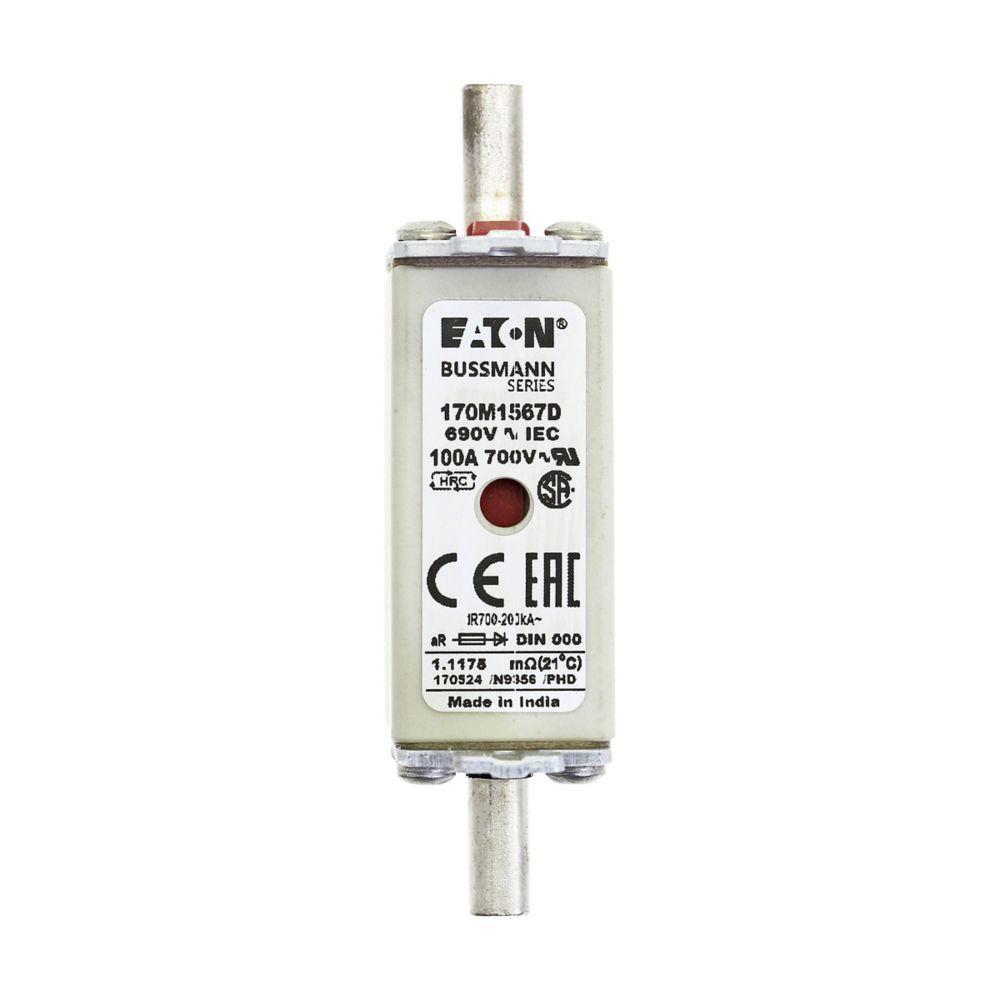

Image provided may only be a representation of final product and may include optional equipment
