Part Number # 170M1571D
SKU # 2305916
170M1571D

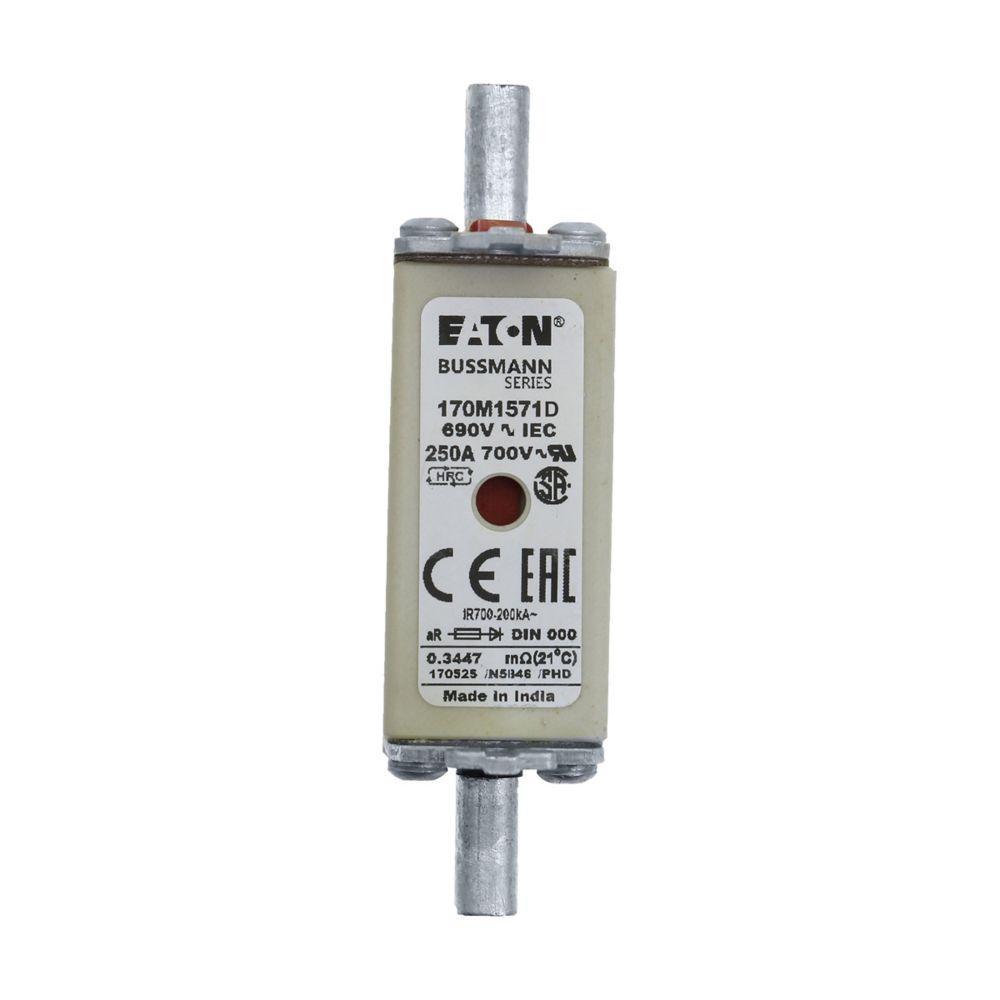

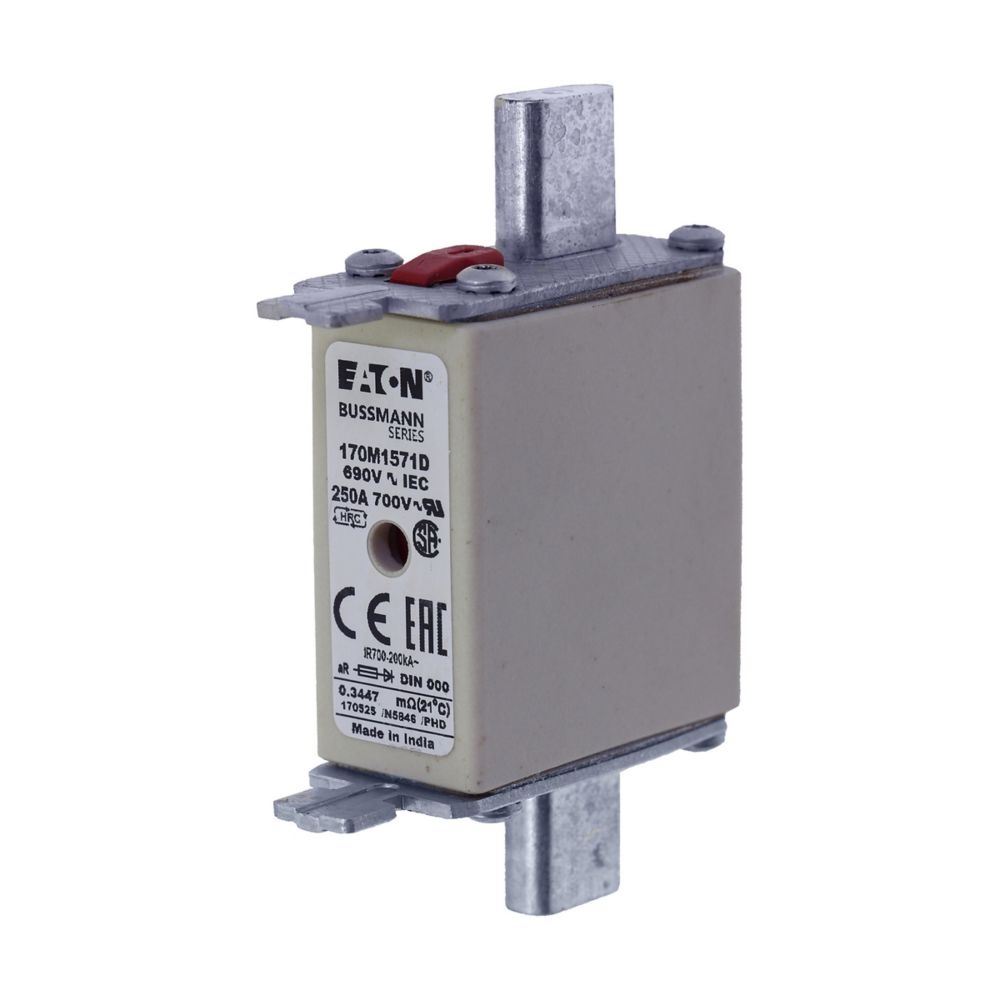

Bussmann 170M1571D Semiconductor Fuse
Part Number # 170M1571D
SKU # 2305916
Bussmann 170M1571D Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | 170M1571D |
| SKU #: | 2305916 |
| Amperage Rating: | 250, 250 A |
| Body Type: | Square |
| Class: | AR, Class AR |
| Interrupt Rating: | 200 kA |
| Series: | 170M |
| Terminal Type: | Din 43-620 Blade End |
| Type: | Semi-Conductor |
| Mounting type: | DIN 43 620 Blade |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121625 |
| UPC: | 00051712334921 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann 170M1571D Semiconductor Fuse
Brand: Bussmann
Part Number: 170M1571D
Bussmann High Speed Fuse, Semi-Conductor, Series: 170M, 250 A, 690 V, 200 kA Interrupt, Class: aR, Din 43-620 Blade End Terminal, DIN 43 620 Blade Mounting, Square Body, 79 mm L x 21 mm W x 48 mm H Body
Additional Description: BUSS-170M1571D (N) FUSE 250A 690V aR DIN 000 HSDNH NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Bussmann series high speed square body fuse, 690V (IEC), 250A, 200 kAIC, Combination fuse status indicator, Fuse, Din 43-620 blade end X Din 43-620 blade end, Class aR
170M1571D Application
Critical Power, Electrical Assemblies, Panels and EOEMs, Industrial Facilities and Factory Facilities, Safety and Security Systems, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starter Applications170M1571D Item Features
- Low arc voltage
- Excellent DC performance
- Superior cycling capability
- Designated size 000
- https://www.youtube.com/watch?v=YMvqUyoETXk
170M1571D Standards
IEC Rated ,UL Recognized ,UL Recognized ,IEC-Einstufung ,UL Recognized ,Classificazione IEC ,IEC nominaal ,UL Recognized ,UL Recognized ,Zgodność z IEC ,Parametry dle IEC ,UL Recognized ,UL Recognized ,Clasificación IEC ,Reconnu UL ,Homologué CEI,CE Marked,RoHS Compliant,CE-Kennzeichnung,RoHS-konform,Conforme a RoHS,Con marchio CE,RoHS-compliant,CE-markering,Uzyskano oznaczenie CE,Zgodny z wymogami RoHS,Splňuje požadavky RoHS,Opatřeno značkou CE,Compatible con RoHS,Con marca CE,Marquage CE,Conformité RoHSSKU #2305916Part Number #170M1571DUNSPSC39121625UPC00051712334921
Image provided may only be a representation of final product and may include optional equipment
