Part Number # 170M2611
SKU # 2197048
170M2611

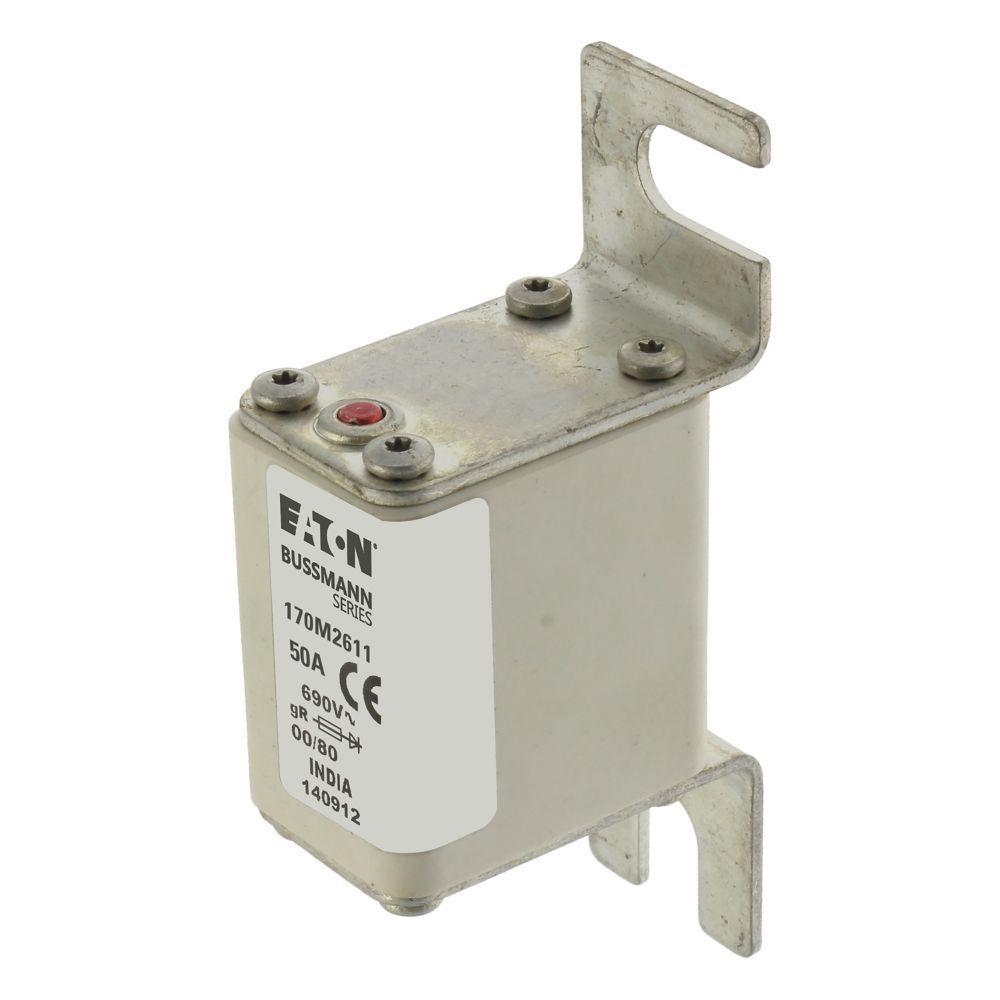

Bussmann 170M2611 High Speed Fuse
Part Number # 170M2611
SKU # 2197048
Bussmann 170M2611 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | 170M2611 |
| SKU #: | 2197048 |
| Amperage Rating: | 50, 50 A |
| Body Type: | Square |
| Class: | gR |
| Frequency Rating: | 45 to 1000, 45 to 1000 Hz |
| Indicating/Non-Indicating: | Non-Indicating |
| Interrupt Rating: | 200, 200 kA |
| Series: | 170M |
| Terminal Type: | Blade, Blade End |
| Type: | Square Body Type T, Type 80 |
| Material: | Ceramic |
| Mounting type: | Busbar |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121625 |
| UPC: | 00051712254106 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann 170M2611 High Speed Fuse
Brand: Bussmann
Part Number: 170M2611
Bussmann High Speed Fuse, Square Body Type T, Series: 170M, Non-Indicating, 50 A, 690 V, 200 kA Interrupt, Class: gR, 45 to 1000 Hz Frequency, Blade End Terminal, Busbar Mounting, Square Body, Ceramic, 100 mm L x 30 mm W x 51 mm H Body
Additional Description: BUSS-170M2611 (N) FUSE 50A 690V 00/80 GR NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Bussmann series high speed square body fuse, 700V (UL), 690V (IEC), 50A, 200 kAIC, Top fuse status indicator, Fuse, Blade end X blade end, Class gR, DIN 43 620
170M2611 Application
Electrical Assemblies, Panels, EOEMs, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starters Applications, Safety and Security Systems, Industrial Facilities and Factories - Facility and Critical Power170M2611 Item Features
- Excellent DC performance
- Low arc voltage and low energy let-through
- Low wattage loss
- Superior cycling capability
- https://www.youtube.com/watch?v=YMvqUyoETXk
170M2611 Standards
IEC Rated ,UL Recognized ,IEC-Einstufung ,UL Recognized ,UL Recognized ,IEC nominaal ,Classificazione IEC ,UL Recognized ,Zgodność z IEC ,UL Recognized ,Parametry dle IEC ,UL Recognized ,Clasificación IEC ,UL Recognized ,Reconnu UL ,Homologué CEI,RoHS Compliant,CE Marked,CE-Kennzeichnung,RoHS-konform,RoHS-compliant,CE-markering,Con marchio CE,Conforme a RoHS,Uzyskano oznaczenie CE,Zgodny z wymogami RoHS,Splňuje požadavky RoHS,Opatřeno značkou CE,Compatible con RoHS,Con marca CE,Marquage CE,Conformité RoHSSKU #2197048Part Number #170M2611UNSPSC39121625UPC00051712254106
Image provided may only be a representation of final product and may include optional equipment
