Part Number # 170M2613
SKU # 2184030
170M2613

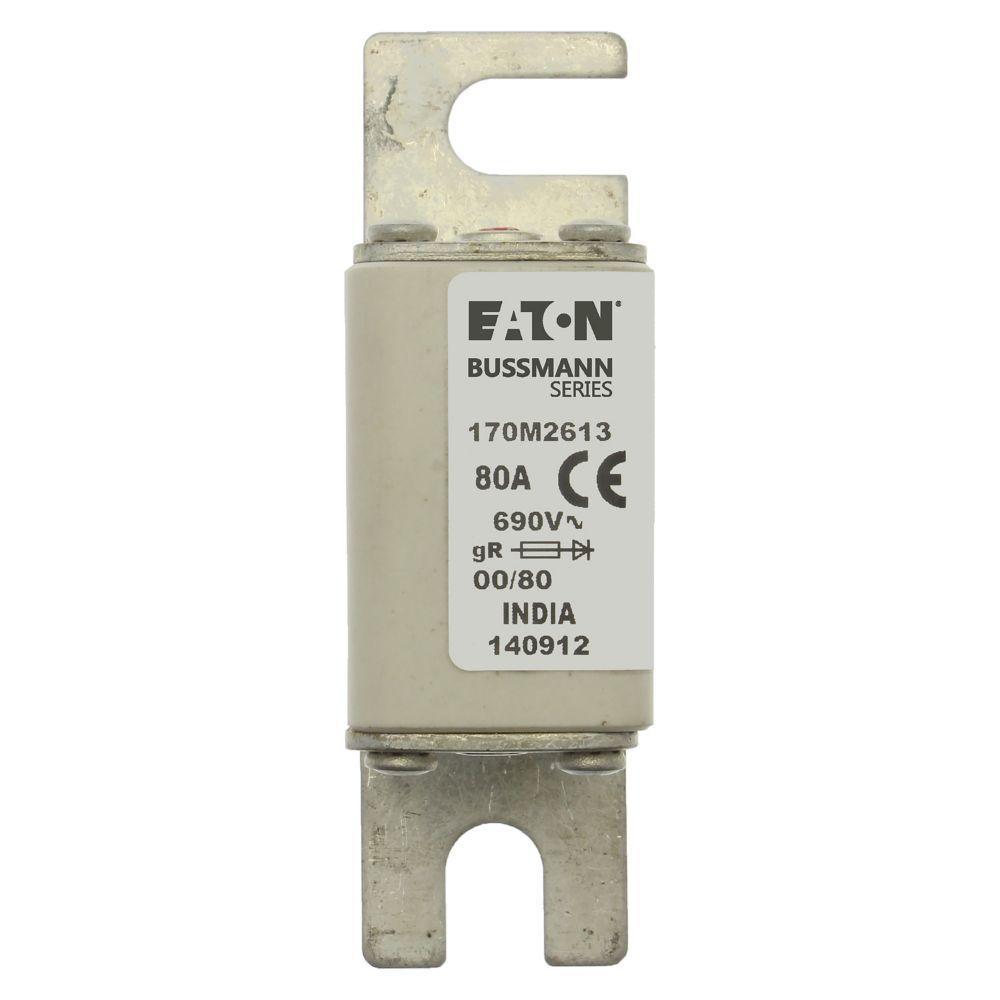

Bussmann 170M2613 High Speed Fuse
Part Number # 170M2613
SKU # 2184030
Bussmann 170M2613 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | 170M2613 |
| SKU #: | 2184030 |
| Amperage Rating: | 80, 80 A |
| Body Type: | Square |
| Class: | gR |
| Frequency Rating: | 45 to 1000, 45 to 1000 Hz |
| Indicating/Non-Indicating: | Non-Indicating |
| Interrupt Rating: | 200, 200 kA |
| Series: | 170M |
| Terminal Type: | Blade, Blade End |
| Type: | Square Body Type 80, Type 80 |
| Material: | Ceramic |
| Mounting type: | Busbar |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121625 |
| UPC: | 00051712254120 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann 170M2613 High Speed Fuse
Brand: Bussmann
Part Number: 170M2613
Bussmann High Speed Fuse, Square Body Type 80, Series: 170M, Non-Indicating, 80 A, 690 V, 200 kA Interrupt, Class: gR, 45 to 1000 Hz Frequency, Blade End Terminal, Busbar Mounting, Square Body, Ceramic, 100 mm L x 30 mm W x 51 mm H Body
Additional Description: BUSS-170M2613 (N) FUSE 80A 690V 00/80 GR NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Bussmann series high speed square body fuse, 700V (UL), 690V (IEC), 80A, 200 kAIC, Top fuse status indicator, Fuse, Blade end X blade end, Class gR, DIN 43 620
170M2613 Application
Critical Power, Electrical Assemblies, Panels and EOEMs, Industrial Facilities and Factory Facilities, Safety and Security Systems, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starter Applications170M2613 Item Features
- Excellent DC performance
- Low arc voltage and low energy let-through
- Low wattage loss
- Superior cycling capability
- https://www.youtube.com/watch?v=YMvqUyoETXk
170M2613 Standards
UL Recognized ,IEC Rated ,UL Recognized ,IEC-Einstufung ,IEC nominaal ,UL Recognized ,UL Recognized ,Classificazione IEC ,UL Recognized ,Zgodność z IEC ,Parametry dle IEC ,UL Recognized ,Clasificación IEC ,UL Recognized ,Homologué CEI ,Reconnu UL,CE Marked,RoHS Compliant,CE-Kennzeichnung,RoHS-konform,CE-markering,RoHS-compliant,Con marchio CE,Conforme a RoHS,Uzyskano oznaczenie CE,Zgodny z wymogami RoHS,Splňuje požadavky RoHS,Opatřeno značkou CE,Compatible con RoHS,Con marca CE,Conformité RoHS,Marquage CESKU #2184030Part Number #170M2613UNSPSC39121625UPC00051712254120
Image provided may only be a representation of final product and may include optional equipment
