Part Number # 170M2614
SKU # 2181088
170M2614
Bussmann 170M2614 Semiconductor Fuse
Part Number # 170M2614
SKU # 2181088
Bussmann 170M2614 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | 170M2614 |
| SKU #: | 2181088 |
| Amperage Rating: | 100, 100 A |
| Body Type: | Square |
| Class: | AR, Class AR |
| Indicating/Non-Indicating: | Non-Indicating |
| Interrupt Rating: | 200, 200 kA |
| Series: | 170M |
| Terminal Type: | Blade End |
| Type: | Semi-Conductor |
| Mounting type: | DIN 43 620 Blade, DIN 43-653 Stud |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121625 |
| UPC: | 00051712792349 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann 170M2614 Semiconductor Fuse
Brand: Bussmann
Part Number: 170M2614

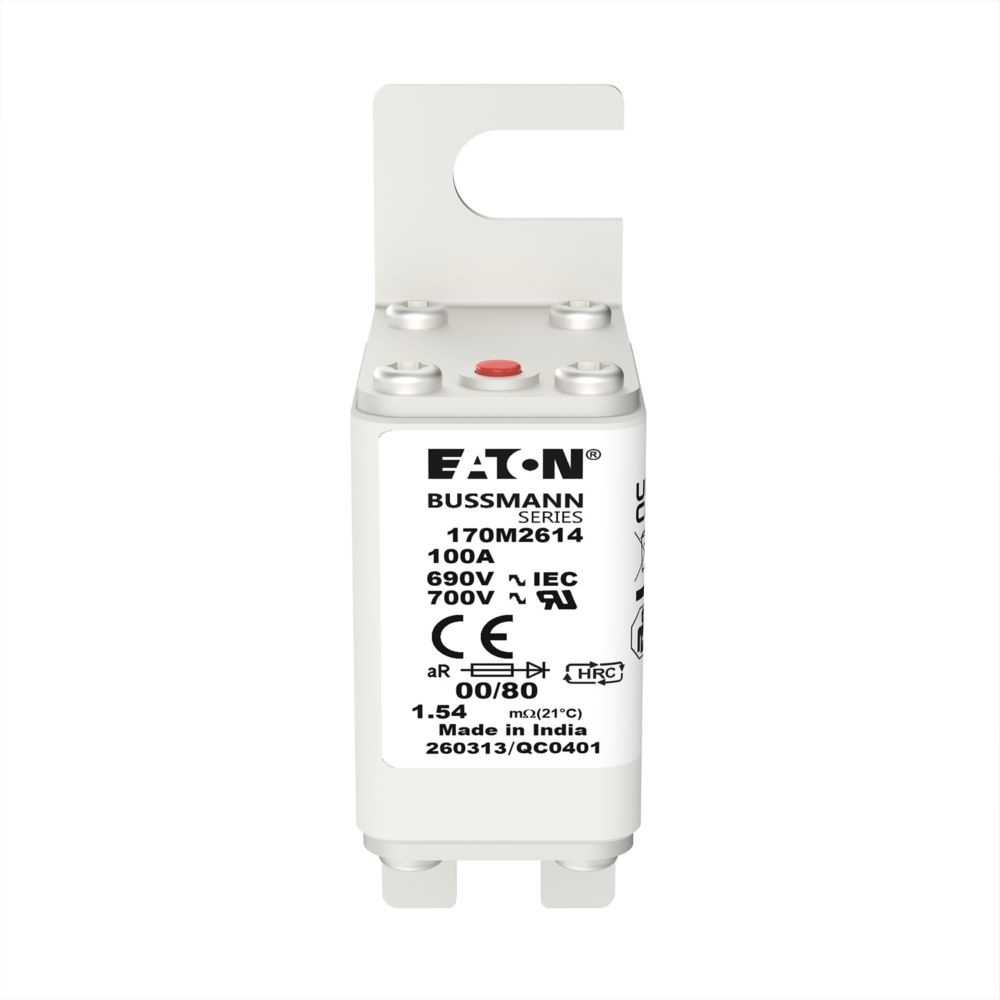

Bussmann High Speed Fuse, Semi-Conductor, Series: 170M, Non-Indicating, 100 A, 690 V, 200 kA Interrupt, Class: aR, Blade End Terminal, DIN 43-653 Stud Mounting, Square Body, 100 mm L x 30 mm W x 51 mm H Body
Additional Description: BUSS-170M2614 (N) FUSE 100A 690V 00/80 AR UR NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Bussmann series high speed square body fuse, 690 V (IEC), 700 V (UL), 100 A, Fuse size: 00, Top fuse status indicator, DIN 43653, /80 Visual indicator
170M2614 Application
Electrical Assemblies, Panels, EOEMs, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starters Applications, Safety and Security Systems, Industrial Facilities and Factories - Facility and Critical Power170M2614 Item Features
- Low arc voltage
- Excellent DC performance
- Superior cycling capability
- Designated size 00
- 20 W power loss
- https://www.youtube.com/watch?v=YMvqUyoETXk
170M2614 Standards
UL Recognized ,IEC Rated ,IEC-Einstufung ,UL Recognized ,IEC nominaal ,UL Recognized ,UL Recognized ,Classificazione IEC ,Zgodność z IEC ,UL Recognized ,UL Recognized ,Parametry dle IEC ,Homologué CEI ,Reconnu UL,CE Marked,RoHS Compliant,CE-Kennzeichnung,RoHS-konform,CE-markering,RoHS-compliant,Con marchio CE,Conforme a RoHS,Uzyskano oznaczenie CE,Zgodny z wymogami RoHS,Splňuje požadavky RoHS,Opatřeno značkou CE,Marquage CE,Conformité RoHSSKU #2181088Part Number #170M2614UNSPSC39121625UPC00051712792349
