Part Number # 170M2616
SKU # 936625
Image Disclaimers Message
170M2616

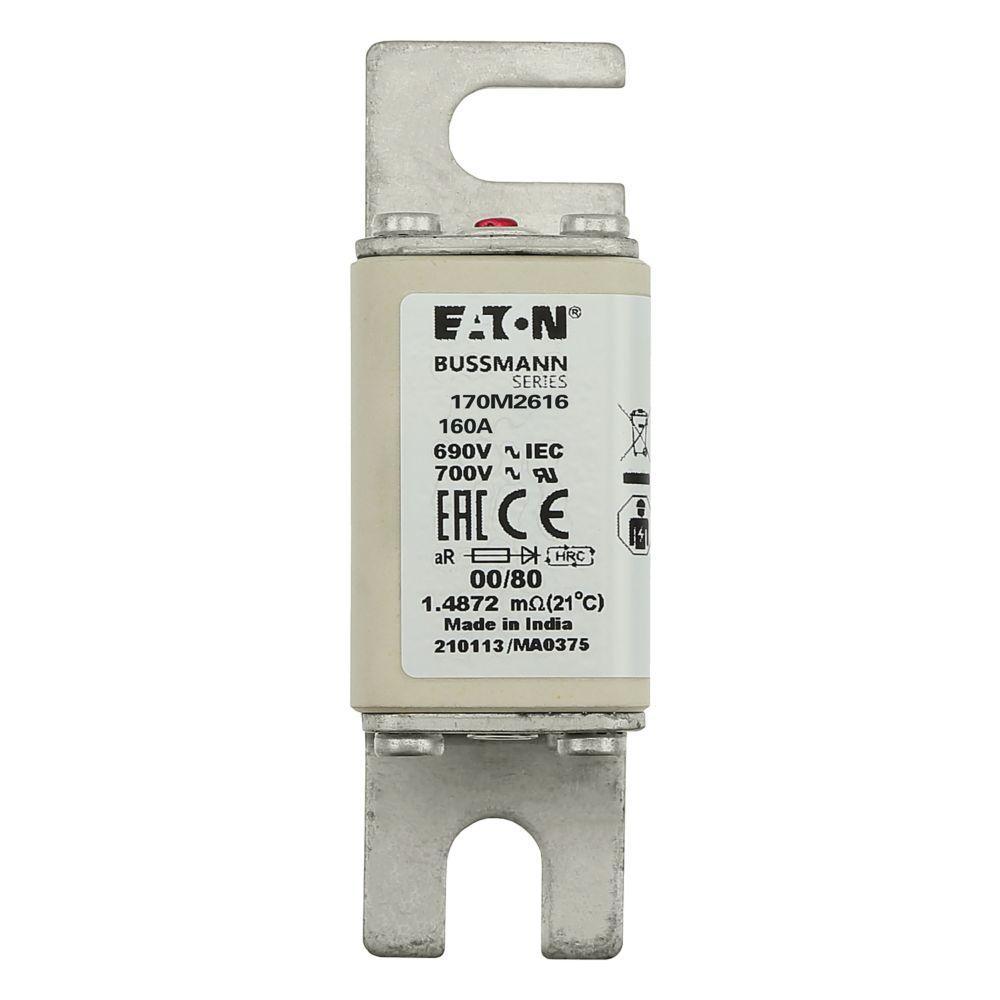

Bussmann 170M2616 High Speed Fuse
Part Number # 170M2616
SKU # 936625
$1402.20 / 6Each
Typical price:$2851.38 / Each
Bussmann 170M2616 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | 170M2616 |
| SKU #: | 936625 |
| Amperage Rating: | 160 A |
| Body Type: | Square |
| Class: | AR |
| Frequency Rating: | 45 to 1000 Hz |
| Indicating/Non-Indicating: | Indicating |
| Interrupt Rating: | 200 kA |
| Series: | 170M |
| Terminal Type: | Blade End |
| Type: | Square Body Type 80 |
| Material: | Ceramic |
| Mounting type: | DIN 43-653 Stud |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121625 |
| UPC: | 00051712254144 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1402.20 / 6Each
Typical price:$2851.38 / Each
Quantity:
- Bussmann High Speed Fuse, Square Body Type 80, Series: 170M, Indicating, 160 A, 690 V, 200 kA Interrupt, Class: aR, 45 to 1000 Hz Frequency, Blade End Terminal, DIN 43-653 Stud Mounting, Square Body, Ceramic, 100 mm L x 30 mm W x 51 mm H Body
170M2616 Application
Critical Power, Electrical Assemblies, Panels and EOEMs, Industrial Facilities and Factory Facilities, Safety and Security Systems, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starter Applications170M2616 Item Features
- Excellent DC performance
- Low arc voltage and low energy let-through
- Low wattage loss
- Superior cycling capability
- Low arc voltage, excellent DC performance, superior cycling capability, designated size 00
- https://www.youtube.com/watch?v=YMvqUyoETXk
170M2616 Standards
IEC Rated ,UL Recognized ,IEC-Einstufung ,UL Recognized ,IEC nominaal ,UL Recognized ,Classificazione IEC ,UL Recognized ,Zgodność z IEC ,UL Recognized ,UL Recognized ,Parametry dle IEC ,Homologué CEI ,Reconnu UL,RoHS Compliant,CE Marked,RoHS-konform,CE-Kennzeichnung,RoHS-compliant,CE-markering,Con marchio CE,Conforme a RoHS,Uzyskano oznaczenie CE,Zgodny z wymogami RoHS,Splňuje požadavky RoHS,Opatřeno značkou CE,Marquage CE,Conformité RoHSSKU #936625Part Number #170M2616UNSPSC39121625UPC00051712254144
