Part Number # 170M2665
SKU # 2304847
170M2665

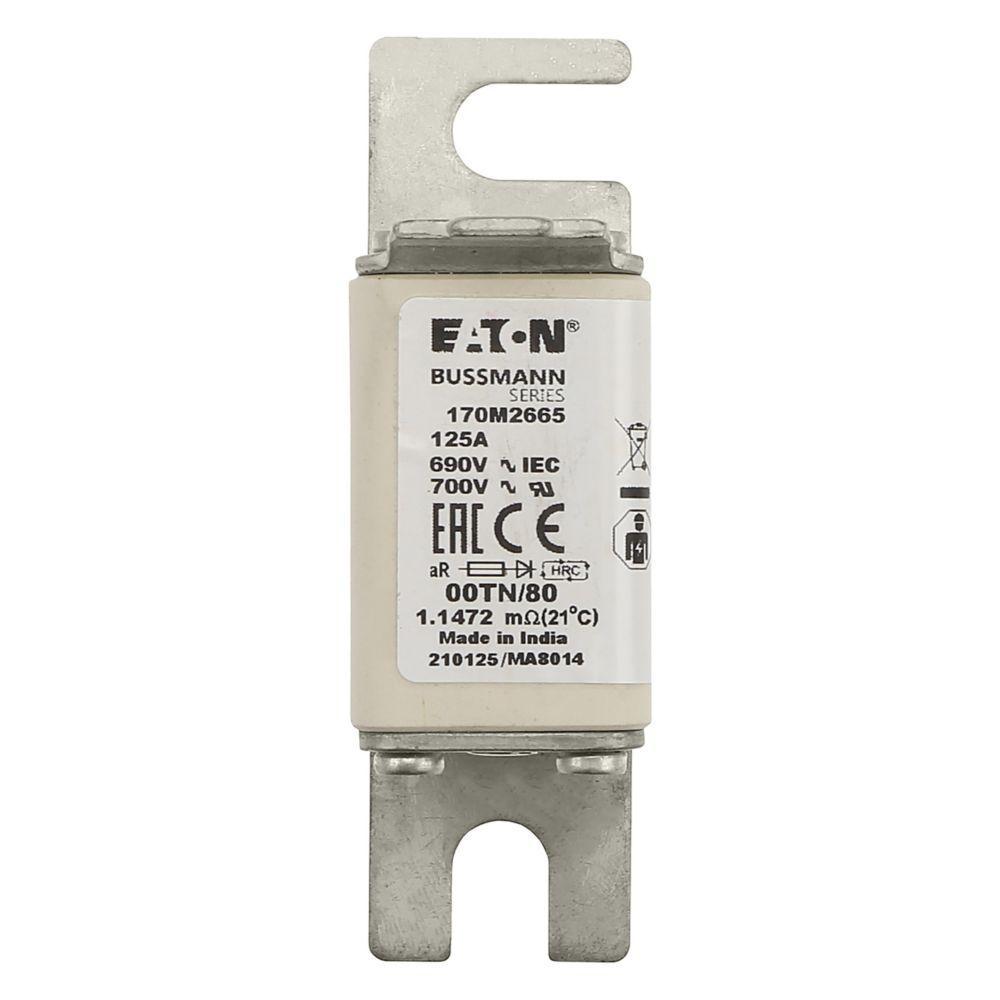

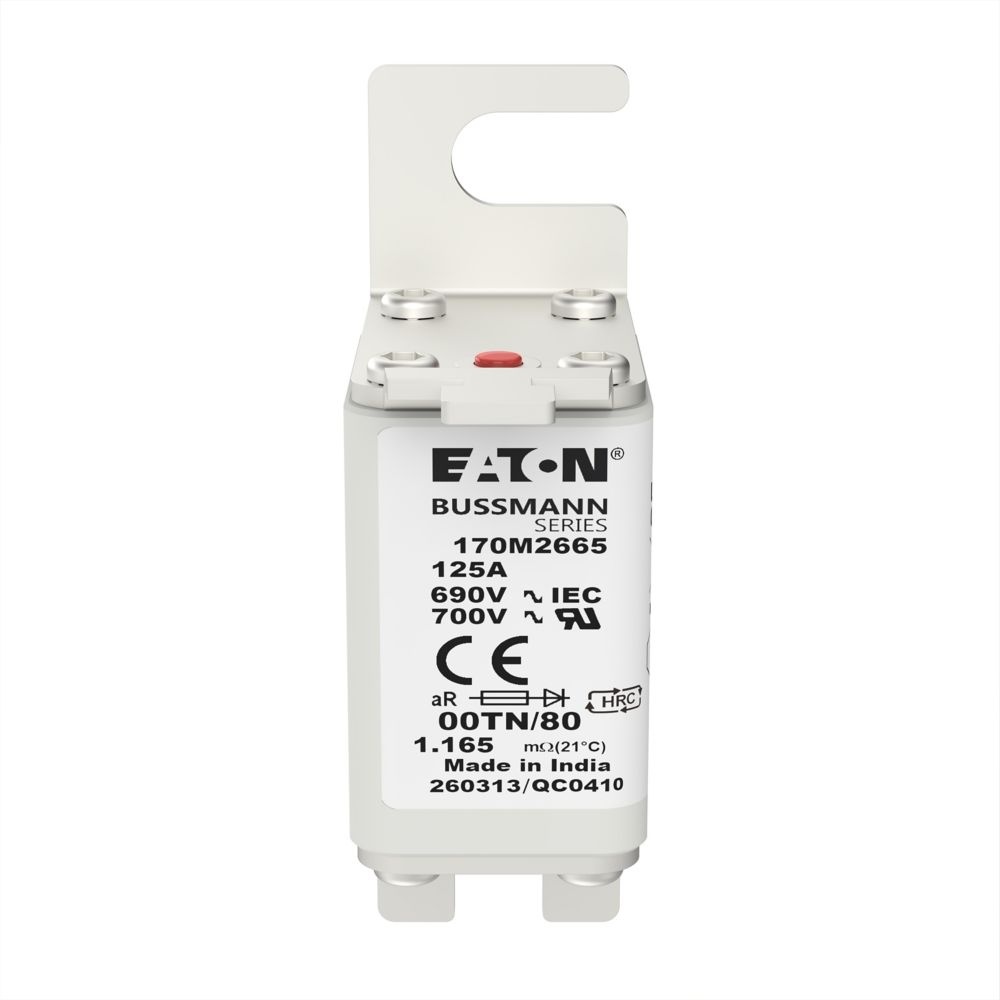

Bussmann 170M2665 High Speed Fuse
Part Number # 170M2665
SKU # 2304847
Bussmann 170M2665 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | 170M2665 |
| SKU #: | 2304847 |
| Amperage Rating: | 125 A |
| Body Type: | Square |
| Class: | AR |
| Frequency Rating: | 45 to 1000, 45 to 1000 Hz |
| Indicating/Non-Indicating: | Non-Indicating |
| Interrupt Rating: | 200, 200 kA |
| Series: | 170M |
| Terminal Type: | Blade, Blade End |
| Type: | Type TN/80/T |
| Material: | Ceramic |
| Mounting type: | DIN 43 620, Stud |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121625 |
| UPC: | 00051712254236 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann 170M2665 High Speed Fuse
Brand: Bussmann
Part Number: 170M2665
Bussmann High Speed Fuse, Type TN/80/T, Series: 170M, Non-Indicating, 125 A, 690 V, 200 kA Interrupt, Class: aR, 45 to 1000 Hz Frequency, Blade End Terminal, DIN 43 620 Mounting, Square Body, Ceramic, 100 mm L x 30 mm W x 51 mm H Body
Additional Description: BUSS-170M2665 (N) FUSE 125A 690V 00TN/80 AR UR NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Fuse-link, high speed, 125 A, AC 690 V, DIN 00, gR, DIN, IEC, single indicator, live gripping lugs
170M2665 Application
Electrical Assemblies, Panels, EOEMs, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starters Applications, Safety and Security Systems, Industrial Facilities and Factories - Facility and Critical Power170M2665 Item Features
- Excellent DC performance
- Low arc voltage and low energy let-through
- Low wattage loss
- Superior cycling capability
- Designated size 00
- https://www.youtube.com/watch?v=YMvqUyoETXk
170M2665 Standards
UL Recognized ,IEC Rated ,IEC-Einstufung ,UL Recognized ,UL Recognized ,Classificazione IEC ,UL Recognized ,IEC nominaal ,Zgodność z IEC ,UL Recognized ,Parametry dle IEC ,UL Recognized ,Reconnu UL ,Homologué CEI,RoHS Compliant,CE Marked,CE-Kennzeichnung,RoHS-konform,Conforme a RoHS,Con marchio CE,CE-markering,RoHS-compliant,Uzyskano oznaczenie CE,Zgodny z wymogami RoHS,Splňuje požadavky RoHS,Opatřeno značkou CE,Marquage CE,Conformité RoHSSKU #2304847Part Number #170M2665UNSPSC39121625UPC00051712254236
Image provided may only be a representation of final product and may include optional equipment
