Part Number # 170M2666
SKU # 2334238
Image provided may only be a representation of
final product and may include optional equipment
170M2666

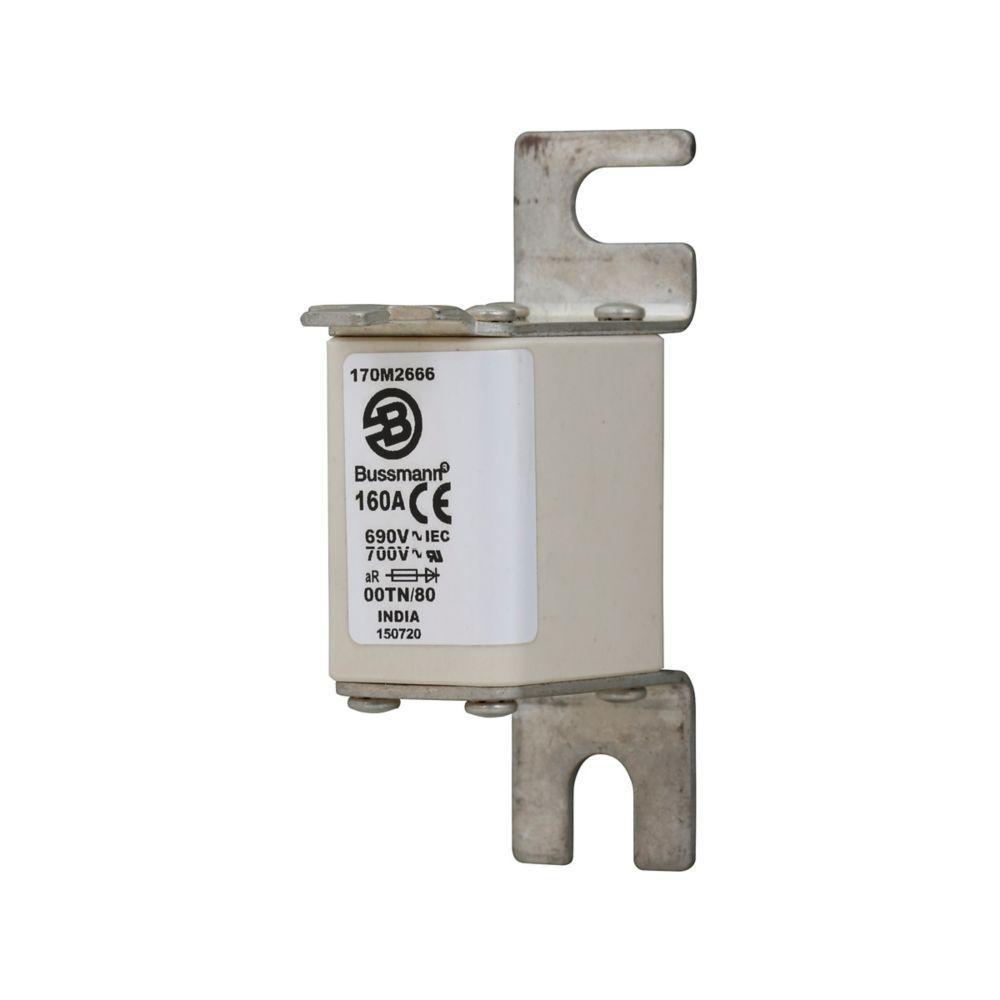

Bussmann 170M2666 High Speed Fuse
Part Number # 170M2666
SKU # 2334238
Bussmann 170M2666 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | 170M2666 |
| SKU #: | 2334238 |
| Amperage Rating: | 160, 160 A |
| Body Type: | Square |
| Class: | AR |
| Frequency Rating: | 45 to 1000, 45 to 1000 Hz |
| Indicating/Non-Indicating: | Non-Indicating |
| Interrupt Rating: | 200, 200 kA |
| Series: | 170M |
| Terminal Type: | Blade, Blade End |
| Type: | Type TN/80/T |
| Material: | Ceramic |
| Mounting type: | DIN 43-653 Stud, Stud |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121625 |
| UPC: | 00051712254243 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann 170M2666 High Speed Fuse
Brand: Bussmann
Part Number: 170M2666
Bussmann High Speed Fuse, Type TN/80/T, Series: 170M, Non-Indicating, 160 A, 690 V, 200 kA Interrupt, Class: aR, 45 to 1000 Hz Frequency, Blade End Terminal, DIN 43-653 Stud Mounting, Square Body, Ceramic, 100 mm L x 30 mm W x 51 mm H Body
Additional Description: BUSS-170M2666 (N) FUSE 160A 690V 00TN/80 AR UR NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Fuse-link, high speed, 160 A, AC 690 V, DIN 00, aR, DIN, IEC, single indicator, live gripping lugs
170M2666 Application
Electrical Assemblies, Panels, EOEMs, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starters Applications, Safety and Security Systems, Industrial Facilities and Factories - Facility and Critical Power170M2666 Item Features
- Excellent DC performance
- Low arc voltage and low energy let-through
- Low wattage loss
- Superior cycling capability
- Designated size 00
- https://www.youtube.com/watch?v=YMvqUyoETXk
170M2666 Standards
IEC Rated ,UL Recognized ,IEC-Einstufung ,UL Recognized ,UL Recognized ,Classificazione IEC ,IEC nominaal ,UL Recognized ,UL Recognized ,Zgodność z IEC ,Parametry dle IEC ,UL Recognized ,Reconnu UL ,Homologué CEI,CE Marked,RoHS Compliant,RoHS-konform,CE-Kennzeichnung,Con marchio CE,Conforme a RoHS,RoHS-compliant,CE-markering,Uzyskano oznaczenie CE,Zgodny z wymogami RoHS,Splňuje požadavky RoHS,Opatřeno značkou CE,Conformité RoHS,Marquage CESKU #2334238Part Number #170M2666UNSPSC39121625UPC00051712254243
