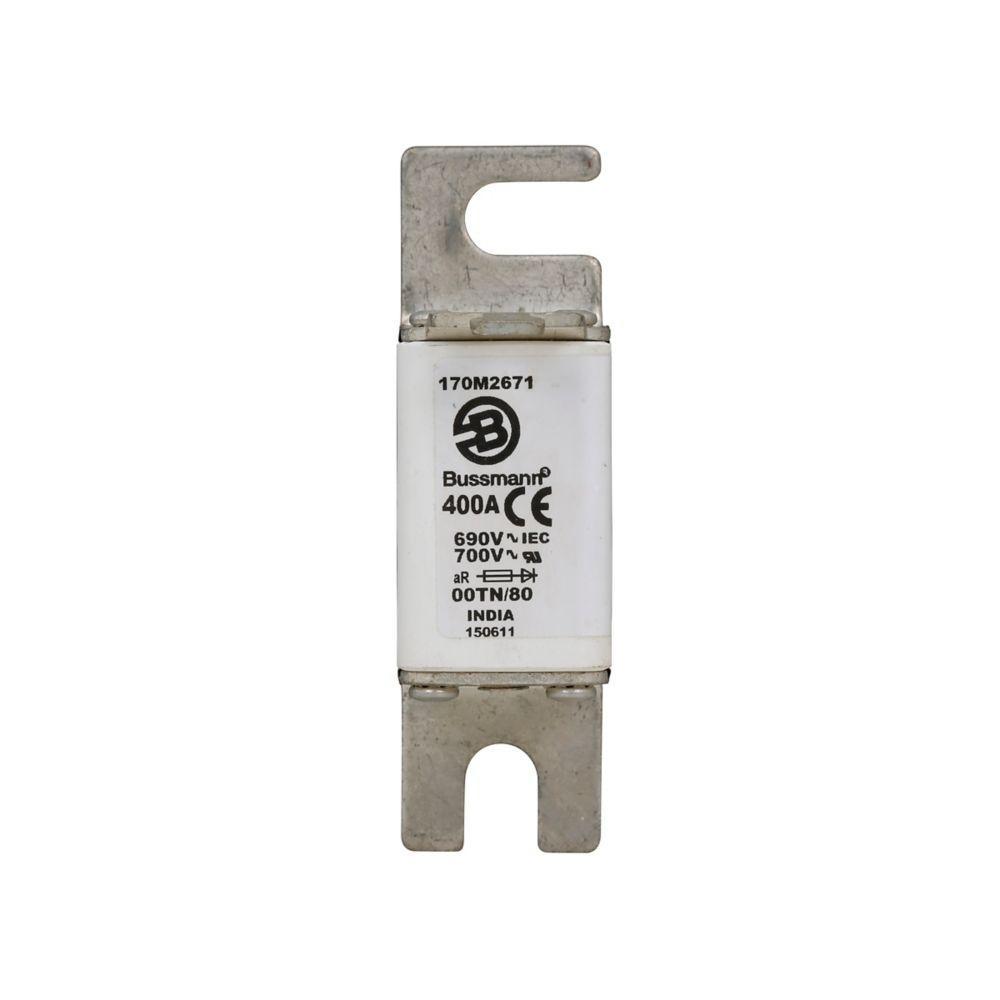

Bussmann 170M2671 High Speed Fuse
Part Number # 170M2671
SKU # 2264626
Bussmann 170M2671 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | 170M2671 |
| SKU #: | 2264626 |
| Amperage Rating: | 400, 400 A |
| Body Type: | Square |
| Class: | AR |
| Frequency Rating: | 45 to 1000, 45 to 1000 Hz |
| Indicating/Non-Indicating: | Non-Indicating |
| Interrupt Rating: | 200, 200 kA |
| Series: | 170M |
| Terminal Type: | Blade, Blade End |
| Type: | Type TN/80/T |
| Material: | Ceramic |
| Mounting type: | DIN 43-653 Stud, Stud |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121625 |
| UPC: | 00051712792141 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann 170M2671 High Speed Fuse
Brand: Bussmann
Part Number: 170M2671
Bussmann High Speed Fuse, Type TN/80/T, Series: 170M, Non-Indicating, 400 A, 690 V, 200 kA Interrupt, Class: aR, 45 to 1000 Hz Frequency, Blade End Terminal, DIN 43-653 Stud Mounting, Square Body, Ceramic, 100 mm L x 30 mm W x 51 mm H Body
Additional Description: BUSS-170M2671 (N) FUSE 400A 690V 00TN/80 AR UR NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Fuse-link, high speed, 400 A, AC 690 V, DIN 00, aR, DIN, IEC, single indicator, live gripping lugs
170M2671 Application
Electrical Assemblies, Panels, EOEMs, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starters Applications, Safety and Security Systems, Industrial Facilities and Factories - Facility and Critical Power170M2671 Item Features
- Excellent DC performance
- Low arc voltage and low energy let-through
- Low wattage loss
- Superior cycling capability
- Designated size 00
- https://www.youtube.com/watch?v=YMvqUyoETXk
170M2671 Standards
IEC Rated ,UL Recognized ,IEC-Einstufung ,UL Recognized ,UL Recognized ,Classificazione IEC ,IEC nominaal ,UL Recognized ,UL Recognized ,Zgodność z IEC ,UL Recognized ,Parametry dle IEC ,Reconnu UL ,Homologué CEI,CE Marked,RoHS Compliant,CE-Kennzeichnung,RoHS-konform,Con marchio CE,Conforme a RoHS,CE-markering,RoHS-compliant,Zgodny z wymogami RoHS,Uzyskano oznaczenie CE,Opatřeno značkou CE,Splňuje požadavky RoHS,Conformité RoHS,Marquage CESKU #2264626Part Number #170M2671UNSPSC39121625UPC00051712792141
