Part Number # 170M2701
SKU # 2454906
170M2701
Bussmann 170M2701
Part Number # 170M2701
SKU # 2454906
Bussmann 170M2701 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | 170M2701 |
| SKU #: | 2454906 |
| Amperage Rating: | 125 A |
| Body Type: | Square |
| Class: | gR |
| Indicating/Non-Indicating: | Non-Indicating |
| Interrupt Rating: | 200 kA |
| Series: | 170M |
| Terminal Type: | Blade End x Din 43-620 Blade End |
| Type: | Semi-Conductor |
| Mounting type: | DIN 43 620 |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121625 |
| UPC: | 00051712554435 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann 170M2701
Brand: Bussmann
Part Number: 170M2701

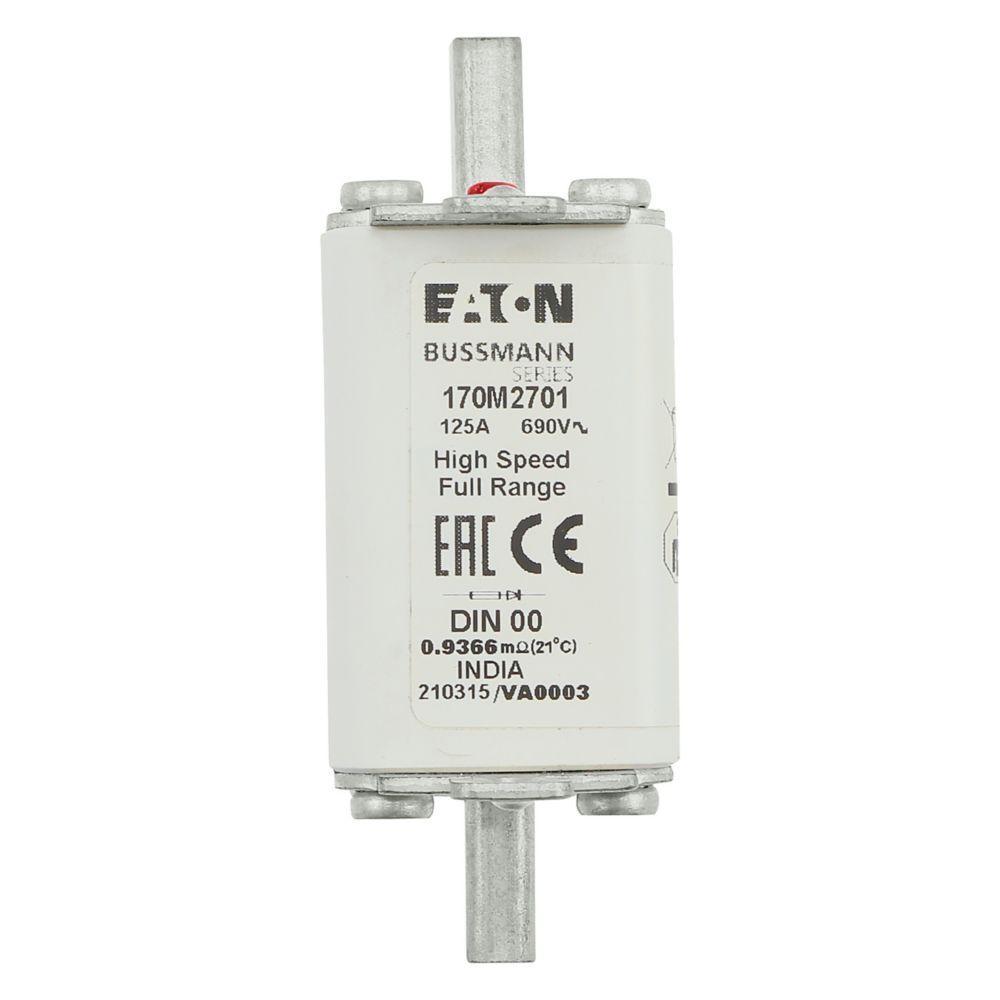

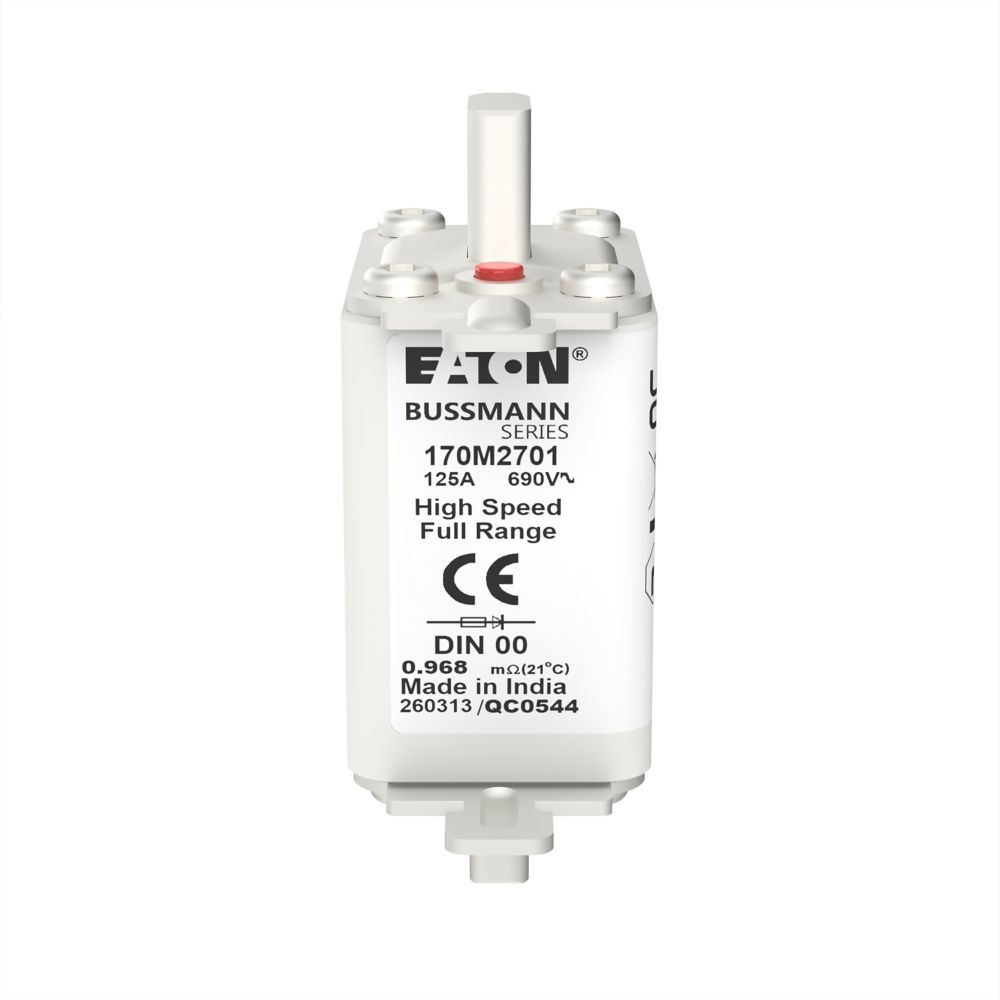

Bussmann High Speed Fuse, Semi-Conductor, Series: 170M, Non-Indicating, 125 A, 690 V, 200 kA Interrupt, Class: gR, Blade End x Din 43-620 Blade End Terminal, DIN 43 620 Mounting, Square Body, 78.5 mm L x 30 mm W x 60 mm H Body
Additional Description: BUSS-170M2701 (N) FUSE 125A 690V DIN 00 GR NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Bussmann series high speed square body fuse, 125 A, 690 V (IEC), Size 0, Top fuse status indicator
170M2701 Application
Electrical Assemblies, Panels, EOEMs, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starters Applications, Safety and Security Systems, Industrial Facilities and Factories - Facility and Critical Power170M2701 Item Features
- Low arc voltage
- Excellent DC performance
- Superior cycling capability
- Designated size 00
- 23 W power loss
- https://www.youtube.com/watch?v=YMvqUyoETXk
170M2701 Standards
IEC Rated ,UL Recognized ,UL Recognized ,IEC-Einstufung ,UL Recognized ,IEC nominaal ,Classificazione IEC ,UL Recognized ,UL Recognized ,Zgodność z IEC ,UL Recognized ,Parametry dle IEC ,UL Recognized ,Clasificación IEC ,Reconnu UL ,Homologué CEI,RoHS Compliant,CE Marked,RoHS-konform,CE-Kennzeichnung,CE-markering,RoHS-compliant,Conforme a RoHS,Con marchio CE,Uzyskano oznaczenie CE,Zgodny z wymogami RoHS,Opatřeno značkou CE,Splňuje požadavky RoHS,Compatible con RoHS,Con marca CE,Marquage CE,Conformité RoHSSKU #2454906Part Number #170M2701UNSPSC39121625UPC00051712554435
Image provided may only be a representation of final product and may include optional equipment
