Part Number # 170M2702
SKU # 2285572
170M2702
Bussmann 170M2702 Semiconductor Fuse
Part Number # 170M2702
SKU # 2285572
Bussmann 170M2702 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | 170M2702 |
| SKU #: | 2285572 |
| Amperage Rating: | 160, 160 A |
| Body Type: | Square |
| Class: | Class gR, gR |
| Indicating/Non-Indicating: | Indicating |
| Interrupt Rating: | 200, 200 kA |
| Series: | 170M |
| Terminal Type: | Blade End x Din 43-620 Blade End |
| Type: | Semi-Conductor |
| Mounting type: | DIN 43 620, DIN 43 620 Blade |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121625 |
| UPC: | 00051712236218 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.

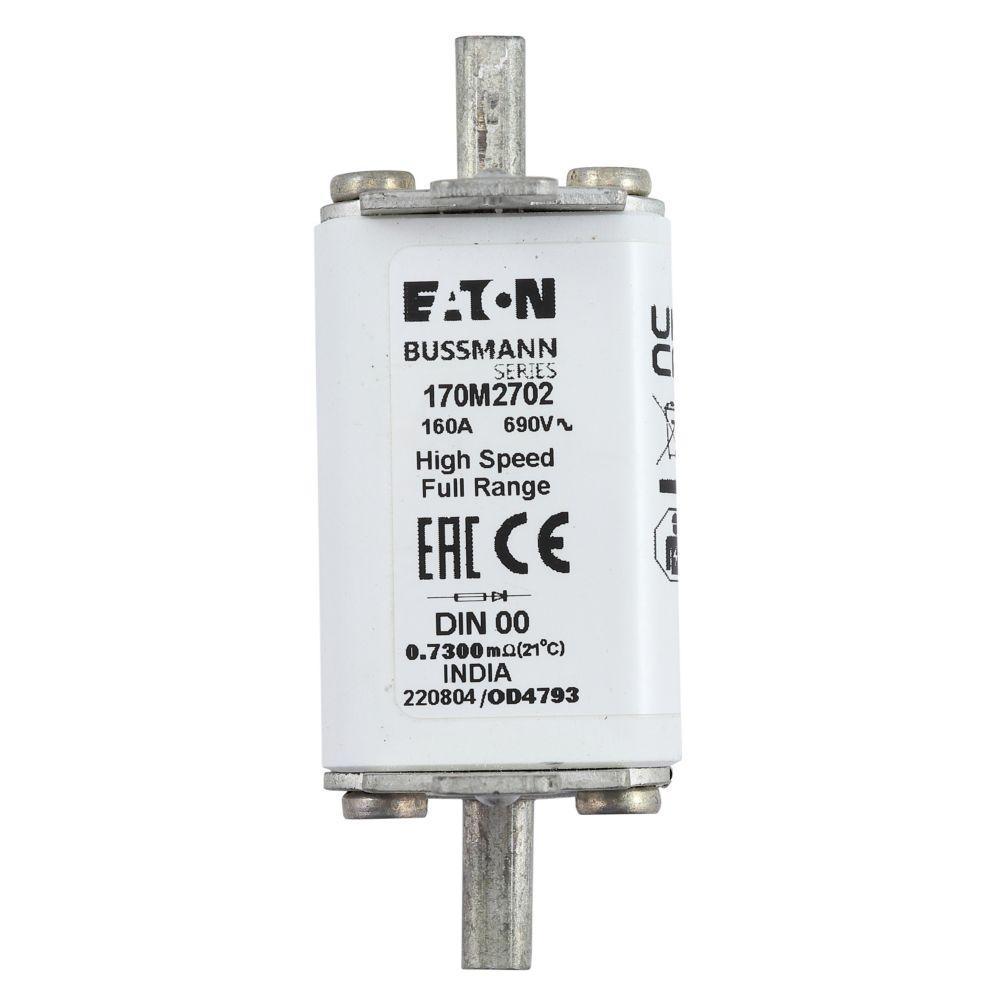

Bussmann 170M2702 Semiconductor Fuse
Brand: Bussmann
Part Number: 170M2702
Bussmann High Speed Fuse, Semi-Conductor, Series: 170M, Indicating, 160 A, 690 V, 200 kA Interrupt, Class: gR, Blade End x Din 43-620 Blade End Terminal, DIN 43 620 Mounting, Square Body, 5.433 in L x 0.315 in W x 2.087 in H Body
Additional Description: BUSS-170M2702 (N) FUSE 160A 690V DIN 00 GR NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Bussmann series high speed square body fuse, 160 A, 690 V (IEC), Size 0, Top fuse status indicator
170M2702 Application
Critical Power, Electrical Assemblies, Panels and EOEMs, Industrial Facilities and Factory Facilities, Safety and Security Systems, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starter Applications170M2702 Item Features
- 29 W power loss
- Full range protection fuses provide both overload and short circuit protection
- Fuses come with type T indicator for a microswitch
- https://www.youtube.com/watch?v=YMvqUyoETXk
170M2702 Standards
UL Recognized ,IEC Rated ,UL Recognized ,IEC-Einstufung ,UL Recognized ,IEC nominaal ,UL Recognized ,Classificazione IEC ,Zgodność z IEC ,UL Recognized ,Parametry dle IEC ,UL Recognized ,Clasificación IEC ,UL Recognized ,UL Recognized ,IEC Sınıfı,RoHS Compliant,CE Marked,CE-Kennzeichnung,RoHS-konform,RoHS-compliant,CE-markering,Conforme a RoHS,Con marchio CE,Uzyskano oznaczenie CE,Zgodny z wymogami RoHS,Opatřeno značkou CE,Splňuje požadavky RoHS,Con marca CE,Compatible con RoHS,RoHS Uyumlu,CE İşaretliSKU #2285572Part Number #170M2702UNSPSC39121625UPC00051712236218
Image provided may only be a representation of final product and may include optional equipment
