Part Number # 170M3011
SKU # 7294
170M3011
Bussmann 170M3011 High Speed Fuse
Part Number # 170M3011
SKU # 7294
Bussmann 170M3011 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | 170M3011 |
| SKU #: | 7294 |
| Amperage Rating: | 80, 80 A |
| Body Type: | Square |
| Class: | AR |
| Frequency Rating: | 45 to 1000, 45 to 1000 Hz |
| Indicating/Non-Indicating: | Non-Indicating |
| Interrupt Rating: | 200, 200 kA |
| Series: | 170M |
| Terminal Type: | Blade, Blade End |
| Type: | Square Body Type 80, Type 80 |
| Material: | Ceramic |
| Mounting type: | DIN 43-653 Stud, Stud |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121625 |
| UPC: | 00051712254564 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.

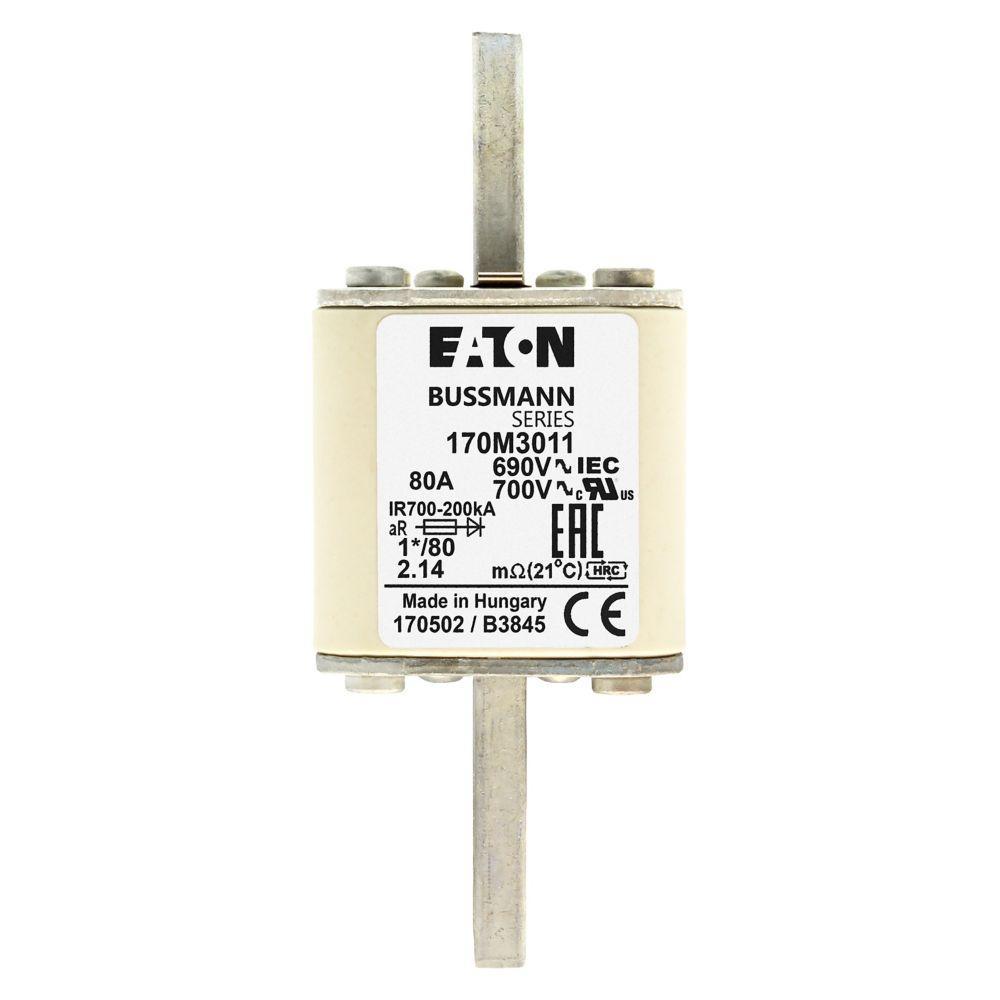

Bussmann 170M3011 High Speed Fuse
Brand: Bussmann
Part Number: 170M3011
Bussmann High Speed Fuse, Square Body Type 80, Series: 170M, Non-Indicating, 80 A, 690 V, 200 kA Interrupt, Class: aR, 45 to 1000 Hz Frequency, Blade End Terminal, DIN 43-653 Stud Mounting, Square Body, Ceramic, 104 mm L x 45 mm W x 58 mm H Body
Additional Description: BUSS-170M3011 (N) FUSE 80A 690V 1*/80 AR UC NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Bussmann series high speed square body fuse, 690 V (IEC), 700 V (UL), 80 A, Fuse size: 1*, Top fuse status indicator, DIN 43653, /80 Visual indicator, Bolted tag
170M3011 Application
Critical Power, Electrical Assemblies, Panels and EOEMs, Industrial Facilities and Factory Facilities, Safety and Security Systems, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starter Applications170M3011 Item Features
- Excellent DC performance
- Low arc voltage and low energy let-through
- Low wattage loss
- Superior cycling capability
- Low arc voltage, excellent DC performance, superior cycling capability, designated size 1
- https://www.youtube.com/watch?v=YMvqUyoETXk
170M3011 Standards
UL Recognized ,IEC Rated ,UL Recognized ,IEC-Einstufung ,UL Recognized ,Classificazione IEC ,IEC nominaal ,UL Recognized ,Zgodność z IEC ,UL Recognized ,Parametry dle IEC ,UL Recognized ,Homologué CEI ,Reconnu UL,RoHS Compliant,CE Marked,CE-Kennzeichnung,RoHS-konform,Con marchio CE,Conforme a RoHS,CE-markering,RoHS-compliant,Uzyskano oznaczenie CE,Zgodny z wymogami RoHS,Splňuje požadavky RoHS,Opatřeno značkou CE,Marquage CE,Conformité RoHSSKU #7294Part Number #170M3011UNSPSC39121625UPC00051712254564
Image provided may only be a representation of final product and may include optional equipment
