Part Number # 170M3021
SKU # 2283672
170M3021

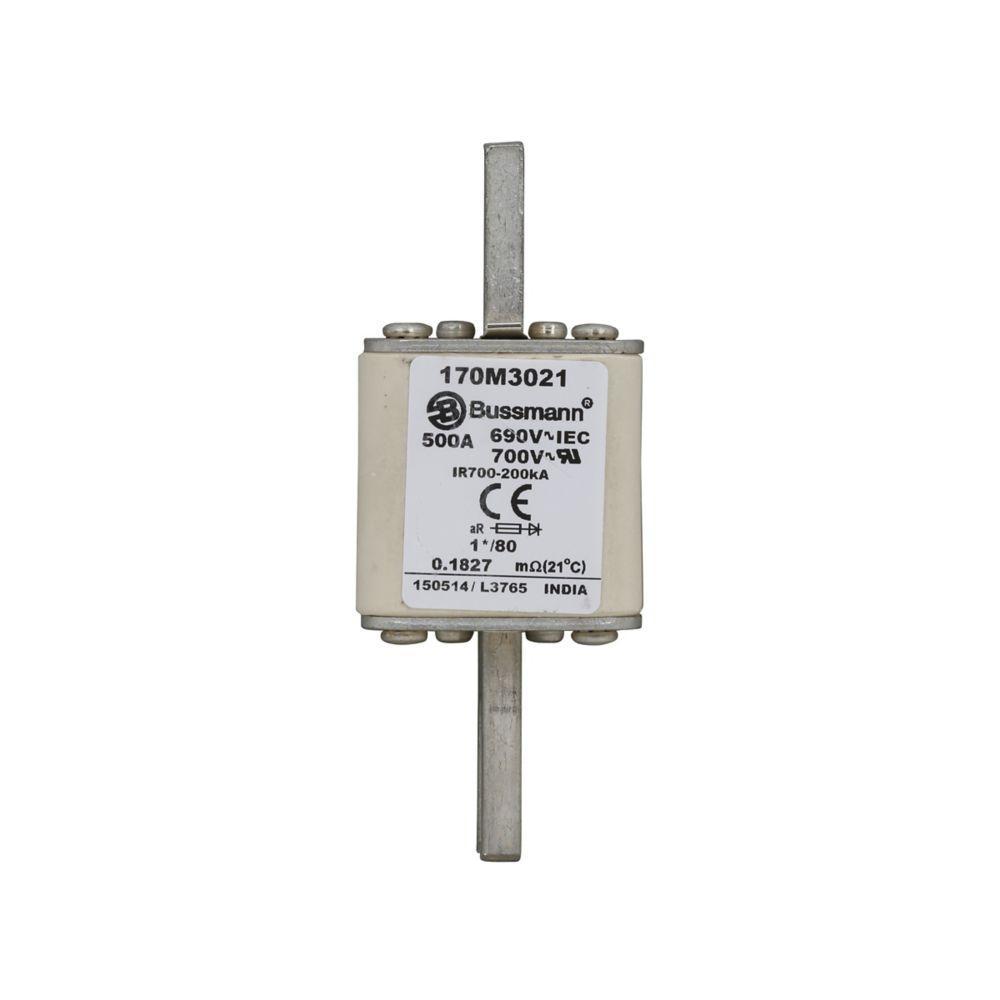

Bussmann 170M3021 High Speed Fuse
Part Number # 170M3021
SKU # 2283672
Bussmann 170M3021 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | 170M3021 |
| SKU #: | 2283672 |
| Amperage Rating: | 500, 500 A |
| Body Type: | Square |
| Class: | AR |
| Frequency Rating: | 45 to 1000, 45 to 1000 Hz |
| Indicating/Non-Indicating: | Indicating, Non-Indicating |
| Interrupt Rating: | 200, 200 kA |
| Series: | 170M |
| Terminal Type: | Blade, Blade End |
| Type: | Type 80 |
| Material: | Ceramic |
| Mounting type: | DIN 43-653 Stud, Stud |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121625 |
| UPC: | 00051712799362 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann 170M3021 High Speed Fuse
Brand: Bussmann
Part Number: 170M3021
Bussmann High Speed Fuse, Type 80, Series: 170M, Non-Indicating, 500 A, 690 V, 200 kA Interrupt, Class: aR, 45 to 1000 Hz Frequency, Blade End Terminal, DIN 43-653 Stud Mounting, Square Body, Ceramic, 104 mm L x 45 mm W x 58 mm H Body
Additional Description: BUSS-170M3021 (N) FUSE 500A 690V 1*/80 AR UC NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Fuse-link, high speed, 500 A, AC 690 V, compact DIN 1, 45 x 45 x 104 mm, aR, DIN, IEC, single indicator
170M3021 Application
Electrical Assemblies, Panels, EOEMs, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starters Applications, Safety and Security Systems, Industrial Facilities and Factories - Facility and Critical Power170M3021 Item Features
- Excellent DC performance
- Low arc voltage and low energy let-through
- Low wattage loss
- Superior cycling capability
- Designated size 1
- https://www.youtube.com/watch?v=YMvqUyoETXk
170M3021 Standards
UL Recognized ,IEC Rated ,IEC-Einstufung ,UL Recognized ,UL Recognized ,Classificazione IEC ,IEC nominaal ,UL Recognized ,Zgodność z IEC ,UL Recognized ,Parametry dle IEC ,UL Recognized ,Homologué CEI ,Reconnu UL,RoHS Compliant,CE Marked,CE-Kennzeichnung,RoHS-konform,Conforme a RoHS,Con marchio CE,RoHS-compliant,CE-markering,Zgodny z wymogami RoHS,Uzyskano oznaczenie CE,Splňuje požadavky RoHS,Opatřeno značkou CE,Conformité RoHS,Marquage CESKU #2283672Part Number #170M3021UNSPSC39121625UPC00051712799362
Image provided may only be a representation of final product and may include optional equipment
