Part Number # 170M3192
SKU # 2403475
170M3192

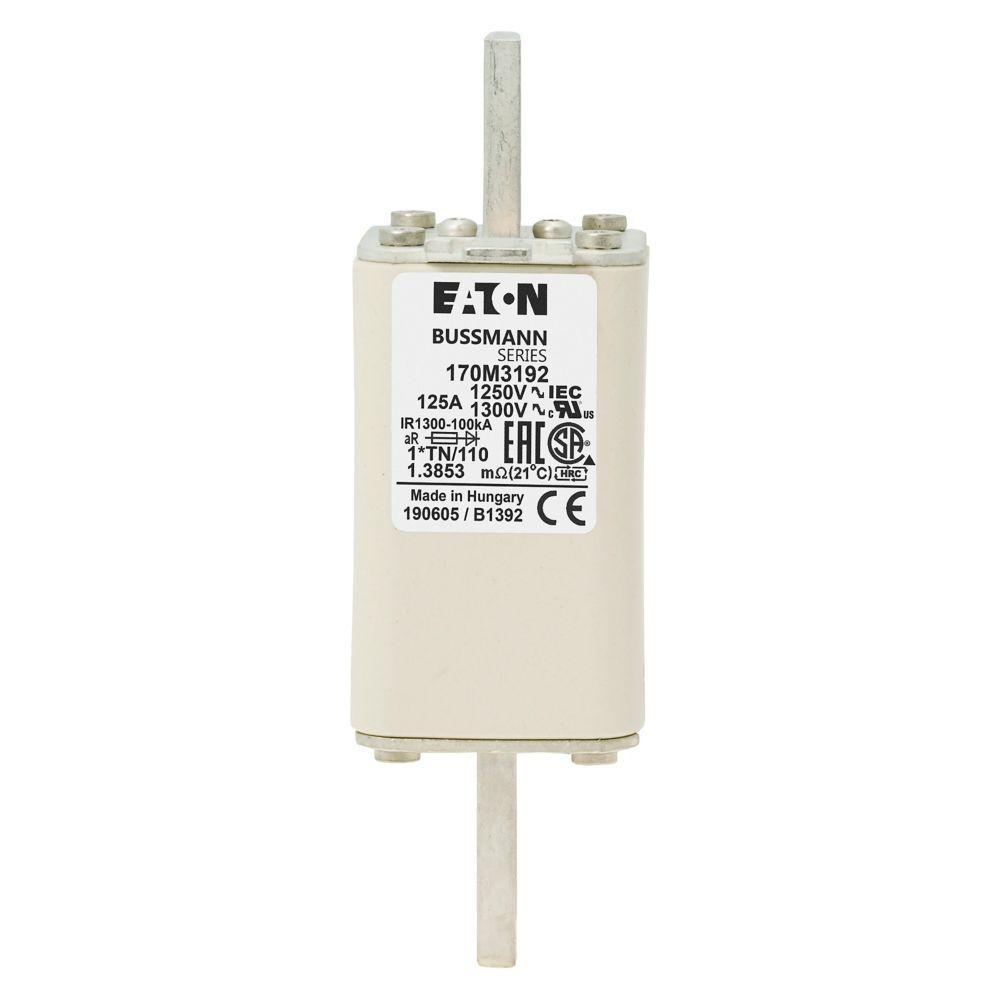

Bussmann 170M3192 High Speed Fuse
Part Number # 170M3192
SKU # 2403475
Bussmann 170M3192 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | 170M3192 |
| SKU #: | 2403475 |
| Amperage Rating: | 125 A |
| Body Type: | Square |
| Class: | AR |
| Indicating/Non-Indicating: | Non-Indicating |
| Interrupt Rating: | 100 kA |
| Type: | Semi-Conductor |
| Mounting type: | DIN 43 620 Blade Style |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121625 |
| UPC: | 00051712255080 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann 170M3192 High Speed Fuse
Brand: Bussmann
Part Number: 170M3192
Bussmann High Speed Fuse, Semi-Conductor, Indicating/Non-Indicating: Non-Indicating, 125 A, 690/700 V, 100 kA Interrupt, Class: AR, DIN 43 620 Blade Style Mount, Square Body Type, 5.433 in L x 0.315 in W x 2.087 in H Body Size
Additional Description: BUSS-170M3192 (N) FUSE 125A 1250V 1*TN/110 AR CU NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Fuse-link, high speed, 125 A, AC 1250 V, compact size 1, 45 x 58 x 138 mm, aR, DIN, IEC, type T indicator
170M3192 Application
Electrical Assemblies, Panels, OEMs, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starters Applications, Safety and Security Systems170M3192 Item Features
- 35 W power loss
- https://www.youtube.com/watch?v=YMvqUyoETXk
170M3192 Standards
UL Recognized ,IEC Rated ,IEC-Einstufung ,UL Recognized ,IEC nominaal ,UL Recognized ,Classificazione IEC ,UL Recognized ,UL Recognized ,Zgodność z IEC ,Parametry dle IEC ,UL Recognized ,Reconnu UL ,Homologué CEI,CE Marked,RoHS Compliant,RoHS-konform,CE-Kennzeichnung,RoHS-compliant,CE-markering,Conforme a RoHS,Con marchio CE,Uzyskano oznaczenie CE,Zgodny z wymogami RoHS,Splňuje požadavky RoHS,Opatřeno značkou CE,Marquage CE,Conformité RoHSSKU #2403475Part Number #170M3192UNSPSC39121625UPC00051712255080
Image provided may only be a representation of final product and may include optional equipment
