170M3694

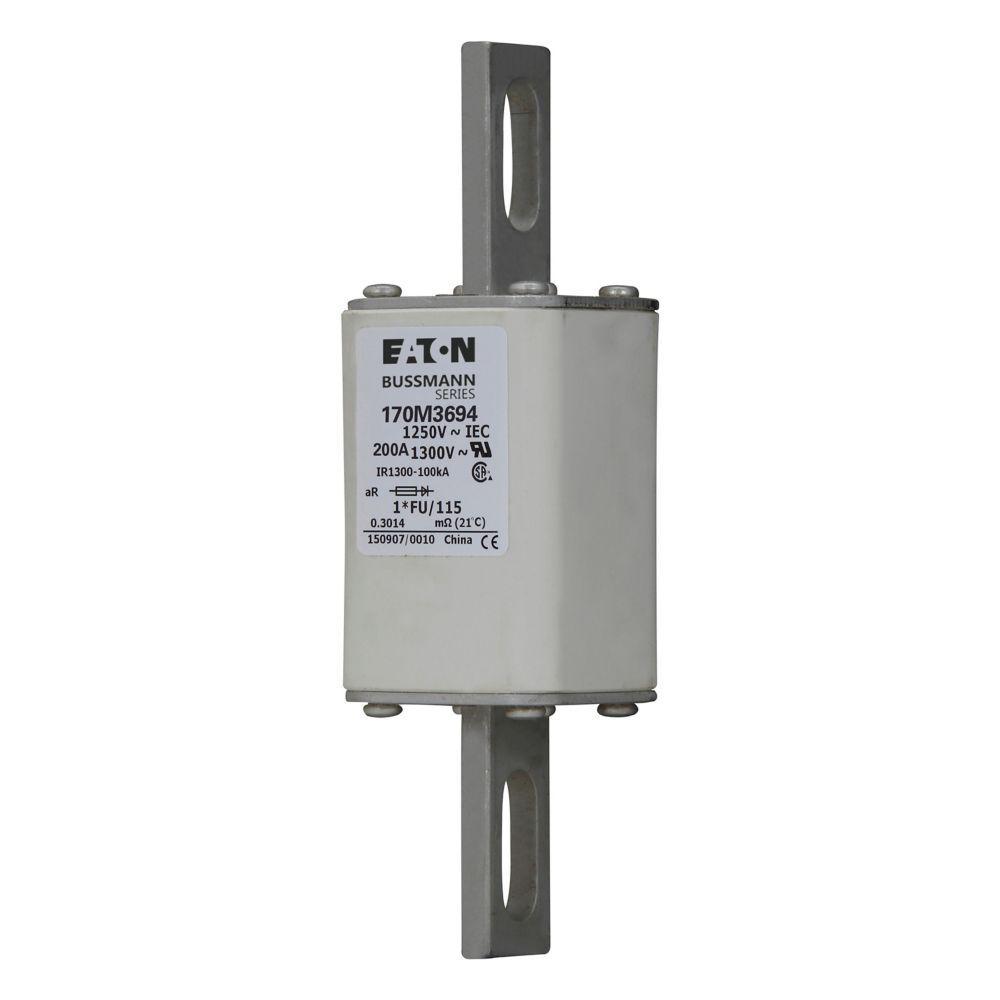

Bussmann 170M3694 High Speed Fuse
Part Number # 170M3694
SKU # 2213141
Bussmann 170M3694 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | 170M3694 |
| SKU #: | 2213141 |
| Amperage Rating: | 200, 200 A |
| Body Type: | Square |
| Class: | AR |
| Indicating/Non-Indicating: | Non-Indicating |
| Interrupt Rating: | 100, 100 kA |
| Series: | 170M |
| Terminal Type: | Blade, Blade End |
| Type: | Square Body |
| Mounting type: | Threaded |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121625 |
| UPC: | 00051712792103 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann 170M3694 High Speed Fuse
Brand: Bussmann
Part Number: 170M3694
Bussmann High Speed Fuse, Square Body, Series: 170M, Indicating/Non-Indicating: Non-Indicating, 200 A, 1250 VAC, 100 kA Interrupt, Class: aR, Blade End Terminal, Threaded Mount, Square Body, 156 mm L x 45 mm W x 59 mm H Body Size
Additional Description: BUSS-170M3694 (N) FUSE 200A 1250V 1*FU/115 AR CU NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Fuse-link, high speed, 200 A, AC 1250 V, compact size 1, 45 x 45 x 156 mm, aR, IEC, UL
170M3694 Application
Critical Power, Electrical Assemblies, Panels and EOEMs, Industrial Facilities and Factory Facilities, Safety and Security Systems, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starter Applications170M3694 Item Features
- Excellent DC performance
- Low arc voltage and low energy let-through
- Low wattage loss
- Superior cycling capability
- Low arc voltage, excellent DC performance, superior cycling capability, designated size 1
- https://www.youtube.com/watch?v=YMvqUyoETXk
170M3694 Standards
IEC Rated ,UL Recognized ,CSA Certified ,CSA Certified ,IEC-Einstufung ,UL Recognized ,UL Recognized ,Classificazione IEC ,CSA Certified ,IEC nominaal ,UL Recognized ,CSA gecertificeerd ,UL Recognized ,CSA Certified ,Zgodność z IEC ,Parametry dle IEC ,UL Recognized ,CSA Certified ,Reconnu UL ,Certifié CSA ,Homologué CEI,RoHS Compliant,CE Marked,CE-Kennzeichnung,RoHS-konform,Conforme a RoHS,Con marchio CE,RoHS-compliant,CE-markering,Uzyskano oznaczenie CE,Zgodny z wymogami RoHS,Splňuje požadavky RoHS,Opatřeno značkou CE,Conformité RoHS,Marquage CESKU #2213141Part Number #170M3694UNSPSC39121625UPC00051712792103
