Part Number # 170M3717
SKU # 2331502
Image provided may only be a representation of
final product and may include optional equipment
170M3717

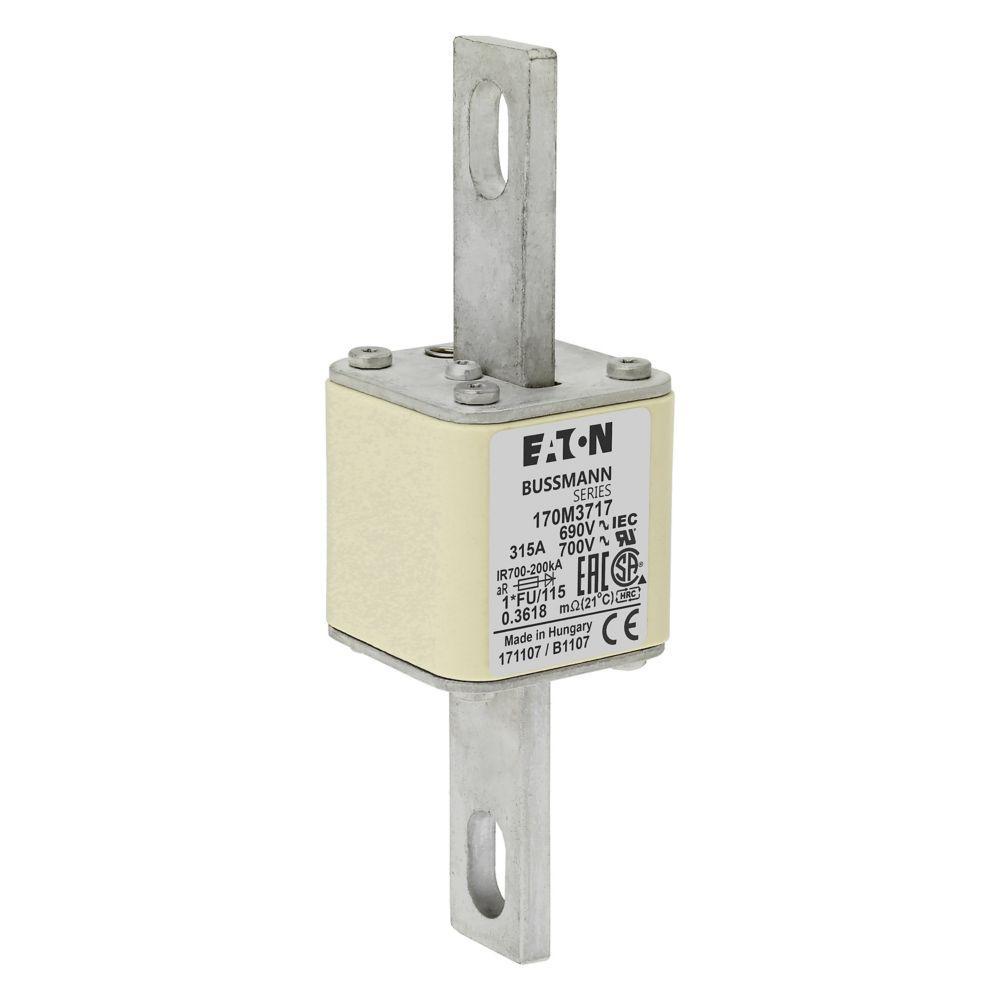

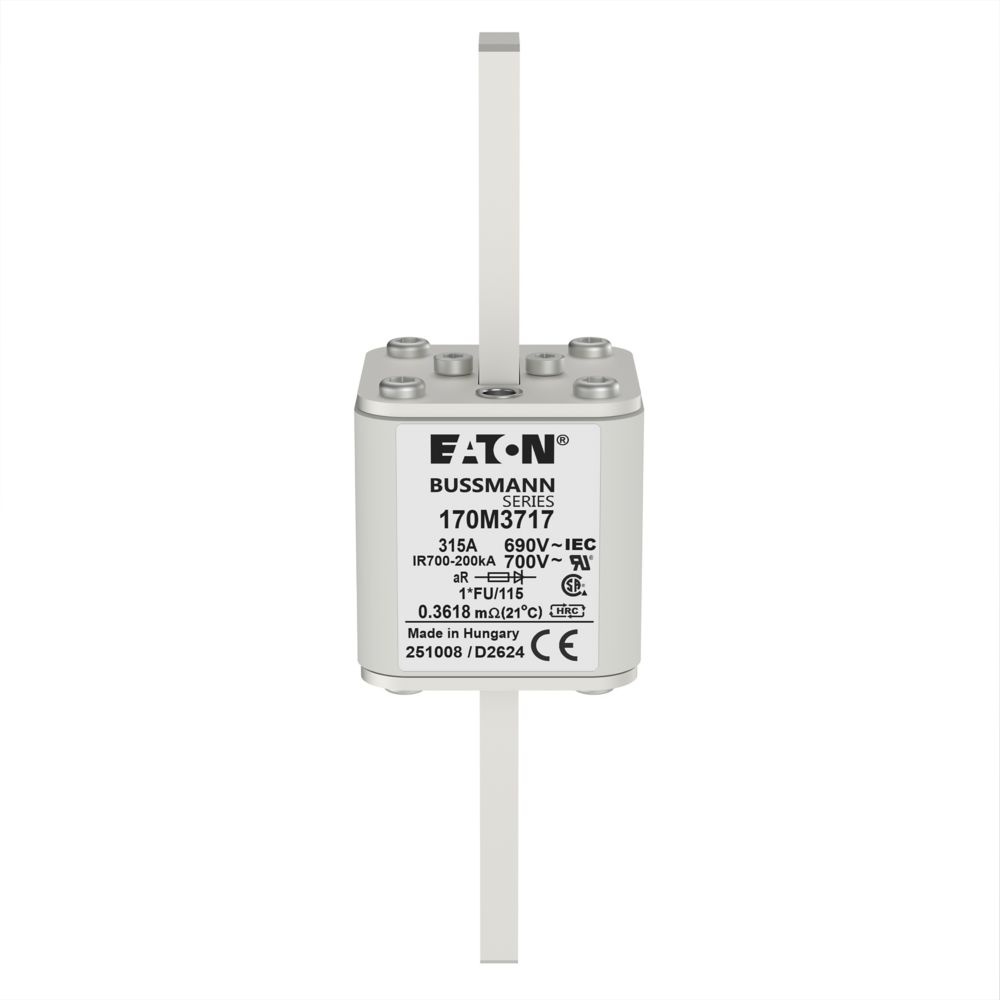

Bussmann 170M3717 High Speed Fuse
Part Number # 170M3717
SKU # 2331502
Bussmann 170M3717 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | 170M3717 |
| SKU #: | 2331502 |
| Amperage Rating: | 315, 315 A |
| Body Type: | Square |
| Class: | AR |
| Frequency Rating: | 45 to 1000, 45 to 1000 Hz |
| Indicating/Non-Indicating: | Non-Indicating |
| Interrupt Rating: | 200, 200 kA |
| Series: | 170M |
| Terminal Type: | Blade, Blade End |
| Type: | Type FU/115 US Style |
| Material: | Ceramic |
| Mounting type: | Stud |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121625 |
| UPC: | 00051712256995 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann 170M3717 High Speed Fuse
Brand: Bussmann
Part Number: 170M3717
Bussmann High Speed Fuse, Type FU/115 US Style, Series: 170M, Non-Indicating, 315 A, 690 V, 200 kA Interrupt, Class: aR, 45 to 1000 Hz Frequency, Blade End Terminal, Stud Mounting, Square Body, Ceramic, 148 mm L x 45 mm W x 59 mm H Body
Additional Description: BUSS-170M3717 (N) FUSE 315A 690V 1*FU/115 AR UC NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Fuse-link, high speed, 315 A, AC 690 V, compact size 1, 45 x 45 x 148 mm, aR, IEC, UL
170M3717 Application
Electrical Assemblies, Panels, EOEMs, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starters Applications, Safety and Security Systems, Industrial Facilities and Factories - Facility and Critical Power170M3717 Item Features
- Excellent DC performance
- Low arc voltage and low energy let-through
- Low wattage loss
- Superior cycling capability
- Designated size 1
- https://www.youtube.com/watch?v=YMvqUyoETXk
170M3717 Standards
IEC Rated ,UL Recognized ,IEC-Einstufung ,UL Recognized ,Classificazione IEC ,UL Recognized ,IEC nominaal ,UL Recognized ,Zgodność z IEC ,UL Recognized ,Parametry dle IEC ,UL Recognized ,Reconnu UL ,Homologué CEI,RoHS Compliant,CE Marked,CE-Kennzeichnung,RoHS-konform,Con marchio CE,Conforme a RoHS,RoHS-compliant,CE-markering,Zgodny z wymogami RoHS,Uzyskano oznaczenie CE,Opatřeno značkou CE,Splňuje požadavky RoHS,Conformité RoHS,Marquage CESKU #2331502Part Number #170M3717UNSPSC39121625UPC00051712256995
