Part Number # 170M3808D
SKU # 2302896
Image provided may only be a representation of
final product and may include optional equipment
170M3808D

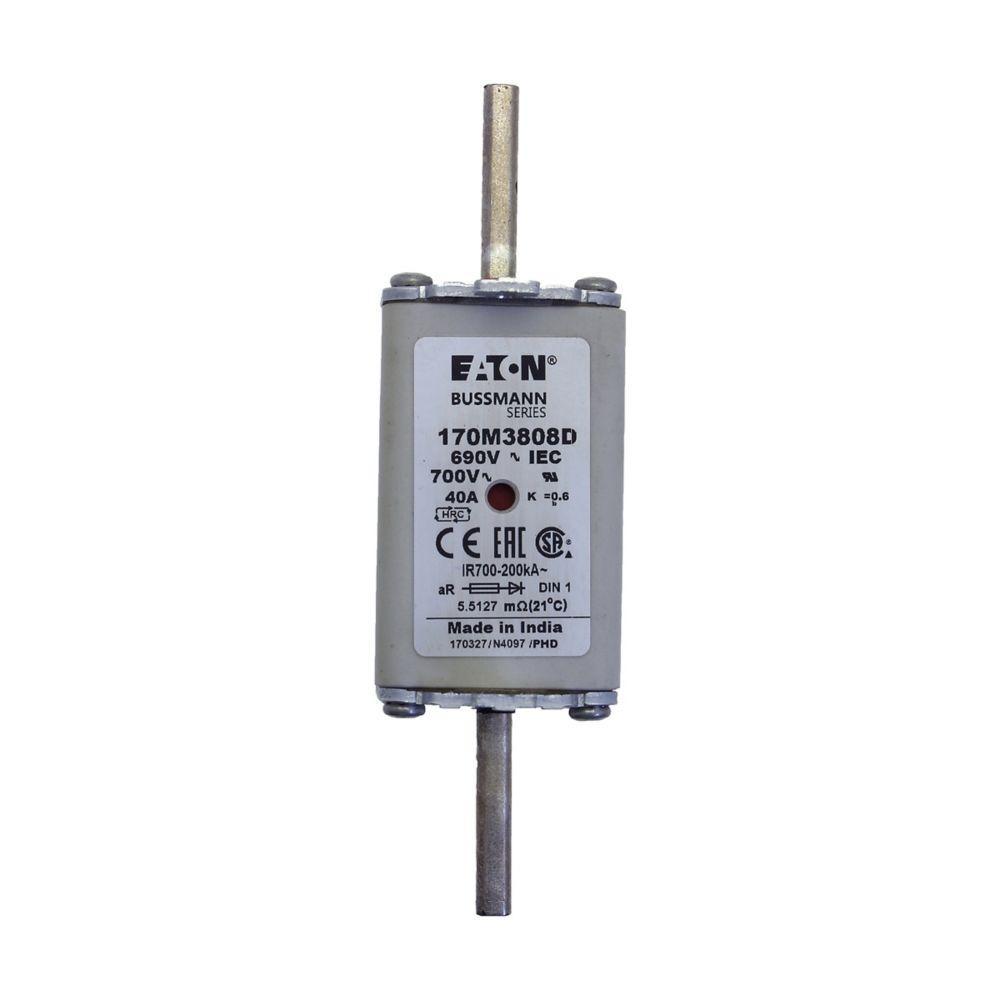

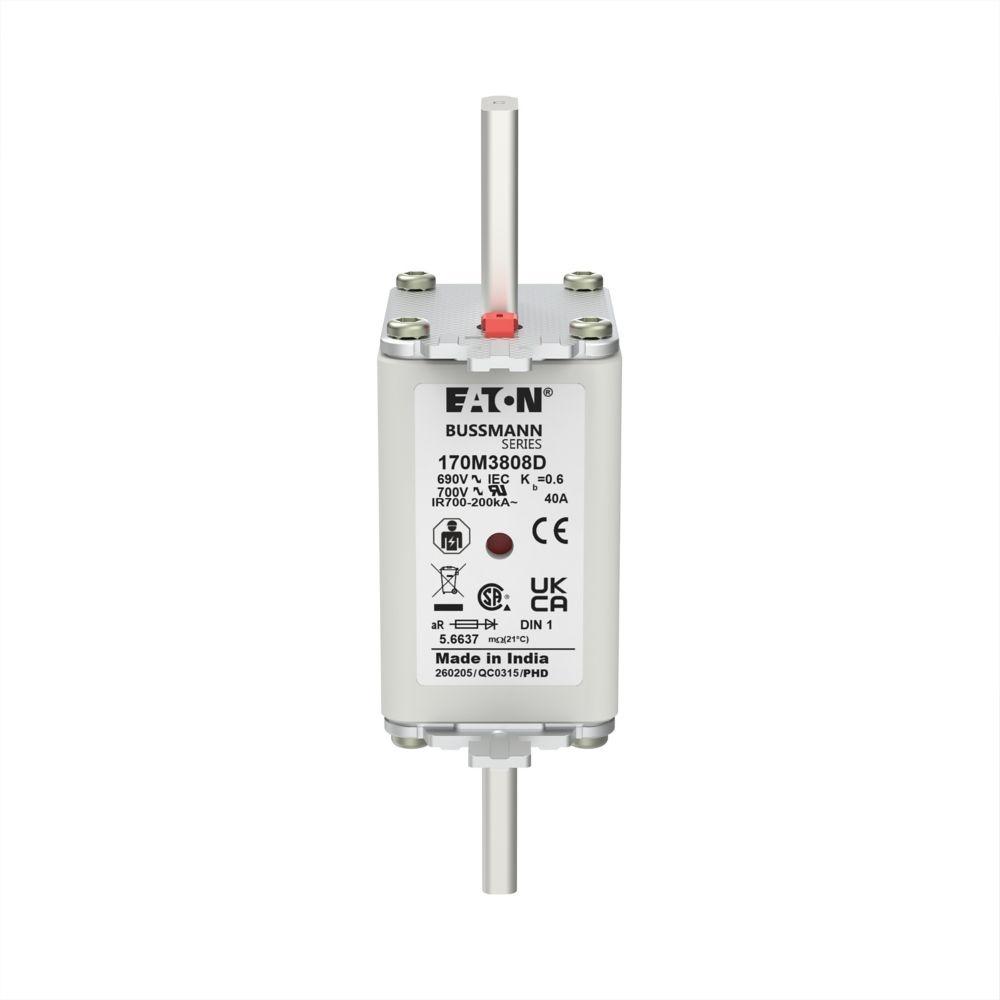

Bussmann 170M3808D Semiconductor Fuse
Part Number # 170M3808D
SKU # 2302896
Bussmann 170M3808D Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | 170M3808D |
| SKU #: | 2302896 |
| Amperage Rating: | 40, 40 A |
| Body Type: | Square |
| Class: | AR |
| Indicating/Non-Indicating: | Non-Indicating |
| Interrupt Rating: | 200, 200 kA |
| Series: | 170M |
| Terminal Type: | Din 43-620 Blade End |
| Type: | Semi-Conductor |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121625 |
| UPC: | 00051712334945 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann 170M3808D Semiconductor Fuse
Brand: Bussmann
Part Number: 170M3808D
Bussmann High Speed Fuse, Semi-Conductor, Series: 170M, Non-Indicating, 40 A, 690 V, 200 kA Interrupt, Class: aR, Din 43-620 Blade End Terminal, Square Body, 135 mm L x 45 mm W x 58 mm H Body
Additional Description: BUSS-170M3808D (N) FUSE 40A 690V aR DIN 1 HSDNH NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Bussmann series high speed square body fuse, 700V (UL), 690V (IEC), 40A, 200 kAIC, Combination fuse status indicator, Fuse, Din 43-620 blade end X Din 43-620 blade end, Class aR
170M3808D Application
Electrical Assemblies, Panels, EOEMs, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starters Applications, Safety and Security Systems, Industrial Facilities and Factories - Facility and Critical Power170M3808D Item Features
- Low arc voltage
- Excellent DC performance
- Superior cycling capability
- Designated size 1
- 4 W power loss
- https://www.youtube.com/watch?v=YMvqUyoETXk
170M3808D Standards
UL Recognized ,IEC Rated ,IEC-Einstufung ,UL Recognized ,IEC nominaal ,UL Recognized ,UL Recognized ,Classificazione IEC ,UL Recognized ,Zgodność z IEC ,UL Recognized ,Parametry dle IEC ,UL Recognized ,Clasificación IEC ,Reconnu UL ,Homologué CEI,CE Marked,CE-Kennzeichnung,CE-markering,Con marchio CE,Uzyskano oznaczenie CE,Opatřeno značkou CE,Con marca CE,Marquage CESKU #2302896Part Number #170M3808DUNSPSC39121625UPC00051712334945
