Part Number # 170M3813D
SKU # 2302154

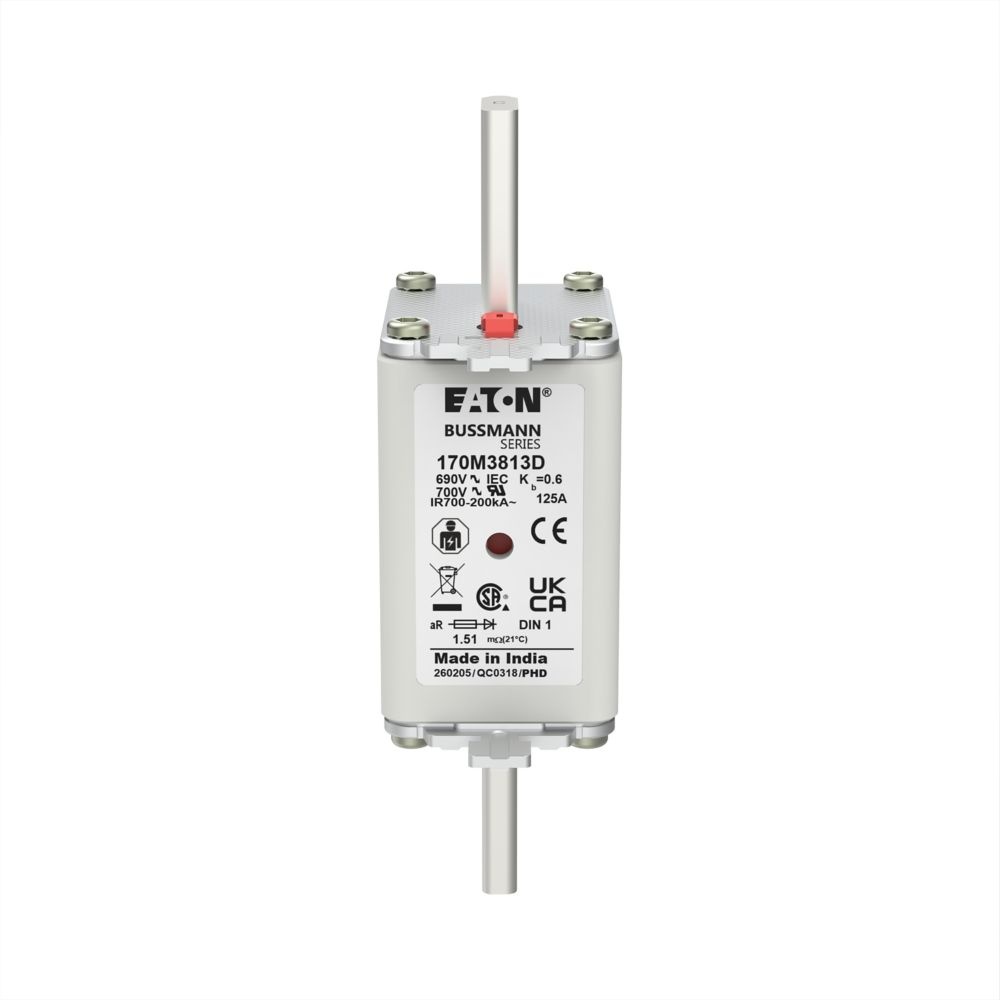

Image provided may only be a representation of
final product and may include optional equipment
170M3813D
Bussmann 170M3813D Semiconductor Fuse
Part Number # 170M3813D
SKU # 2302154
Bussmann 170M3813D Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | 170M3813D |
| SKU #: | 2302154 |
| Amperage Rating: | 125 A |
| Body Type: | Square |
| Class: | AR |
| Indicating/Non-Indicating: | Non-Indicating |
| Interrupt Rating: | 200, 200 kA |
| Series: | 170M |
| Terminal Type: | Din 43-620 Blade End |
| Type: | Semi-Conductor |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121625 |
| UPC: | 00051712334013 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann 170M3813D Semiconductor Fuse
Brand: Bussmann
Part Number: 170M3813D
Bussmann High Speed Fuse, Semi-Conductor, Series: 170M, Non-Indicating, 125 A, 690 V, 200 kA Interrupt, Class: aR, Din 43-620 Blade End Terminal, Square Body, 135 mm L x 45 mm W x 58 mm H Body
Additional Description: BUSS-170M3813D (N) FUSE 125A 690V aR DIN 1 HSDNH NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Bussmann series high speed square body fuse, 700V (UL), 690V (IEC), 125A, 200 kAIC, Combination fuse status indicator, Fuse, Din 43-620 blade end X Din 43-620 blade end, Class aR
170M3813D Application
Electrical Assemblies, Panels, EOEMs, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starters Applications, Safety and Security Systems, Industrial Facilities and Factories - Facility and Critical Power170M3813D Item Features
- Low arc voltage
- Excellent DC performance
- Superior cycling capability
- Designated size 1
- 11 W power loss
- https://www.youtube.com/watch?v=YMvqUyoETXk
170M3813D Standards
UL Recognized ,IEC Rated ,UL Recognized ,IEC-Einstufung ,Classificazione IEC ,UL Recognized ,UL Recognized ,IEC nominaal ,Zgodność z IEC ,UL Recognized ,UL Recognized ,Parametry dle IEC ,UL Recognized ,Clasificación IEC ,Homologué CEI ,Reconnu UL,CE Marked,RoHS Compliant,RoHS-konform,CE-Kennzeichnung,Con marchio CE,Conforme a RoHS,CE-markering,RoHS-compliant,Zgodny z wymogami RoHS,Uzyskano oznaczenie CE,Splňuje požadavky RoHS,Opatřeno značkou CE,Compatible con RoHS,Con marca CE,Marquage CE,Conformité RoHSSKU #2302154Part Number #170M3813DUNSPSC39121625UPC00051712334013
