170M3814D
Bussmann 170M3814D
Part Number # 170M3814D
SKU # 2462864
$452.24 / Each
Typical price:$919.64 / Each
Bussmann 170M3814D Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | 170M3814D |
| SKU #: | 2462864 |
| Body Type: | Square |
| Class: | AR |
| Frequency Rating: | 45 to 1000 Hz |
| Interrupt Rating: | 200 kA |
| Series: | 170M |
| Terminal Type: | Din 43-620 Blade End |
| Type: | Square Body Type T |
| Material: | Ceramic |
| Mounting type: | DIN 43 620 Blade |
| UNSPSC: | 39121625 |
| UPC: | 00051712334020 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$452.24 / Each
Typical price:$919.64 / Each
Quantity:
- Bussmann High Speed Fuse, Square Body Type T, Series: 170M, Non-Indicating, 160 A, 690 V, 200 kA Interrupt, Class: aR, 45 to 1000 Hz Frequency, Din 43-620 Blade End Terminal, DIN 43 620 Blade Mounting, Square Body, Dual Element, Ceramic, 135 mm L x 45 mm W x 58 mm H Body
170M3814D Application
Critical Power, Electrical Assemblies, Panels and EOEMs, Industrial Facilities and Factory Facilities, Safety and Security Systems, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starter Applications170M3814D Item Features
- Excellent DC performance
- Low arc voltage and low energy let-through
- Low wattage loss
- Superior cycling capability
- Square body DIN 43620 blade high speed fuses with dual indicator system one indicator in the fuse body and another one in the metallic end plate
- Interchangeable with existing high speed DIN 43620 fuses for the protection of UPS, soft starters, solid state relays, variable speed drives, rectifiers and inverters
- Low arc voltage, excellent DC performance, superior cycling capability, designated size 1
- https://www.youtube.com/watch?v=YMvqUyoETXk
170M3814D Standards
IEC Rated ,UL Recognized ,IEC-Einstufung ,UL Recognized ,UL Recognized ,Classificazione IEC ,IEC nominal ,UL Recognized ,UL Recognized ,Zgodność z IEC ,Parametry dle IEC ,UL Recognized ,UL Recognized ,Clasificación IEC ,Homologué CEI ,Reconnu UL,CE Marked,RoHS Compliant,RoHS-konform,CE-Kennzeichnung,Conforme a RoHS,Con marchio CE,RoHS-compliant,CE-markering,Zgodny z wymogami RoHS,Uzyskano oznaczenie CE,Splňuje požadavky RoHS,Opatřeno značkou CE,Compatible con RoHS,Con marca CE,Marquage CE,Conformité RoHSSKU #2462864Part Number #170M3814DUNSPSC39121625UPC00051712334020

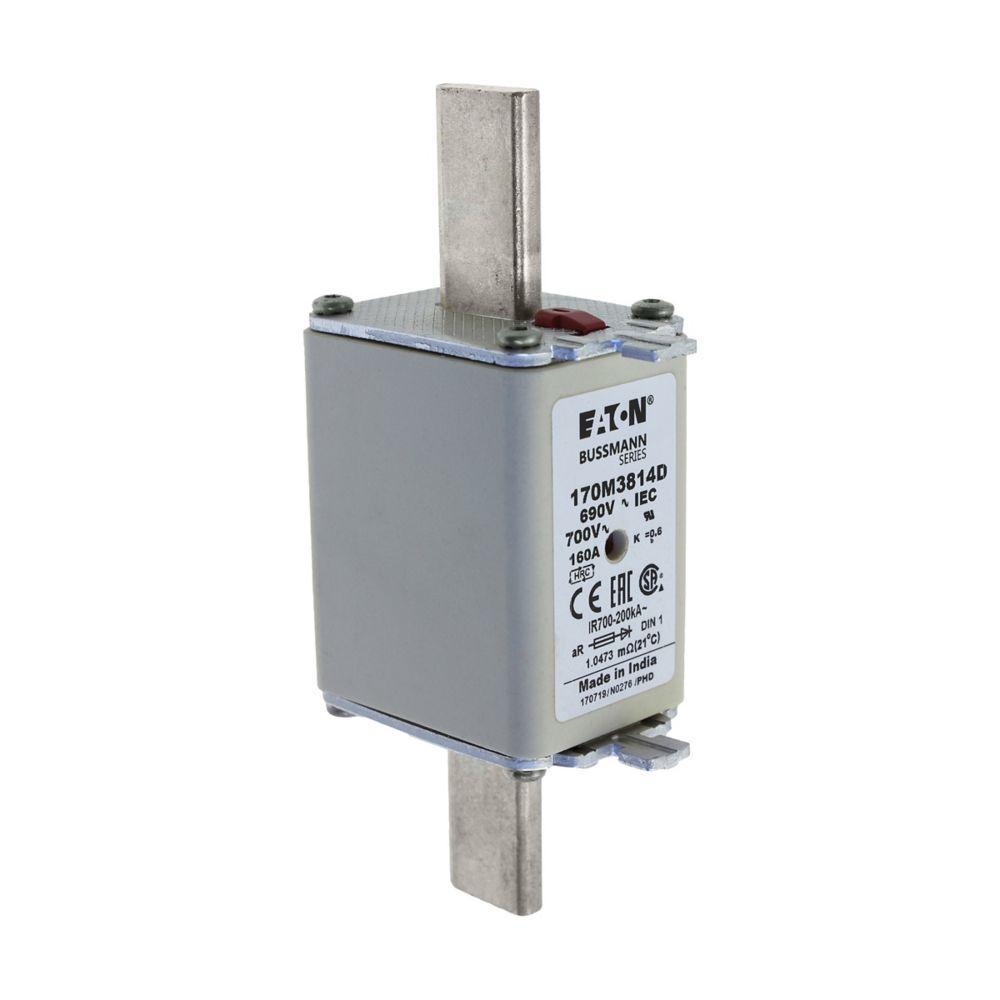

Image provided may only be a representation of final product and may include optional equipment
