Part Number # 170M3816D
SKU # 2265558
Image Disclaimers Message
170M3816D

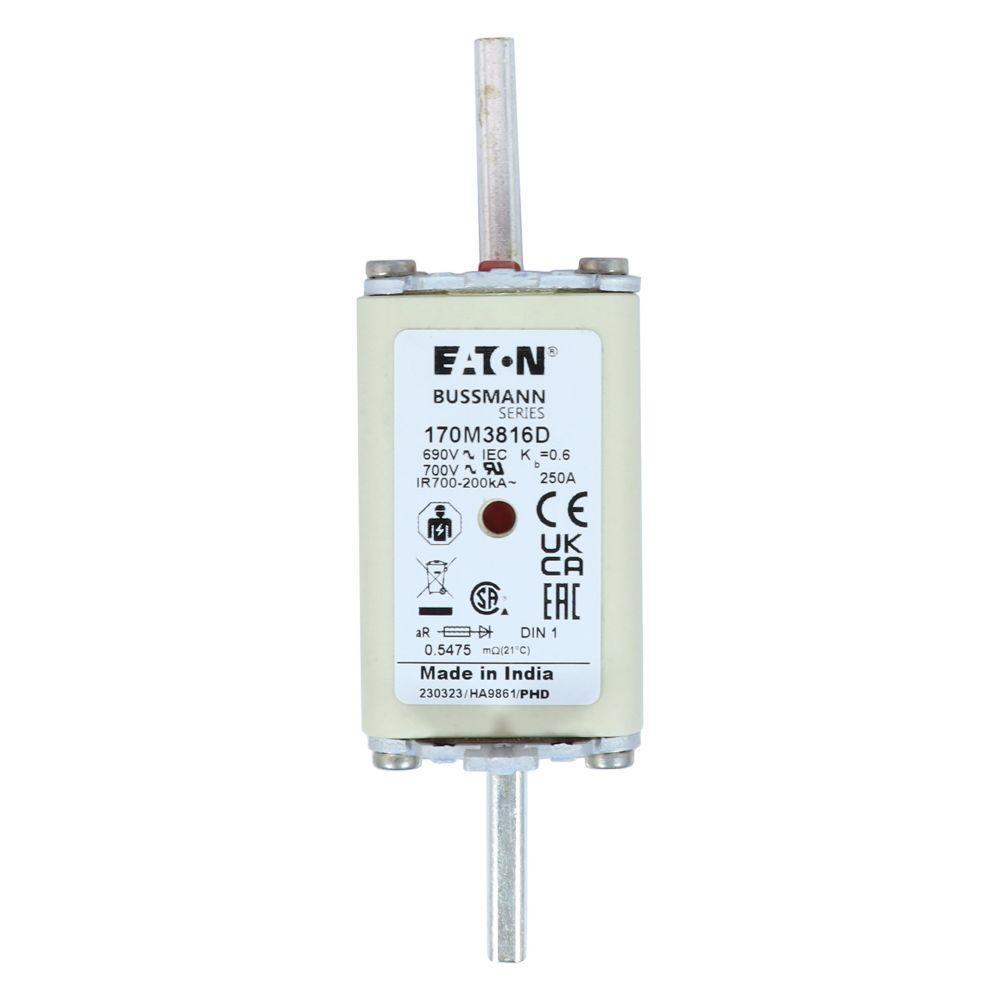

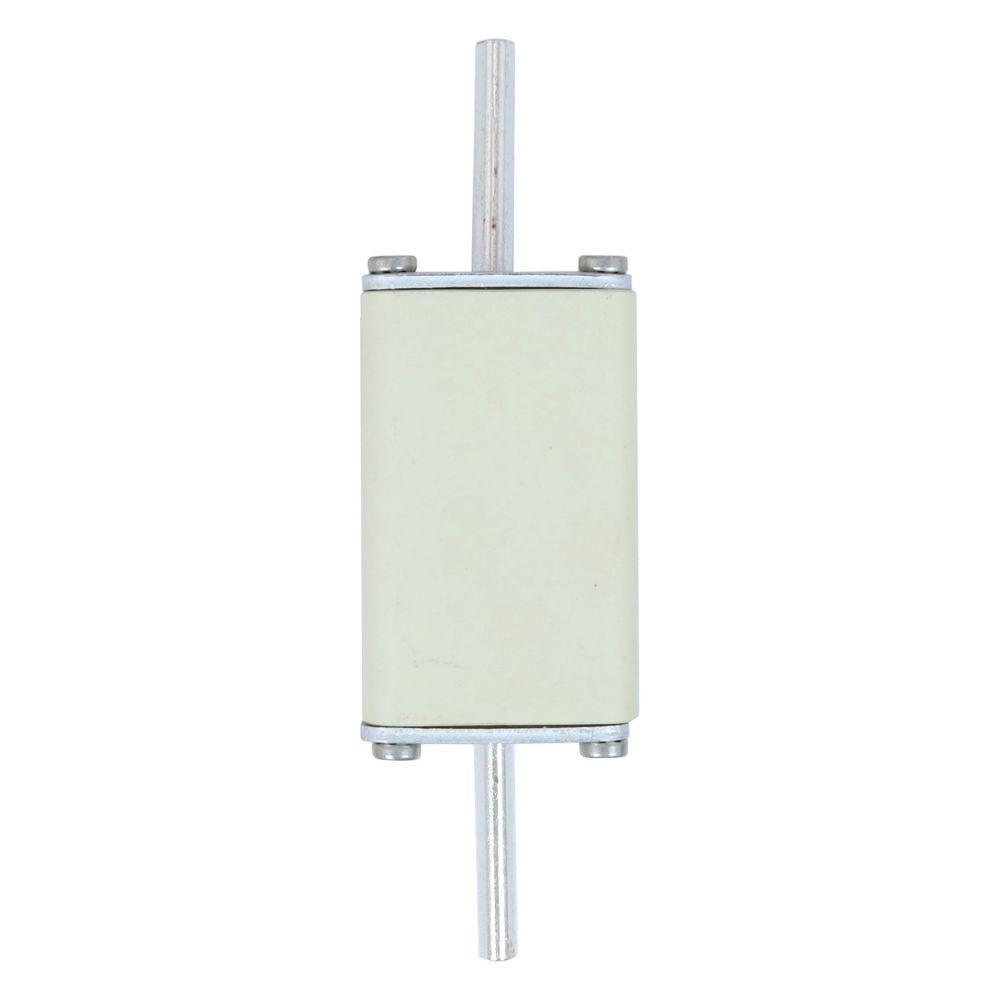

Bussmann 170M3816D High Speed Fuse
Part Number # 170M3816D
SKU # 2265558
$385.77 / Each
Typical price:$784.47 / Each
Bussmann 170M3816D Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | 170M3816D |
| SKU #: | 2265558 |
| Amperage Rating: | 250, 250 A |
| Body Type: | Square |
| Class: | AR |
| Frequency Rating: | 45 to 1000, 45 to 1000 Hz |
| Indicating/Non-Indicating: | Non-Indicating |
| Interrupt Rating: | 200, 200 kA |
| Series: | 170M |
| Terminal Type: | Blade, Din 43-620 Blade End |
| Type: | Square Body Type T, Type T |
| Material: | Ceramic |
| Mounting type: | DIN 43 620 Blade, Stud |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121625 |
| UPC: | 00051712334044 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$385.77 / Each
Typical price:$784.47 / Each
Quantity:
- Bussmann High Speed Fuse, Square Body Type T, Series: 170M, Non-Indicating, 250 A, 690 V, 200 kA Interrupt, Class: aR, 45 to 1000 Hz Frequency, Din 43-620 Blade End Terminal, DIN 43 620 Blade Mounting, Square Body, Dual Element, Ceramic, 135 mm L x 45 mm W x 58 mm H Body
170M3816D Application
Critical Power, Electrical Assemblies, Panels and EOEMs, Industrial Facilities and Factory Facilities, Safety and Security Systems, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starter Applications170M3816D Item Features
- Excellent DC performance
- Low arc voltage and low energy let-through
- Low wattage loss
- Superior cycling capability
- Square body DIN 43620 blade high speed fuses with dual indicator system one indicator in the fuse body and another one in the metallic end plate
- Interchangeable with existing high speed DIN 43620 fuses for the protection of UPS, soft starters, solid state relays, variable speed drives, rectifiers and inverters
- Low arc voltage, excellent DC performance, superior cycling capability, designated size 1
- https://www.youtube.com/watch?v=YMvqUyoETXk
170M3816D Standards
IEC Rated ,UL Recognized ,UL Recognized ,IEC-Einstufung ,UL Recognized ,IEC nominaal ,UL Recognized ,Classificazione IEC ,UL Recognized ,Zgodność z IEC ,UL Recognized ,Parametry dle IEC ,UL Recognized ,Clasificación IEC ,Homologué CEI ,Reconnu UL,CE Marked,RoHS Compliant,CE-Kennzeichnung,RoHS-konform,CE-markering,RoHS-compliant,Conforme a RoHS,Con marchio CE,Zgodny z wymogami RoHS,Uzyskano oznaczenie CE,Splňuje požadavky RoHS,Opatřeno značkou CE,Con marca CE,Compatible con RoHS,Marquage CE,Conformité RoHSSKU #2265558Part Number #170M3816DUNSPSC39121625UPC00051712334044
