170M4688

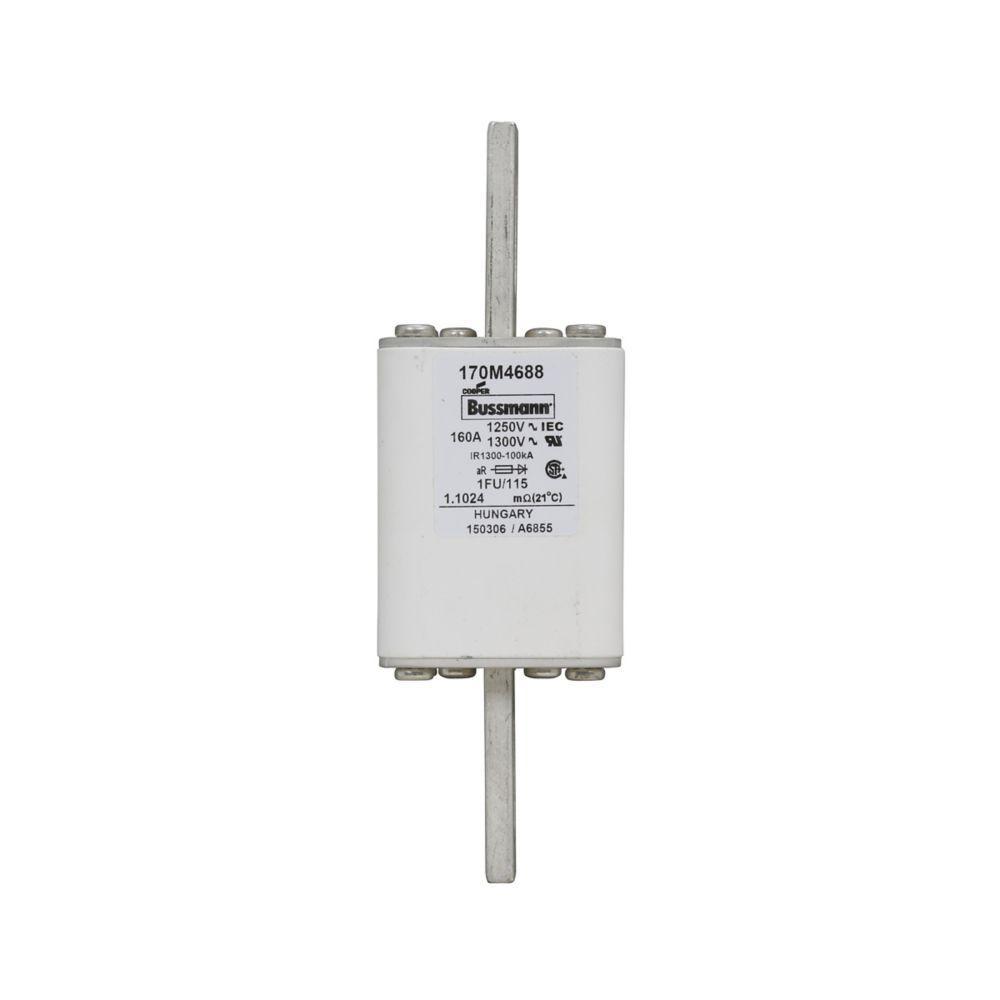

Bussmann 170M4688 High Speed Fuse
Part Number # 170M4688
SKU # 2249462
Bussmann 170M4688 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | 170M4688 |
| SKU #: | 2249462 |
| Amperage Rating: | 160, 160 A |
| Body Type: | Square |
| Class: | AR |
| Frequency Rating: | 45 to 1000, 45 to 1000 Hz |
| Indicating/Non-Indicating: | Non-Indicating |
| Interrupt Rating: | 100, 100 kA |
| Series: | 170M |
| Terminal Type: | Blade |
| Type: | Type FU/115 Style |
| Country of origin: | HU |
| Material: | Ceramic |
| Mounting type: | Flush |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121625 |
| UPC: | 00051712792882 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann 170M4688 High Speed Fuse
Brand: Bussmann
Part Number: 170M4688
Bussmann High Speed Fuse, Type FU/115 Style, Series: 170M, Non-Indicating, 160 A, 1250 V, 100 kA Interrupt, Class: aR, 45 to 1000 Hz Frequency, Blade Terminal, Flush Mounting, Square Body, Ceramic, 160 mm L x 53 mm W x 69 mm H Body
Additional Description: BUSS-170M4688 (N) FUSE 160A 1250V 1FU/115 AR CU NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Fuse-link, high speed, 160 A, AC 1250 V, size 1, 53 x 69 x 160 mm, aR, IEC, UL
170M4688 Application
Electrical Assemblies, Panels, EOEMs, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starters Applications, Safety and Security Systems, Industrial Facilities and Factories - Facility and Critical Power170M4688 Item Features
- Excellent DC performance
- Low arc voltage and low energy let-through
- Low wattage loss
- Superior cycling capability
- https://www.youtube.com/watch?v=YMvqUyoETXk
170M4688 Standards
IEC Rated ,CSA Certified ,UL Recognized ,IEC-Einstufung ,CSA Certified ,UL Recognized ,UL Recognized ,CSA Certified ,Classificazione IEC ,CSA gecertificeerd ,IEC nominaal ,UL Recognized ,UL Recognized ,Zgodność z IEC ,CSA Certified ,UL Recognized ,CSA Certified ,Parametry dle IEC ,Reconnu UL ,Certifié CSA ,Homologué CEI,RoHS Compliant,CE Marked,RoHS-konform,CE-Kennzeichnung,Conforme a RoHS,Con marchio CE,RoHS-compliant,CE-markering,Zgodny z wymogami RoHS,Uzyskano oznaczenie CE,Splňuje požadavky RoHS,Opatřeno značkou CE,Marquage CE,Conformité RoHSSKU #2249462Part Number #170M4688UNSPSC39121625UPC00051712792882
