170M4691

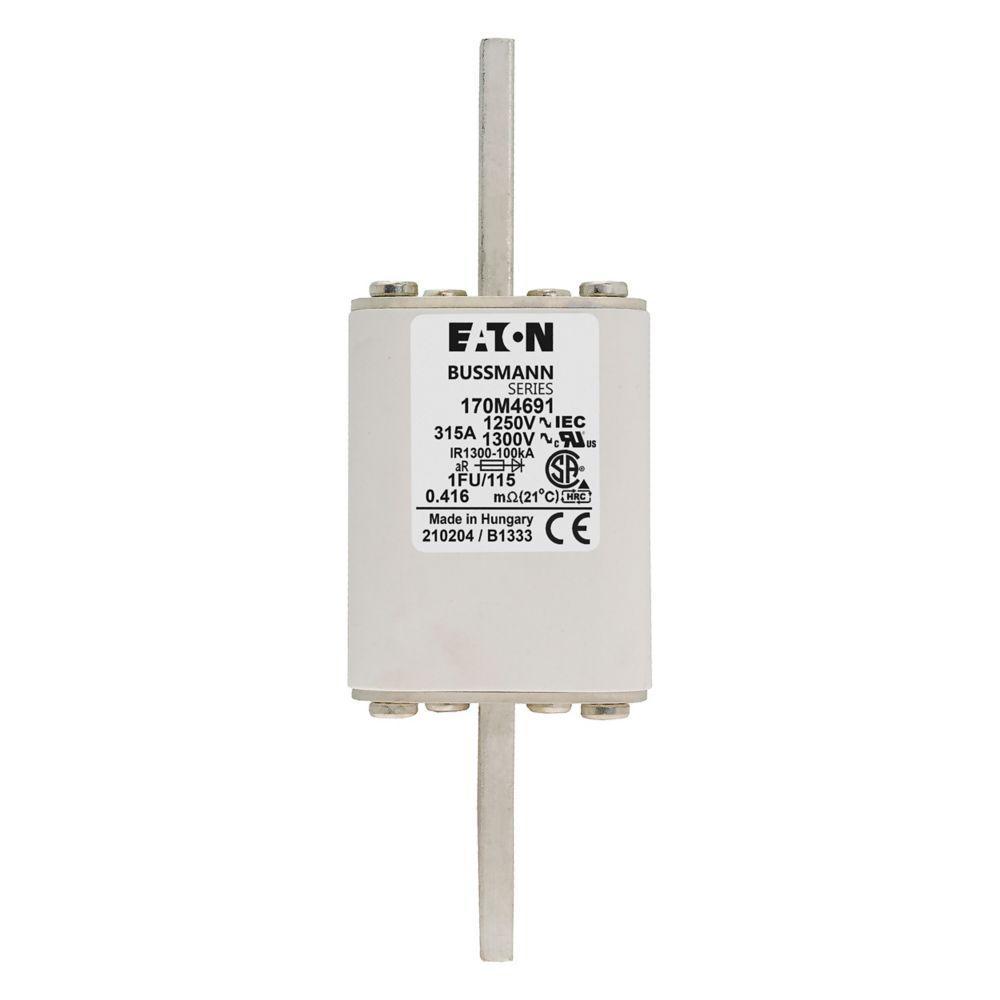

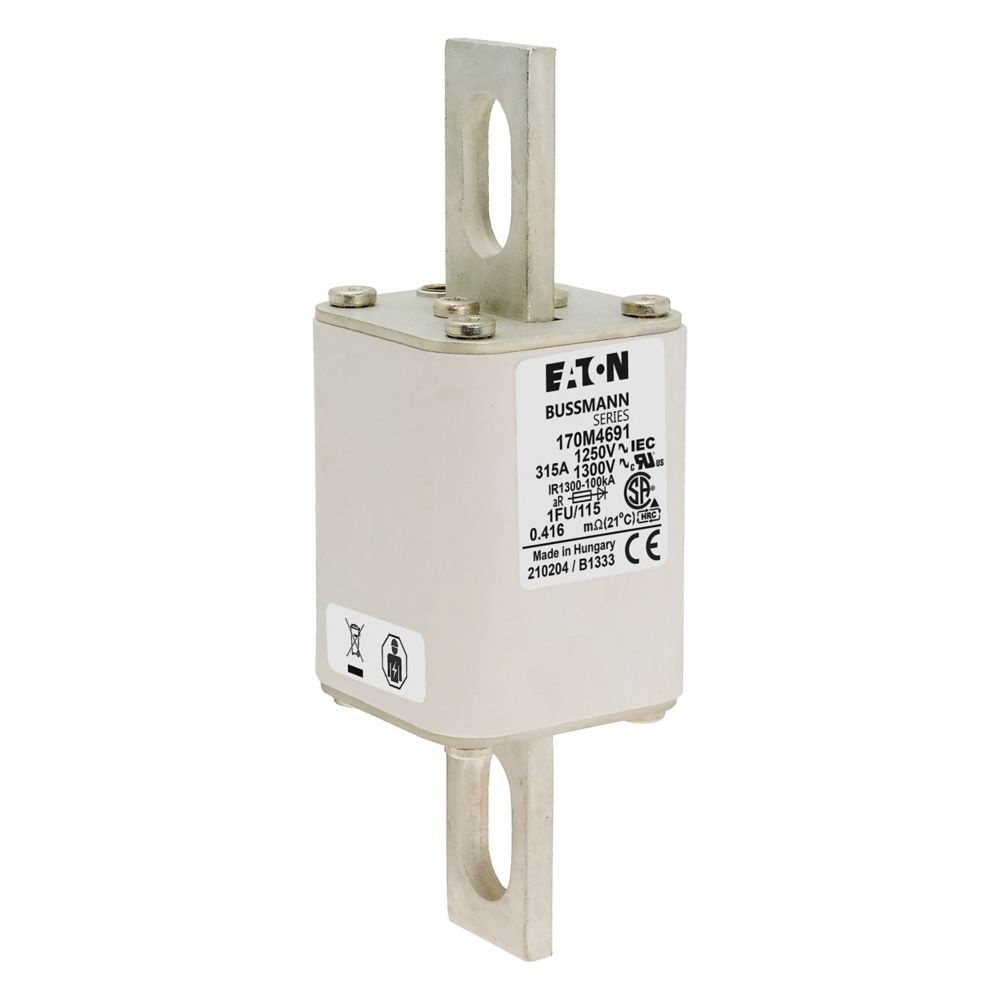

Bussmann 170M4691 High Speed Fuse
Part Number # 170M4691
SKU # 2249463
Bussmann 170M4691 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | 170M4691 |
| SKU #: | 2249463 |
| Amperage Rating: | 315, 315 A |
| Body Type: | Square |
| Class: | AR |
| Frequency Rating: | 45 to 1000, 45 to 1000 Hz |
| Indicating/Non-Indicating: | Non-Indicating |
| Interrupt Rating: | 100, 100 kA |
| Series: | 170M |
| Terminal Type: | Blade |
| Type: | Type FU/115 Style |
| Country of origin: | HU |
| Material: | Ceramic |
| Mounting type: | Flush |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121625 |
| UPC: | 00051712792899 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann 170M4691 High Speed Fuse
Brand: Bussmann
Part Number: 170M4691
Bussmann High Speed Fuse, Type FU/115 Style, Series: 170M, Non-Indicating, 315 A, 1000 VAC, 100 kA Interrupt, Class: AR, 45 to 1000 Hz, Blade Terminal, Flush Mount, Square Body Type, Ceramic, 160 mm L x 53 mm W x 69 mm H Body Size
Additional Description: BUSS-170M4691 (N) FUSE 315A 1250V 1FU/115 AR CU NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Fuse-link, high speed, 315 A, AC 1250 V, size 1, 53 x 69 x 160 mm, aR, IEC, UL
170M4691 Application
DC Common Bus, DC Drives, Power Converters/Rectifiers and Reduced Voltage Starters Applications170M4691 Item Features
- Excellent DC performance
- Low arc voltage and low energy let through
- Low watts loss
- Superior cycling capability
- https://www.youtube.com/watch?v=YMvqUyoETXk
170M4691 Standards
CSA Certified ,UL Recognized ,IEC Rated ,IEC-Einstufung ,UL Recognized ,CSA Certified ,Zgodność z IEC ,CSA Certified ,UL Recognized ,Parametry dle IEC ,UL Recognized ,CSA Certified,CE Marked,RoHS Compliant,CE-Kennzeichnung,RoHS-konform,Uzyskano oznaczenie CE,Zgodny z wymogami RoHS,Splňuje požadavky RoHS,Opatřeno značkou CESKU #2249463Part Number #170M4691UNSPSC39121625UPC00051712792899
