Part Number # 170M4809
SKU # 2214375
Image provided may only be a representation of
final product and may include optional equipment
170M4809

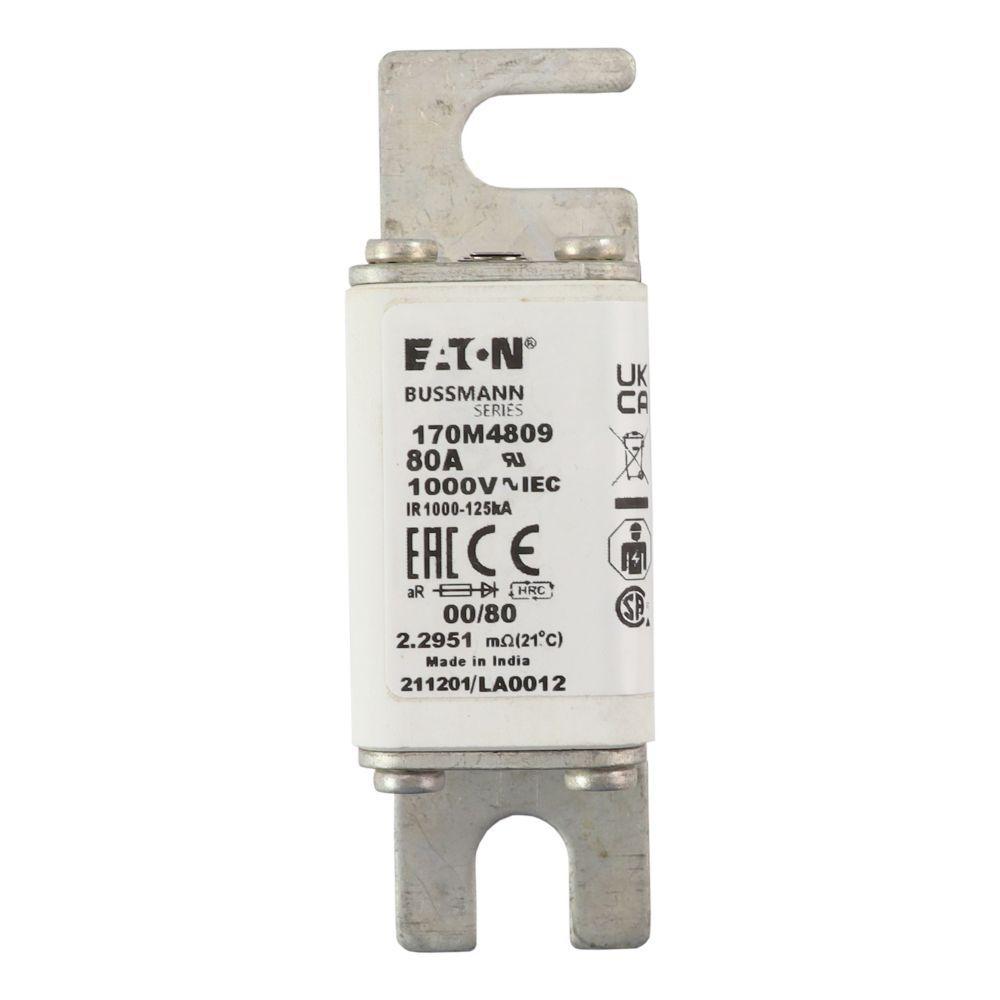

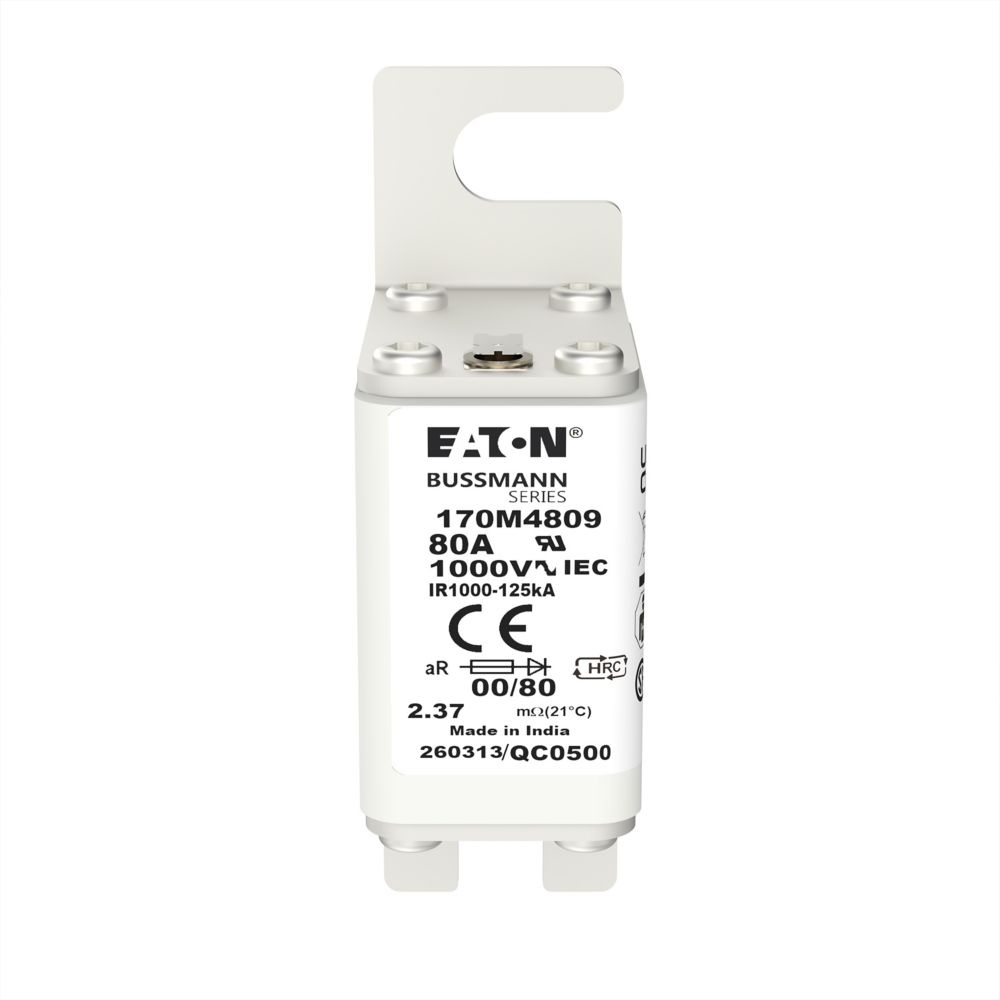

Bussmann 170M4809 High Speed Fuse
Part Number # 170M4809
SKU # 2214375
Bussmann 170M4809 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | 170M4809 |
| SKU #: | 2214375 |
| Amperage Rating: | 80, 80 A |
| Body Type: | Square |
| Class: | AR |
| Frequency Rating: | 45 to 1000, 45 to 1000 Hz |
| Indicating/Non-Indicating: | Non-Indicating |
| Interrupt Rating: | 125 kA, 150 |
| Series: | 170M |
| Terminal Type: | Blade, Blade End x Din 43-620 Blade End |
| Type: | Type 00/80 |
| Material: | Ceramic |
| Mounting type: | DIN 43-653 Stud, Stud |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121625 |
| UPC: | 00051712679237 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann 170M4809 High Speed Fuse
Brand: Bussmann
Part Number: 170M4809
Bussmann High Speed Fuse, Type 00/80, Series: 170M, Non-Indicating, 80 A, 1000 V, 125 kA Interrupt, Class: aR, 45 to 1000 Hz Frequency, Blade End x Din 43-620 Blade End Terminal, DIN 43-653 Stud Mounting, Square Body, Ceramic, 98 mm L x 30 mm W x 51 mm H Body
Additional Description: BUSS-170M4809 (N) FUSE 80A 1000V 00/80 AR NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Bussmann series high speed square body fuse,80A,125 kAIC,Class aR,Blade end X Din 43-620 blade end,DIN 43 620,Standard,Clearing at 1000V: 3500,square body with centre-bolted tags (slotted),Top fuse status indicator,500,22W
170M4809 Application
Electrical Assemblies, Panels, EOEMs, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starters Applications, Safety and Security Systems, Industrial Facilities and Factories - Facility and Critical Power170M4809 Item Features
- Excellent DC performance
- Low arc voltage and low energy let-through
- Low wattage loss
- Superior cycling capability
- Designated size 00
- https://www.youtube.com/watch?v=YMvqUyoETXk
170M4809 Standards
UL Recognized ,IEC Rated ,UL Recognized ,IEC-Einstufung ,IEC nominaal ,UL Recognized ,Classificazione IEC ,UL Recognized ,Zgodność z IEC ,UL Recognized ,Parametry dle IEC ,UL Recognized ,Clasificación IEC ,UL Recognized ,Reconnu UL ,Homologué CEI,RoHS Compliant,CE Marked,RoHS-konform,CE-Kennzeichnung,CE-markering,RoHS-compliant,Conforme a RoHS,Con marchio CE,Uzyskano oznaczenie CE,Zgodny z wymogami RoHS,Splňuje požadavky RoHS,Opatřeno značkou CE,Compatible con RoHS,Con marca CE,Conformité RoHS,Marquage CESKU #2214375Part Number #170M4809UNSPSC39121625UPC00051712679237
