170M5011

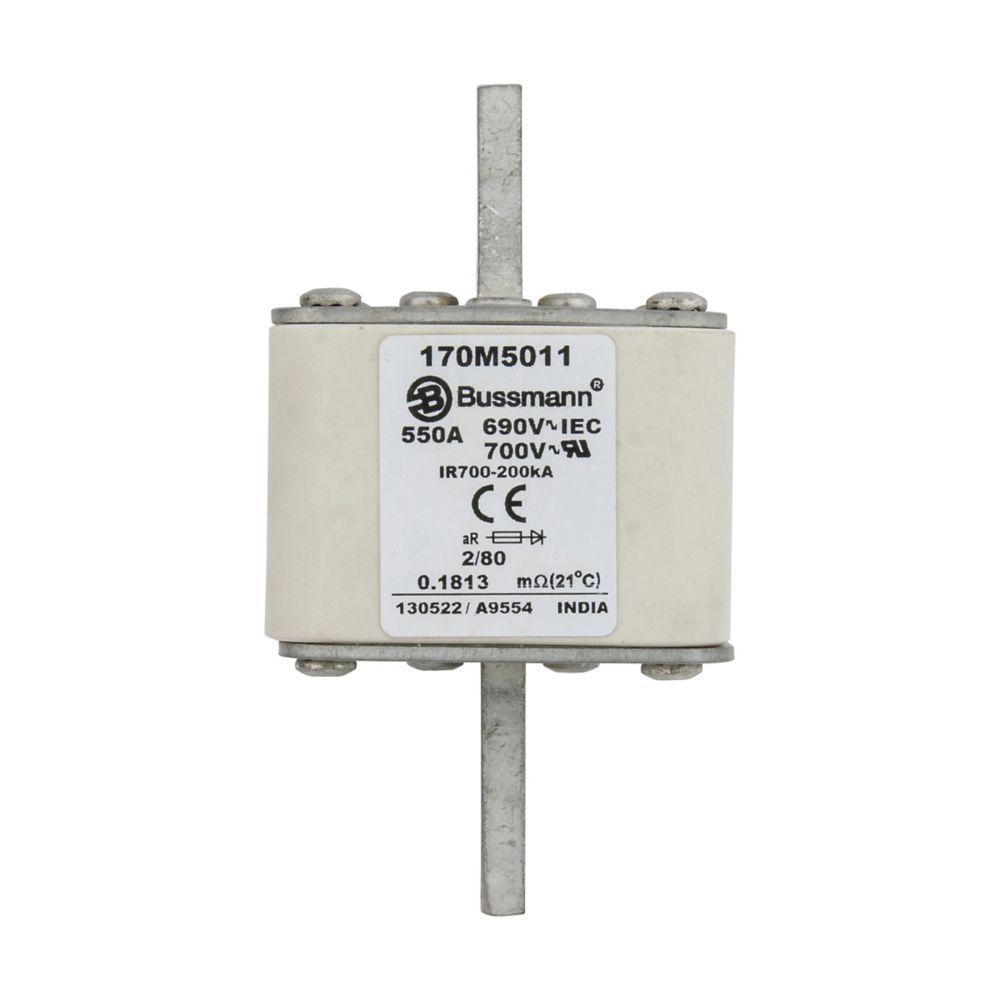

Bussmann 170M5011 High Speed Fuse
Part Number # 170M5011
SKU # 316339
Bussmann 170M5011 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | 170M5011 |
| SKU #: | 316339 |
| Amperage Rating: | 550, 550 A |
| Body Type: | Square |
| Class: | AR |
| Frequency Rating: | 45 to 1000, 45 to 1000 Hz |
| Indicating/Non-Indicating: | Indicating |
| Interrupt Rating: | 200, 200 kA |
| Series: | 170M |
| Terminal Type: | Blade, Blade End |
| Type: | Type 80 |
| Material: | Ceramic |
| Mounting type: | DIN 43-653 Stud, Stud |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121625 |
| UPC: | 00051712217217 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann 170M5011 High Speed Fuse
Brand: Bussmann
Part Number: 170M5011
Bussmann High Speed Fuse, Type 80, Series: 170M, Indicating, 550 A, 690 V, 200 kA Interrupt, Class: aR, 45 to 1000 Hz Frequency, Blade End Terminal, DIN 43-653 Stud Mounting, Square Body, Ceramic, 108 mm L x 61 mm W x 75 mm H Body
Additional Description: BUSS-170M5011 (N) FUSE 550A 690V 2/80 AR UC NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Fuse-link, high speed, 550 A, AC 690 V, DIN 2, 61 x 61 x 108 mm, aR, DIN, IEC, single indicator, 80 mm fixing centres
170M5011 Application
Electrical Assemblies, Panels, EOEMs, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starters Applications, Safety and Security Systems, Industrial Facilities and Factories - Facility and Critical Power170M5011 Item Features
- Excellent DC performance
- Low arc voltage and low energy let-through
- Low wattage loss
- Superior cycling capability
- Designated size 2
- https://www.youtube.com/watch?v=YMvqUyoETXk
170M5011 Standards
IEC Rated ,UL Recognized ,UL Recognized ,IEC-Einstufung ,UL Recognized ,IEC nominaal ,UL Recognized ,Classificazione IEC ,UL Recognized ,Zgodność z IEC ,Parametry dle IEC ,UL Recognized ,Homologué CEI ,Reconnu UL,RoHS Compliant,CE Marked,RoHS-konform,CE-Kennzeichnung,CE-markering,RoHS-compliant,Conforme a RoHS,Con marchio CE,Uzyskano oznaczenie CE,Zgodny z wymogami RoHS,Opatřeno značkou CE,Splňuje požadavky RoHS,Conformité RoHS,Marquage CESKU #316339Part Number #170M5011UNSPSC39121625UPC00051712217217
