170M5167
Bussmann 170M5167
Part Number # 170M5167
SKU # 2468566
$3837.21 / 3Each
Typical price:$7802.97 / Each
Bussmann 170M5167 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | 170M5167 |
| SKU #: | 2468566 |
| Amperage Rating: | 1100 A |
| Body Type: | Square |
| Class: | AR |
| Indicating/Non-Indicating: | Non-Indicating |
| Interrupt Rating: | 200 kAIC |
| Terminal Type: | Blade End x Blade End |
| Mounting type: | DIN 43 620 Blade |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121625 |
| UPC: | 00051712260367 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$3837.21 / 3Each
Typical price:$7802.97 / Each
Quantity:

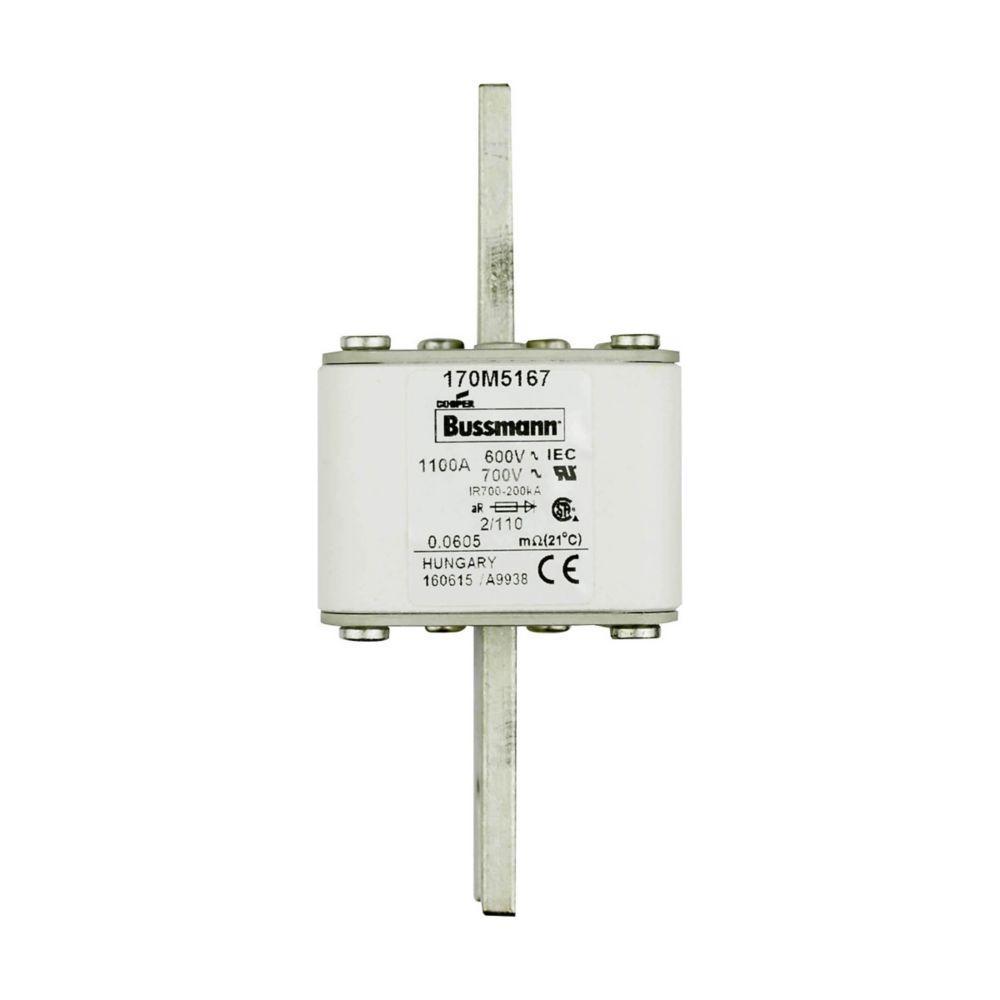

- Bussmann High Speed Fuse, Indicating/Non-Indicating: Non-Indicating, 1100 A, 690/700 V AC, 200 kAIC Interrupt, Class: AR, Blade End x Blade End Terminal, DIN 43 620 Blade Mount, Square Body Type, 5.433 in L x 0.315 in W x 2.087 in H Body Size
170M5167 Application
Critical Power, Electrical Assemblies, Panels and EOEMs, Industrial Facilities and Factory Facilities, Safety and Security Systems, DC Common Bus, DC Drives, Power Converters and Rectifiers170M5167 Item Features
- Package Type: Standard
- Clearing (I2T): Clearing at 660V: 1600000
- Connection Type: Blade End x Blade End
- Width: 0.315 in
- Weight: 1.6456 lbs
- Clearing Loss: 120
- Length: 5.433 in
- Pre Arc (I2T): Current pre-arc: 245000
- Height: 2.087 in
- https://www.youtube.com/watch?v=YMvqUyoETXk
170M5167 Standards
IEC Rated ,UL Recognized ,IEC-Einstufung ,UL Recognized ,UL Recognized ,IEC nominal ,UL Recognized ,Classificazione IEC ,UL Recognized ,Zgodność z IEC ,Parametry dle IEC ,UL Recognized ,Reconnu UL ,Homologué CEI,CE Marked,RoHS Compliant,CE-Kennzeichnung,RoHS-konform,CE-markering,RoHS-compliant,Conforme a RoHS,Con marchio CE,Zgodny z wymogami RoHS,Uzyskano oznaczenie CE,Splňuje požadavky RoHS,Opatřeno značkou CE,Marquage CE,Conformité RoHSSKU #2468566Part Number #170M5167UNSPSC39121625UPC00051712260367
Image provided may only be a representation of final product and may include optional equipment
