Part Number # 170M5690
SKU # 2342220
Image provided may only be a representation of
final product and may include optional equipment
170M5690

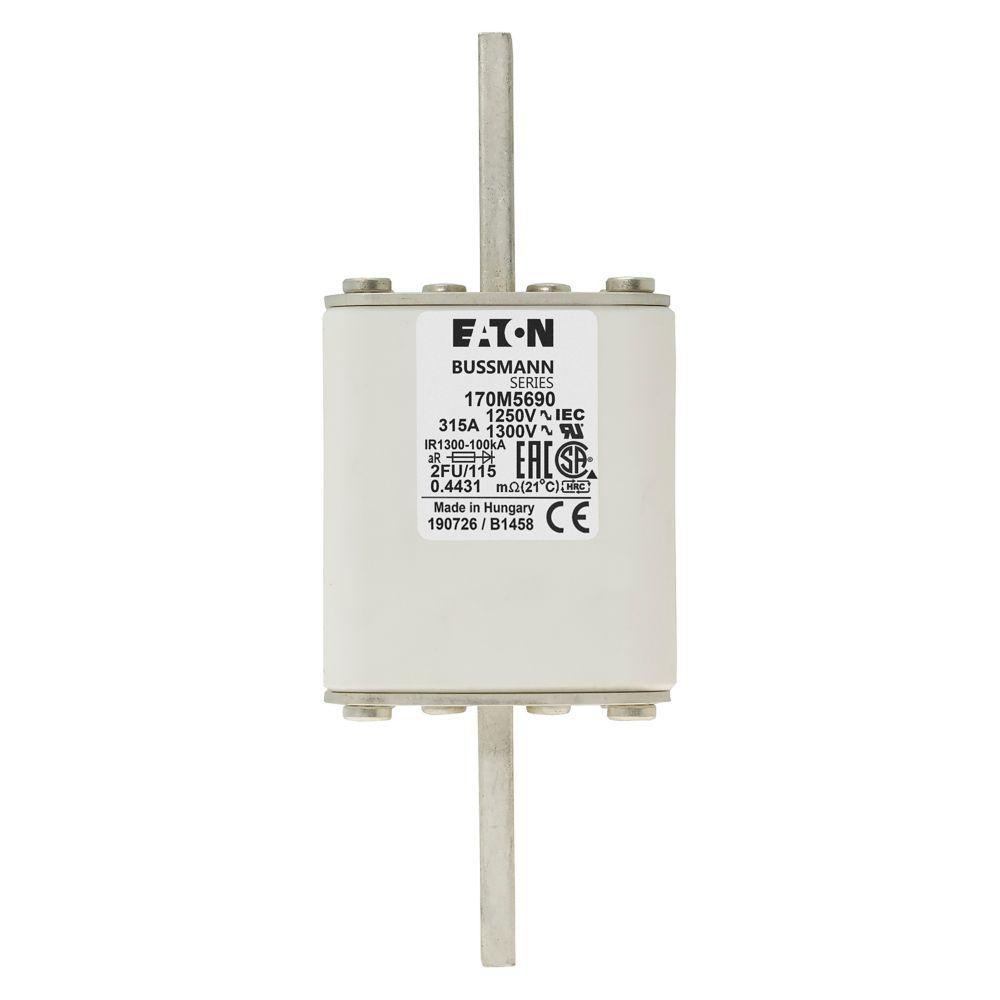

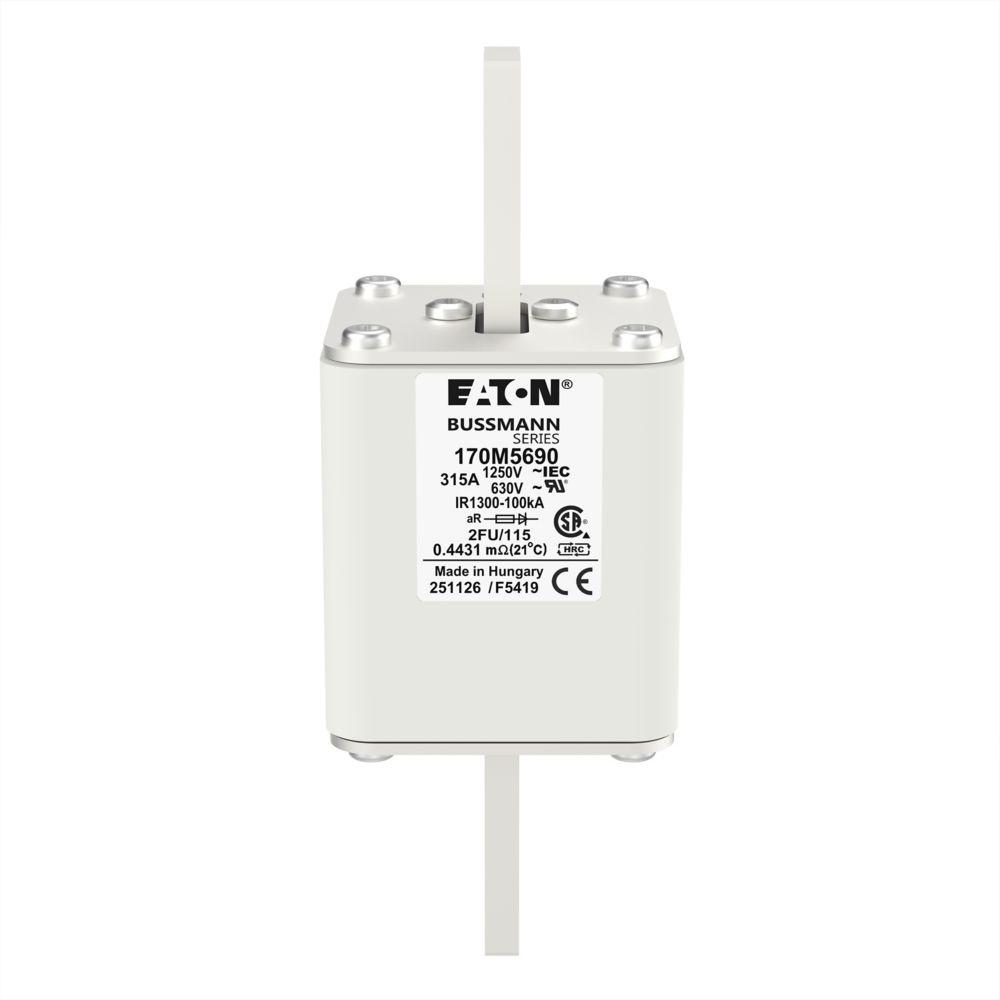

Bussmann 170M5690 Semiconductor Fuse
Part Number # 170M5690
SKU # 2342220
$640.30 / Each
Typical price:$1302.05 / Each
Bussmann 170M5690 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | 170M5690 |
| SKU #: | 2342220 |
| Amperage Rating: | 315, 315 A |
| Body Type: | Square |
| Class: | Class AR |
| Indicating/Non-Indicating: | Non-Indicating |
| Interrupt Rating: | 100, 100 kA |
| Country of origin: | HU |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121625 |
| UPC: | 00051712262101 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$640.30 / Each
Typical price:$1302.05 / Each
Quantity:
Bussmann 170M5690 Semiconductor Fuse
Brand: Bussmann
Part Number: 170M5690
Bussmann Semiconductor Fuse, Non-Indicating, 315 A, 690 VAC, 100 kA Interrupt, Class: Class AR, Square Body Type
Additional Description: BUSS-170M5690 (N) FUSE 315A 1250V 2FU/115 AR CU NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Fuse-link, high speed, 315 A, AC 1250 V, size 2, 61 x 77 x 160 mm, aR, IEC, UL
170M5690 Application
DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starters Applications170M5690 Item Features
- Package Type: Standard
- Watt Losses: 75 W
- Clearing (I2T): Clearing at 1000V: 77500 , Clearing at 1250V: 105000
- Width: 0.315 in
- Weight: 1.6456 lbs
- Length: 5.433 in
- Pre Arc (I2T): 13000
- Height: 2.087 in
- https://www.youtube.com/watch?v=YMvqUyoETXk
170M5690 Standards
UL Recognized ,CSA Certified ,IEC Rated ,IEC-Einstufung ,CSA Certified ,UL Recognized ,Zgodność z IEC ,CSA Certified ,UL Recognized,CE Marked,RoHS Compliant,CE-Kennzeichnung,RoHS-konform,Zgodny z wymogami RoHS,Uzyskano oznaczenie CESKU #2342220Part Number #170M5690UNSPSC39121625UPC00051712262101
