Part Number # 170M5712
SKU # 2294601
Image provided may only be a representation of
final product and may include optional equipment
170M5712

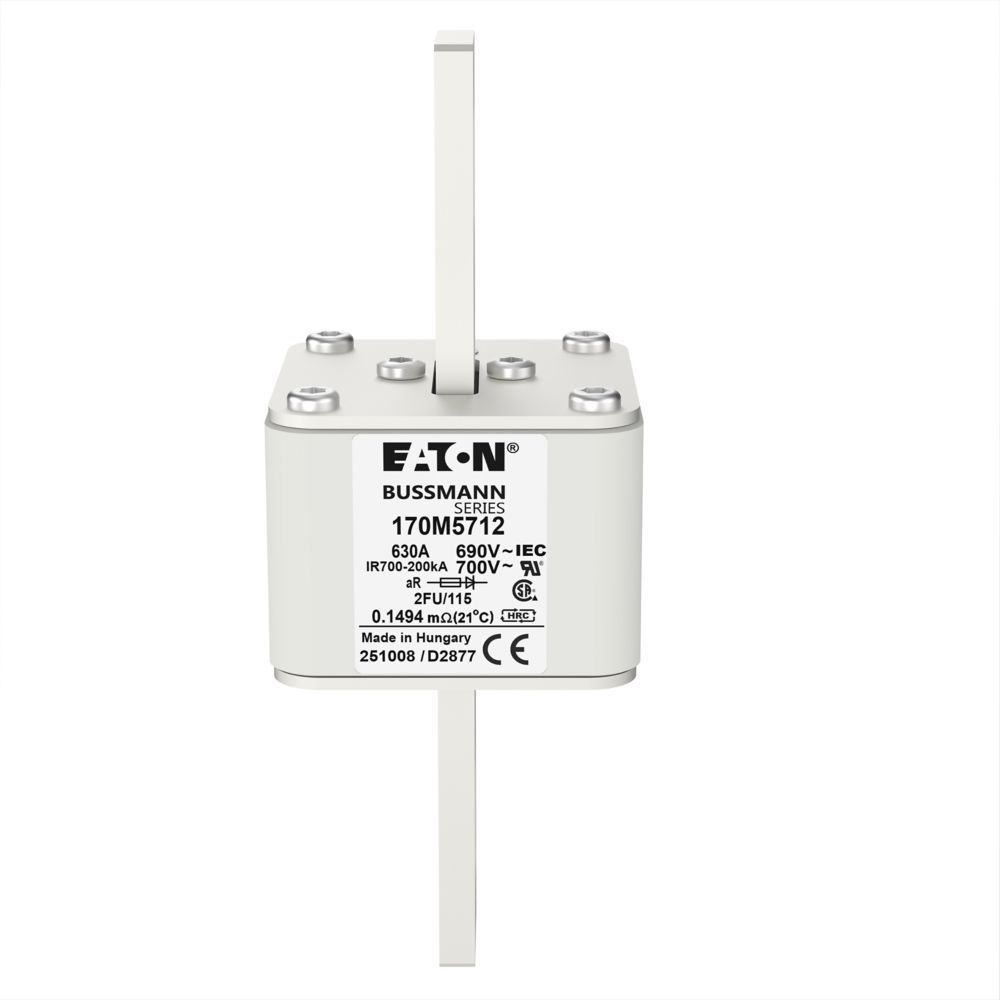

Bussmann 170M5712 High Speed Fuse
Part Number # 170M5712
SKU # 2294601
$1743.09 / 3Each
Typical price:$3544.56 / Each
Bussmann 170M5712 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | 170M5712 |
| SKU #: | 2294601 |
| Amperage Rating: | 630, 630 A |
| Body Type: | Square, Square Blade |
| Class: | AR |
| Frequency Rating: | 45 to 1000, 45 to 1000 Hz |
| Indicating/Non-Indicating: | Non-Indicating |
| Interrupt Rating: | 200, 200 kA |
| Series: | 170M |
| Terminal Type: | Blade, Blade End, Bolt Down |
| Type: | Type FU/115 US Style |
| Material: | Ceramic |
| Mounting type: | Stud |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121625 |
| UPC: | 00051712816663 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1743.09 / 3Each
Typical price:$3544.56 / Each
Quantity:
Bussmann 170M5712 High Speed Fuse
Brand: Bussmann
Part Number: 170M5712
Bussmann High Speed Fuse, Type FU/115 US Style, Series: 170M, Non-Indicating, 630 A, 690 V, 200 kA Interrupt, Class: aR, 45 to 1000 Hz Frequency, Blade End Terminal, Stud Mounting, Square Body, Ceramic, 159 mm L x 61 mm W x 77 mm H Body
Additional Description: BUSS-170M5712 (N) FUSE 630A 690V 2FU/115 AR UC NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Fuse-link, high speed, 630 A, AC 690 V, size 2, 61 x 77 x 135 mm, aR, IEC, UL
170M5712 Application
Electrical Assemblies, Panels, EOEMs, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starters Applications, Safety and Security Systems, Industrial Facilities and Factories - Facility and Critical Power170M5712 Item Features
- Excellent DC performance
- Low arc voltage and low energy let-through
- Low wattage loss
- Superior cycling capability
- Designated size 2
- https://www.youtube.com/watch?v=YMvqUyoETXk
170M5712 Standards
IEC Rated ,UL Recognized ,IEC-Einstufung ,UL Recognized ,IEC nominaal ,UL Recognized ,UL Recognized ,Classificazione IEC ,UL Recognized ,Zgodność z IEC ,UL Recognized ,Parametry dle IEC ,Homologué CEI ,Reconnu UL,RoHS Compliant,CE Marked,CE-Kennzeichnung,RoHS-konform,CE-markering,RoHS-compliant,Con marchio CE,Conforme a RoHS,Uzyskano oznaczenie CE,Zgodny z wymogami RoHS,Splňuje požadavky RoHS,Opatřeno značkou CE,Conformité RoHS,Marquage CESKU #2294601Part Number #170M5712UNSPSC39121625UPC00051712816663
