170M5810D

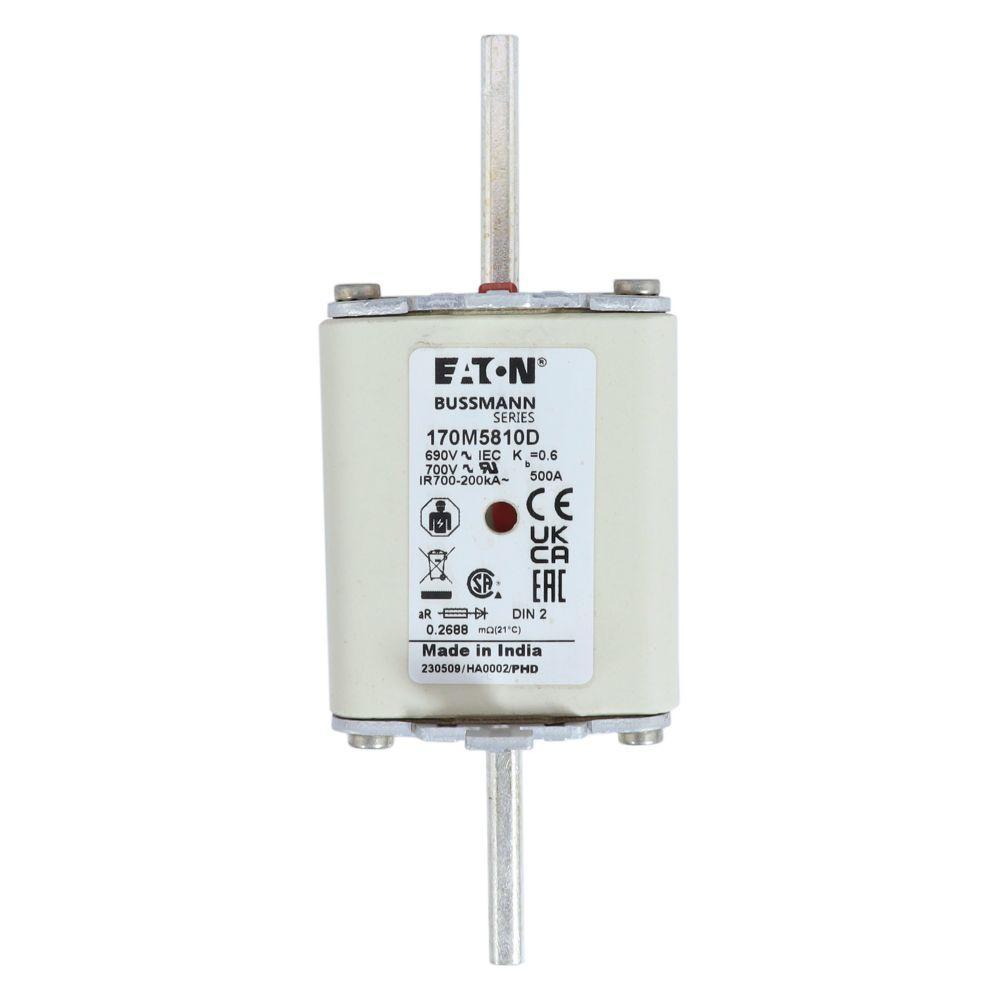

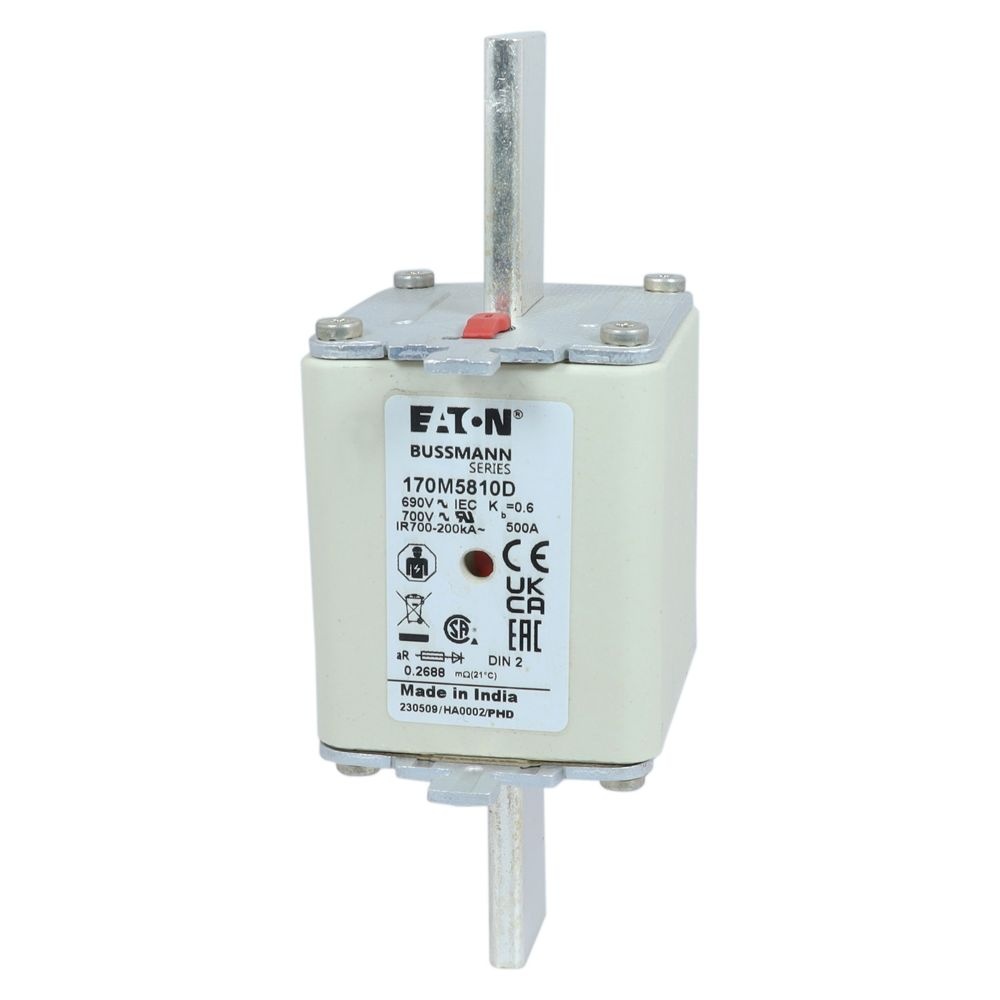

Bussmann 170M5810D Semiconductor Fuse
Part Number # 170M5810D
SKU # 2273120
Bussmann 170M5810D Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | 170M5810D |
| SKU #: | 2273120 |
| Amperage Rating: | 500, 500 A |
| Body Type: | Square |
| Class: | AR |
| Indicating/Non-Indicating: | Non-Indicating |
| Interrupt Rating: | 200, 200 kA |
| Series: | 170M |
| Terminal Type: | Din 43-620 Blade End |
| Type: | Semi-Conductor |
| Mounting type: | DIN 43 620 Blade |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121625 |
| UPC: | 00051712334501 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann 170M5810D Semiconductor Fuse
Brand: Bussmann
Part Number: 170M5810D
Bussmann High Speed Fuse, Semi-Conductor, Series: 170M, Non-Indicating, 500 A, 690 V, 200 kA Interrupt, Class: aR, Din 43-620 Blade End Terminal, DIN 43 620 Blade Mounting, Square Body, 150 mm L x 55 mm W x 71 mm H Body
Additional Description: BUSS-170M5810D (N) FUSE 500A 690V aR DIN 2 HSDNH NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Bussmann series high speed square body fuse, 700V (UL), 690V (IEC), 500A, 200 kAIC, Combination fuse status indicator, Fuse, Din 43-620 blade end X Din 43-620 blade end, Class aR
170M5810D Application
Critical Power, Electrical Assemblies, Panels and EOEMs, Industrial Facilities and Factory Facilities, Safety and Security Systems, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starter Applications170M5810D Item Features
- Low arc voltage
- Excellent DC performance
- Superior cycling capability
- Designated size 2
- 34 W power loss
- https://www.youtube.com/watch?v=YMvqUyoETXk
170M5810D Standards
IEC Rated ,UL Recognized ,UL Recognized ,IEC-Einstufung ,UL Recognized ,Classificazione IEC ,IEC nominaal ,UL Recognized ,UL Recognized ,Zgodność z IEC ,Parametry dle IEC ,UL Recognized ,UL Recognized ,Clasificación IEC,CE Marked,RoHS Compliant,CE-Kennzeichnung,RoHS-konform,Con marchio CE,Conforme a RoHS,RoHS-compliant,CE-markering,Uzyskano oznaczenie CE,Zgodny z wymogami RoHS,Splňuje požadavky RoHS,Opatřeno značkou CE,Compatible con RoHS,Con marca CESKU #2273120Part Number #170M5810DUNSPSC39121625UPC00051712334501
