Part Number # 170M5813D
SKU # 2412327
Image Disclaimers Message
170M5813D

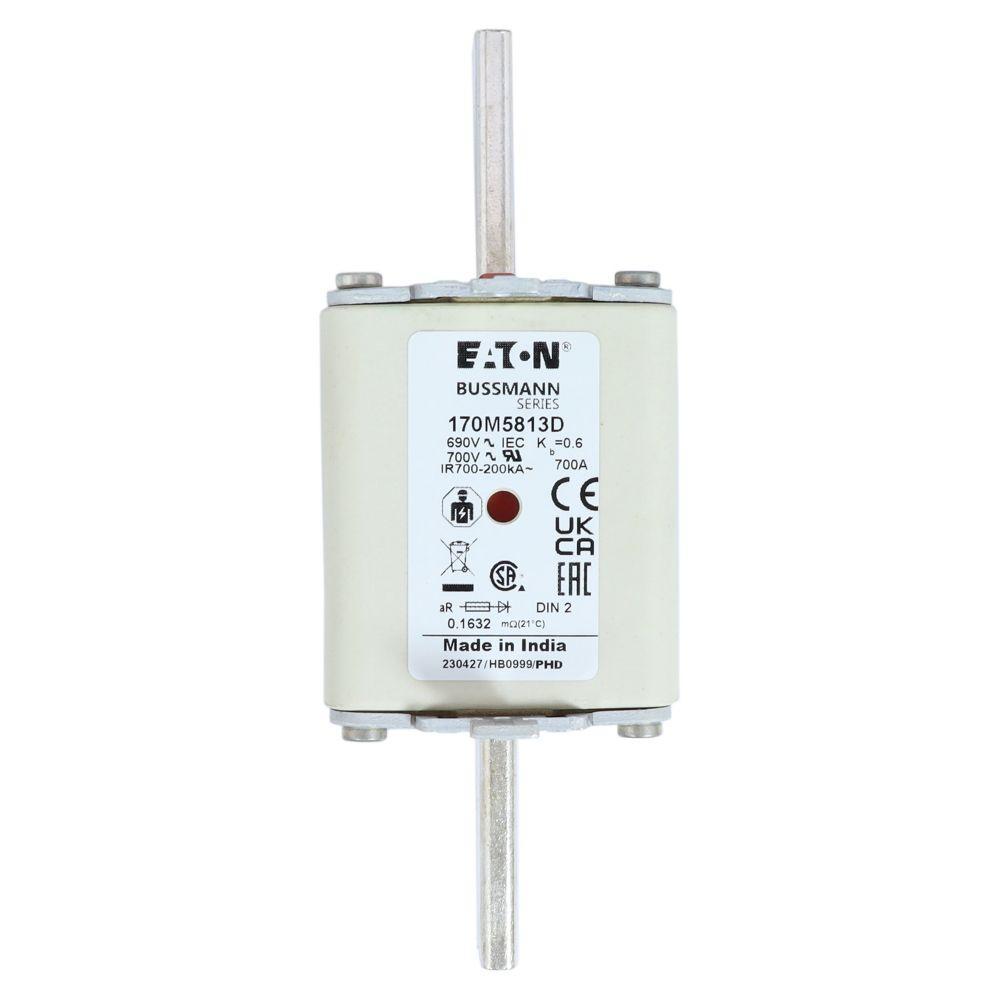

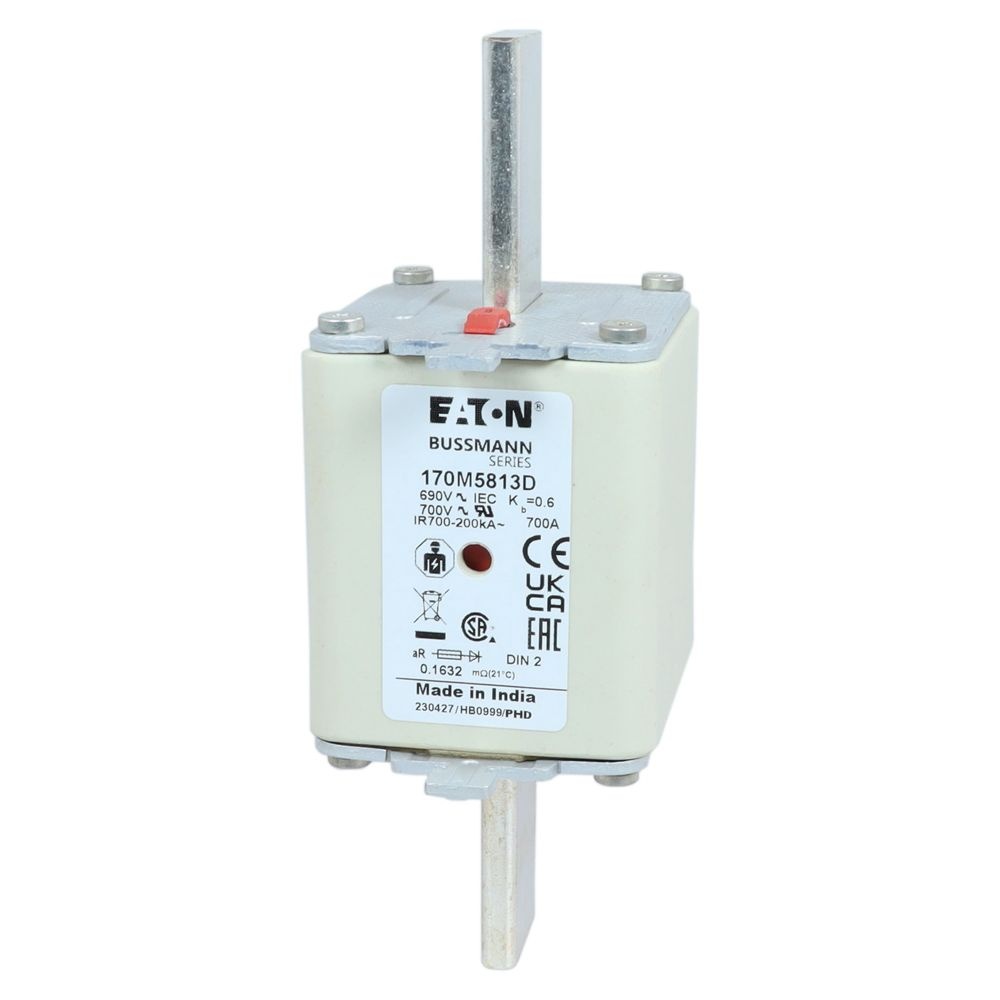

Bussmann 170M5813D High Speed Fuse
Part Number # 170M5813D
SKU # 2412327
$592.73 / Each
Typical price:$1205.31 / Each
Bussmann 170M5813D Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | 170M5813D |
| SKU #: | 2412327 |
| Amperage Rating: | 700 A |
| Body Type: | Square |
| Class: | AR |
| Frequency Rating: | 45 to 1000 Hz |
| Indicating/Non-Indicating: | Non-Indicating |
| Interrupt Rating: | 200 kA |
| Series: | 170M |
| Terminal Type: | Din 43-620 Blade End |
| Type: | Square Body Type T |
| Material: | Ceramic |
| Mounting type: | Stud |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121625 |
| UPC: | 00051712334983 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$592.73 / Each
Typical price:$1205.31 / Each
Quantity:
- Bussmann High Speed Fuse, Square Body Type T, Series: 170M, Non-Indicating, 700 A, 690 V, 200 kA Interrupt, Class: aR, 45 to 1000 Hz Frequency, Din 43-620 Blade End Terminal, Stud Mounting, Square Body, Dual Element, Ceramic, 150 mm L x 55 mm W x 71 mm H Body
170M5813D Application
Critical Power, Electrical Assemblies, Panels and EOEMs, Industrial Facilities and Factory Facilities, Safety and Security Systems, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starter Applications170M5813D Item Features
- Excellent DC performance
- Low arc voltage and low energy let-through
- Low wattage loss
- Superior cycling capability
- Square body DIN 43620 blade high speed fuses with dual indicator system one indicator in the fuse body and another one in the metallic end plate
- Interchangeable with existing high speed DIN 43620 fuses for the protection of UPS, soft starters, solid state relays, variable speed drives, rectifiers and inverters
- Low arc voltage, excellent DC performance, superior cycling capability, designated size 2
- https://www.youtube.com/watch?v=YMvqUyoETXk
170M5813D Standards
IEC Rated ,UL Recognized ,IEC-Einstufung ,UL Recognized ,Classificazione IEC ,UL Recognized ,UL Recognized ,IEC nominaal ,UL Recognized ,Zgodność z IEC ,Parametry dle IEC ,UL Recognized ,Clasificación IEC ,UL Recognized ,Reconnu UL ,Homologué CEI,CE Marked,RoHS Compliant,CE-Kennzeichnung,RoHS-konform,Con marchio CE,Conforme a RoHS,RoHS-compliant,CE-markering,Uzyskano oznaczenie CE,Zgodny z wymogami RoHS,Opatřeno značkou CE,Splňuje požadavky RoHS,Compatible con RoHS,Con marca CE,Conformité RoHS,Marquage CESKU #2412327Part Number #170M5813DUNSPSC39121625UPC00051712334983
