170M6009

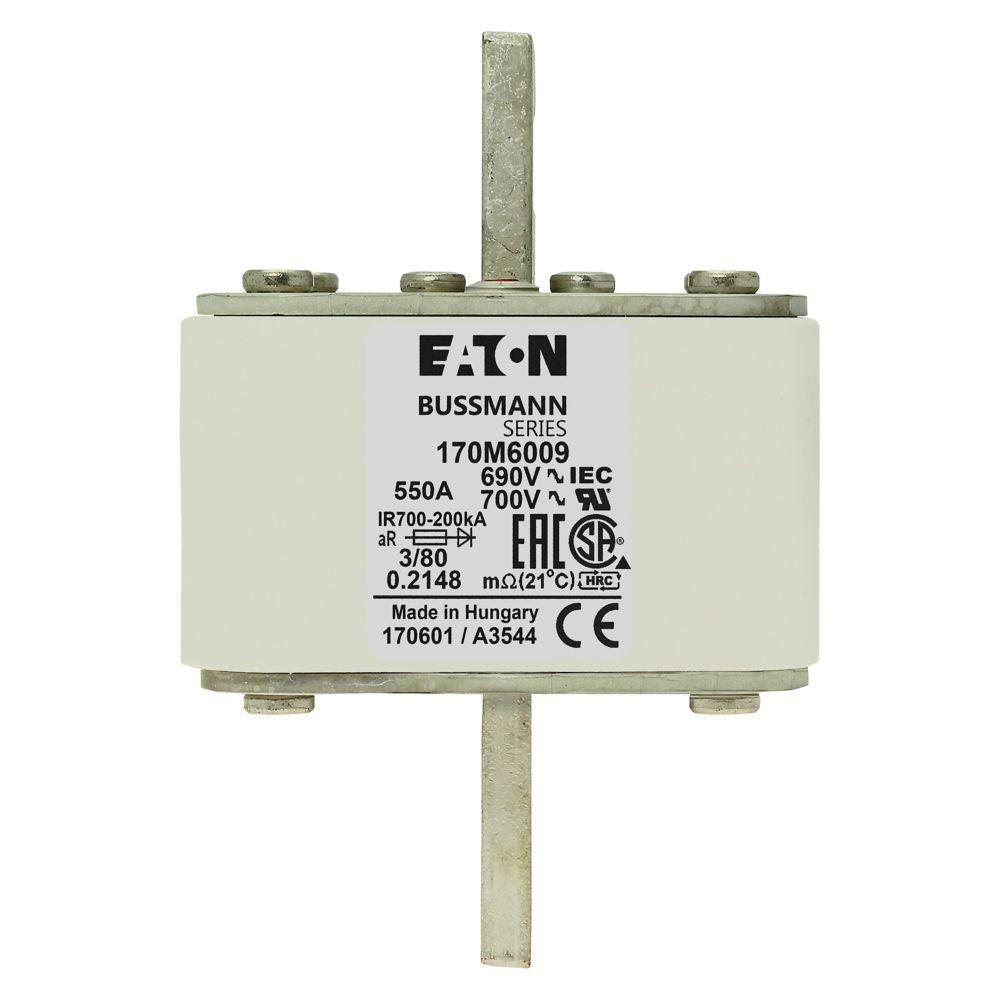

Bussmann 170M6009 Semiconductor Fuse
Part Number # 170M6009
SKU # 2118791
Bussmann 170M6009 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | 170M6009 |
| SKU #: | 2118791 |
| Amperage Rating: | 550, 550 A |
| Body Type: | Square |
| Class: | AR, Class AR |
| Indicating/Non-Indicating: | Non-Indicating |
| Interrupt Rating: | 200, 200 kA |
| Series: | 170M |
| Terminal Type: | Blade End |
| Type: | Semi-Conductor |
| Mounting type: | DIN 43 620 Blade, DIN 43 620 Blade Style |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121625 |
| UPC: | 00051712262545 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann 170M6009 Semiconductor Fuse
Brand: Bussmann
Part Number: 170M6009
Bussmann High Speed Fuse, Semi-Conductor, Series: 170M, Non-Indicating, 550 A, 690 V, 200 kA Interrupt, Class: aR, Blade End Terminal, DIN 43 620 Blade Style Mounting, Square Body, 5.433 in L x 0.315 in W x 2.087 in H Body
Additional Description: BUSS-170M6009 (N) FUSE 550A 690V 3/80 AR UC NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Fuse-link, high speed, 550 A, AC 690 V, DIN 3, 76 x 76 x 109 mm, aR, DIN, IEC, single indicator
170M6009 Application
Electrical Assemblies, Panels and EOEMs, DC Common Bus, DC Drives, Power Converters and Rectifiers, Safety and Security Systems, Industrial Facilities and Factories - Facility and Critical Power Applications170M6009 Item Features
- Package type - standard
- Clearing (I2T): clearing at 660 V: 135000
- Blade end connection
- Clearing loss: 100
- Pre Arc (I2T): Current pre-arc: 19500
- https://www.youtube.com/watch?v=YMvqUyoETXk
170M6009 Standards
UL Recognized ,IEC Rated ,IEC-Einstufung ,UL Recognized ,IEC nominaal ,UL Recognized ,UL Recognized ,Classificazione IEC ,UL Recognized ,Zgodność z IEC ,UL Recognized ,Parametry dle IEC ,Reconnu UL ,Homologué CEI,CE Marked,RoHS Compliant,RoHS-konform,CE-Kennzeichnung,CE-markering,RoHS-compliant,Conforme a RoHS,Con marchio CE,Uzyskano oznaczenie CE,Zgodny z wymogami RoHS,Splňuje požadavky RoHS,Opatřeno značkou CE,Conformité RoHS,Marquage CESKU #2118791Part Number #170M6009UNSPSC39121625UPC00051712262545
