Part Number # 170M6021
SKU # 2441220
170M6021

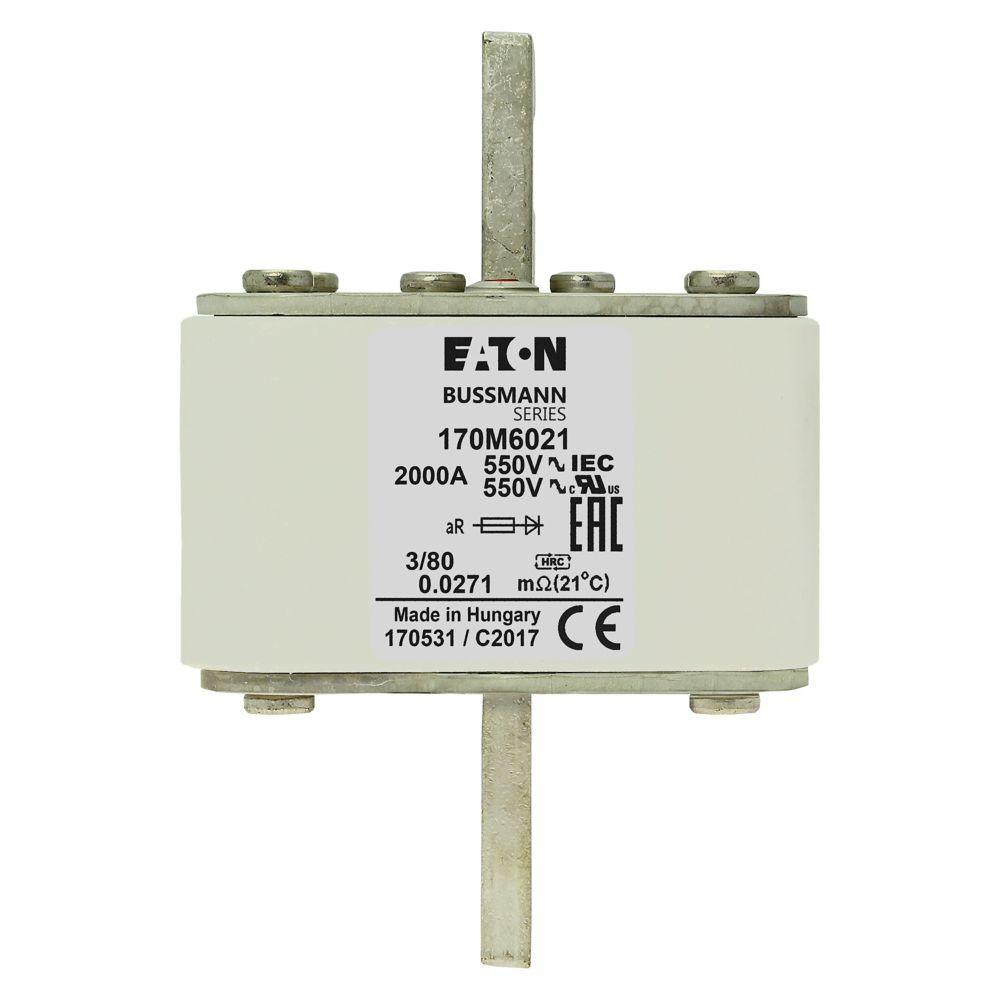

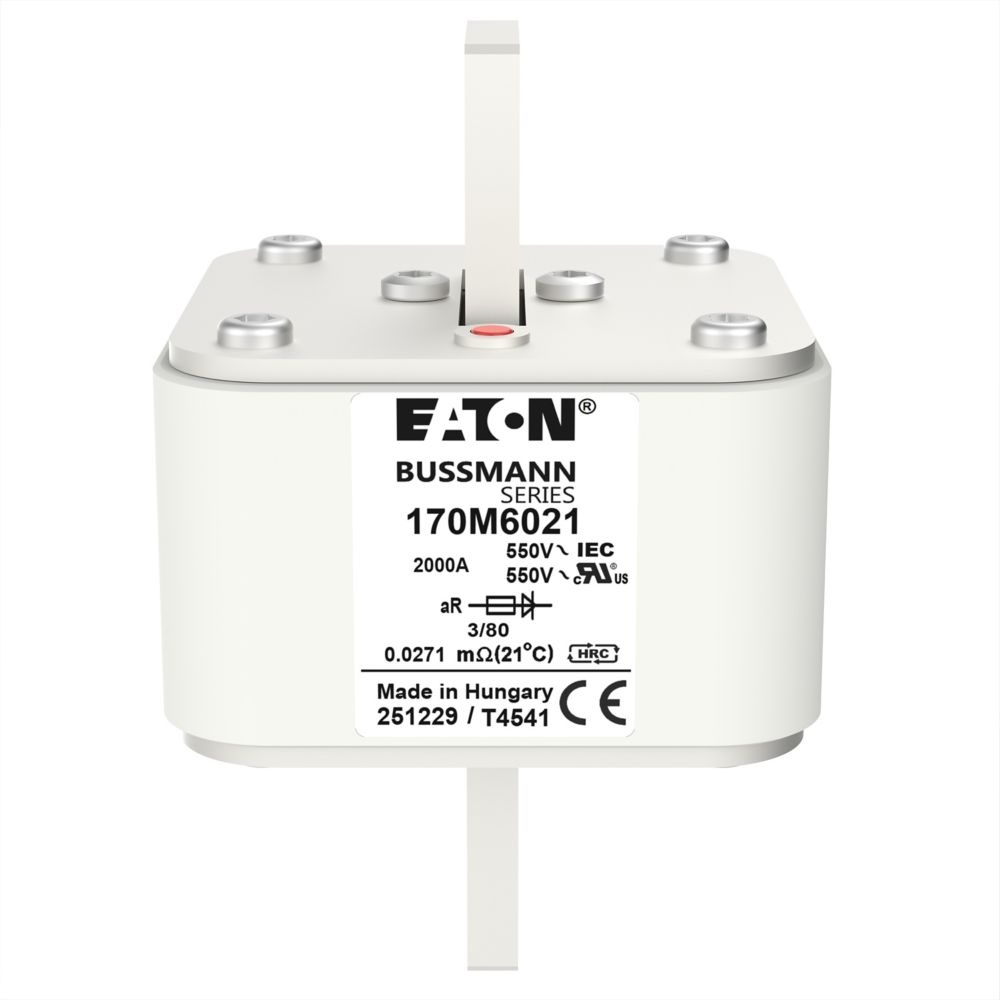

Bussmann 170M6021 High Speed Fuse
Part Number # 170M6021
SKU # 2441220
Bussmann 170M6021 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | 170M6021 |
| SKU #: | 2441220 |
| Amperage Rating: | 2000 A |
| Body Type: | Square |
| Class: | AR |
| Indicating/Non-Indicating: | Non-Indicating |
| Interrupt Rating: | 200 kA |
| Series: | 170M |
| Terminal Type: | Blade End |
| Type: | Semi-Conductor |
| Mounting type: | DIN 43 620 Blade Style |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121625 |
| UPC: | 00051712262644 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann 170M6021 High Speed Fuse
Brand: Bussmann
Part Number: 170M6021
Bussmann High Speed Fuse, Semi-Conductor, Series: 170M, Non-Indicating, 2000 A, 550 V, 200 kA Interrupt, Class: aR, Blade End Terminal, DIN 43 620 Blade Style Mounting, Square Body, 5.433 in L x 0.315 in W x 2.087 in H Body
Additional Description: BUSS-170M6021 (N) FUSE 2000A 550V 3/80 AR UR NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Bussmann series high speed square body fuse, 550V (IEC/UL), 2000A, 200 kAIC, Top fuse status indicator, Blade end X blade end, Class aR, DIN 43 620
170M6021 Application
Electrical Assemblies, Panels and EOEMs, DC Common Bus, DC Drives, Power Converters and Rectifiers, Safety and Security Systems, Industrial Facilities and Factories - Facility and Critical Power Applications170M6021 Item Features
- Package type - standard
- Clearing (I2T): clearing at 660 V: 6350000
- Blade end connection
- Clearing loss: 175
- Pre Arc (I2T): Current pre-arc: 1150000
- https://www.youtube.com/watch?v=YMvqUyoETXk
170M6021 Standards
IEC Rated ,UL Recognized ,IEC-Einstufung ,UL Recognized ,UL Recognized ,IEC nominaal ,UL Recognized ,Classificazione IEC ,UL Recognized ,Zgodność z IEC ,UL Recognized ,Parametry dle IEC ,UL Recognized ,Clasificación IEC ,Reconnu UL ,Homologué CEI,CE Marked,RoHS Compliant,CE-Kennzeichnung,RoHS-konform,CE-markering,RoHS-compliant,Con marchio CE,Conforme a RoHS,Zgodny z wymogami RoHS,Uzyskano oznaczenie CE,Splňuje požadavky RoHS,Opatřeno značkou CE,Compatible con RoHS,Con marca CE,Marquage CE,Conformité RoHSSKU #2441220Part Number #170M6021UNSPSC39121625UPC00051712262644
Image provided may only be a representation of final product and may include optional equipment
