Part Number # 170M6169
SKU # 2385584
170M6169

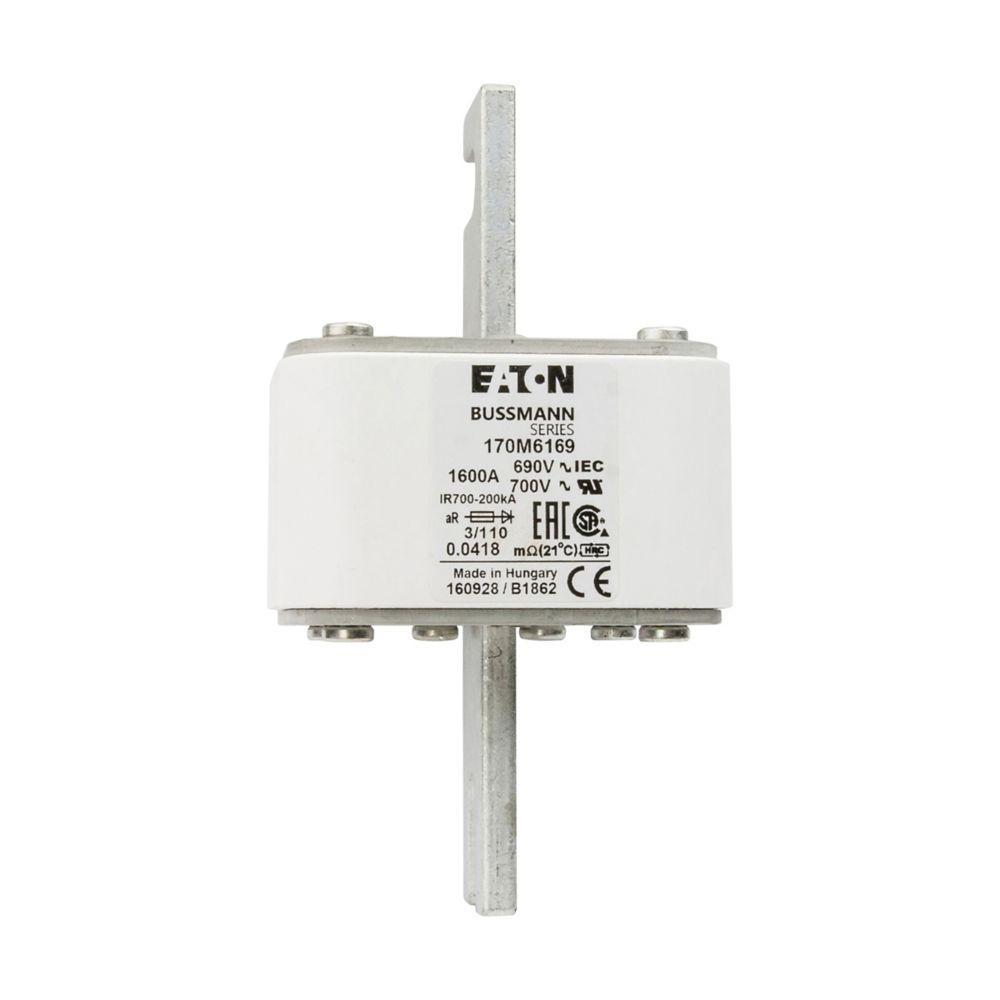

Bussmann 170M6169 Type 110 High Speed Fuse, 1600 A, 690 V, 200 kA Interrupt, Class: aR, Square Body
Part Number # 170M6169
SKU # 2385584
Bussmann 170M6169 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | 170M6169 |
| SKU #: | 2385584 |
| Amperage Rating: | 1600, 1600 A |
| Body Type: | Square |
| Class: | AR |
| Frequency Rating: | 45 to 1000, 45 to 1000 Hz |
| Indicating/Non-Indicating: | Indicating |
| Interrupt Rating: | 200, 200 kA |
| Series: | 170M |
| Terminal Type: | Blade End |
| Type: | Type 110 |
| Country of origin: | HU |
| Material: | Ceramic |
| Mounting type: | DIN 43-653 Stud |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121625 |
| UPC: | 00051712263153 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann 170M6169 Type 110 High Speed Fuse, 1600 A, 690 V, 200 kA Interrupt, Class: aR, Square Body
Brand: Bussmann
Part Number: 170M6169
Bussmann High Speed Fuse, Type 110, Series: 170M, Indicating, 1600 A, 690 V, 200 kA Interrupt, Class: aR, 45 to 1000 Hz Frequency, Blade End Terminal, DIN 43-653 Stud Mounting, Square Body, Ceramic, 109 mm L x 76 mm W x 90 mm H Body
Additional Description: BUSS-170M6169 (N) FUSE 1600A 690V 3/110 AR UC NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Fuse-link, high speed, 1600 A, AC 690 V, DIN 3, 76 x 90 x 139 mm, aR, DIN, IEC, single indicator
170M6169 Application
Electrical Assemblies, Panels, EOEMs, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starters Applications, Safety and Security Systems, Industrial Facilities and Factories - Facility and Critical Power170M6169 Item Features
- Excellent DC performance
- Low arc voltage and low energy let-through
- Low wattage loss
- Superior cycling capability
- Designated size 3
- https://www.youtube.com/watch?v=YMvqUyoETXk
170M6169 Standards
IEC Rated ,UL Recognized ,UL Recognized ,IEC-Einstufung ,IEC nominaal ,UL Recognized ,UL Recognized ,Classificazione IEC ,Zgodność z IEC ,UL Recognized ,UL Recognized ,Parametry dle IEC,CE Marked,RoHS Compliant,CE-Kennzeichnung,RoHS-konform,CE-markering,RoHS-compliant,Conforme a RoHS,Con marchio CE,Uzyskano oznaczenie CE,Zgodny z wymogami RoHS,Splňuje požadavky RoHS,Opatřeno značkou CESKU #2385584Part Number #170M6169UNSPSC39121625UPC00051712263153
Image provided may only be a representation of final product and may include optional equipment
