Part Number # 170M6215
SKU # 2455785
170M6215
Bussmann 170M6215
Part Number # 170M6215
SKU # 2455785
Bussmann 170M6215 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | 170M6215 |
| SKU #: | 2455785 |
| Amperage Rating: | 1100 A |
| Body Type: | Square |
| Class: | AR |
| Indicating/Non-Indicating: | Non-Indicating |
| Interrupt Rating: | 200 kA |
| Series: | 170M |
| Terminal Type: | Blade End |
| Type: | Semi-Conductor |
| Mounting type: | DIN 43 620 Blade Style |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121625 |
| UPC: | 00051712263399 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann 170M6215
Brand: Bussmann
Part Number: 170M6215
Bussmann High Speed Fuse, Semi-Conductor, Series: 170M, Non-Indicating, 1100 A, 690 V, 200 kA Interrupt, Class: aR, Blade End Terminal, DIN 43 620 Blade Style Mounting, Square Body, 5.433 in L x 0.315 in W x 2.087 in H Body
Additional Description: BUSS-170M6215 (N) FUSE 1100A 690V 3TN/110 AR UC NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Bussmann series high speed square body fuse, 690 V (IEC), 700 V (UL), 1100 A, Fuse size: 3, Top fuse status indicator, DIN 43653, TN/110 Type T Indicator for Micro
170M6215 Application
Electrical Assemblies, Panels, EOEMs, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starters Applications, Safety and Security Systems, Industrial Facilities and Factories - Facility and Critical Power170M6215 Item Features
- Package type - standard
- Clearing (I2T): clearing at 660 V: 1300000
- Blade end connection
- Clearing loss: 125
- Pre Arc (I2T): Current pre-arc: 44500
- https://www.youtube.com/watch?v=YMvqUyoETXk
170M6215 Standards
UL Recognized ,IEC Rated ,UL Recognized ,IEC-Einstufung ,UL Recognized ,IEC nominaal ,UL Recognized ,Classificazione IEC ,UL Recognized ,Zgodność z IEC ,UL Recognized ,Parametry dle IEC ,Homologué CEI ,Reconnu UL,CE Marked,RoHS Compliant,RoHS-konform,CE-Kennzeichnung,RoHS-compliant,CE-markering,Conforme a RoHS,Con marchio CE,Zgodny z wymogami RoHS,Uzyskano oznaczenie CE,Opatřeno značkou CE,Splňuje požadavky RoHS,Conformité RoHS,Marquage CESKU #2455785Part Number #170M6215UNSPSC39121625UPC00051712263399

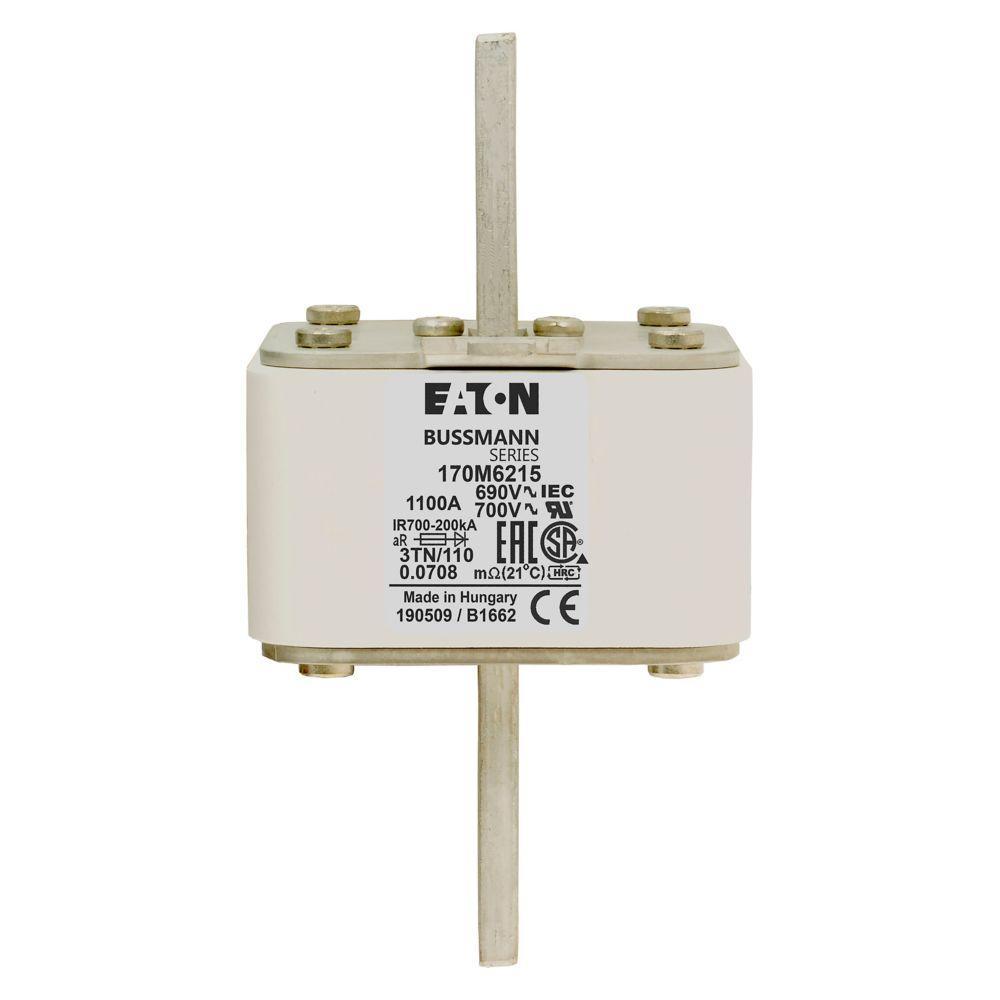

Image provided may only be a representation of final product and may include optional equipment
