Part Number # 170M6260
SKU # 2278404
Image provided may only be a representation of
final product and may include optional equipment
170M6260

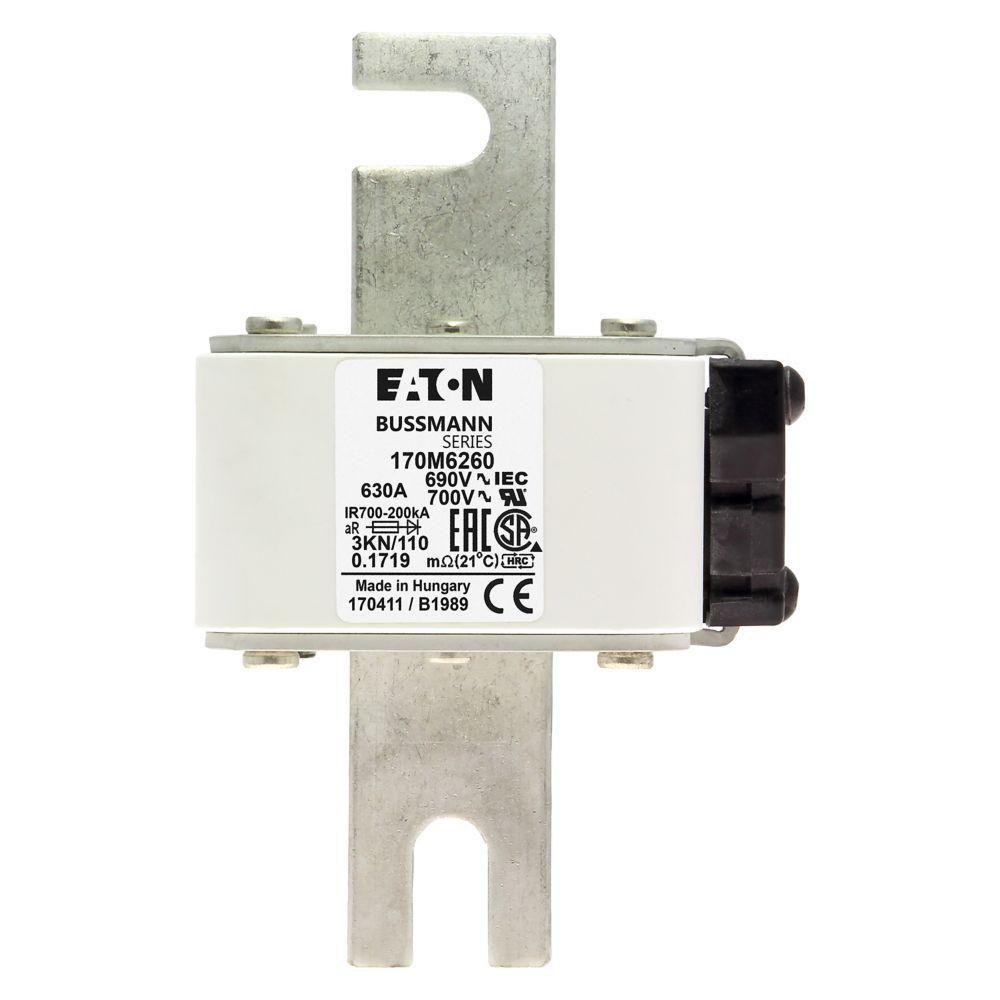

Bussmann 170M6260 Semiconductor Fuse
Part Number # 170M6260
SKU # 2278404
Bussmann 170M6260 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | 170M6260 |
| SKU #: | 2278404 |
| Amperage Rating: | 630, 630 A |
| Body Type: | Square |
| Class: | AR, Class AR |
| Indicating/Non-Indicating: | Non-Indicating |
| Interrupt Rating: | 200, 200 kA |
| Series: | 170M |
| Terminal Type: | Blade End |
| Type: | Semi-Conductor |
| Country of origin: | HU |
| Mounting type: | DIN 43 620 Blade, DIN 43 620 Blade Style |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121625 |
| UPC: | 00051712263610 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann 170M6260 Semiconductor Fuse
Brand: Bussmann
Part Number: 170M6260
Bussmann High Speed Fuse, Semi-Conductor, Series: 170M, Non-Indicating, 630 A, 690 V, 200 kA Interrupt, Class: aR, Blade End Terminal, DIN 43 620 Blade Style Mounting, Square Body, 5.433 in L x 0.315 in W x 2.087 in H Body
Additional Description: BUSS-170M6260 (N) FUSE 630A 690V 3KN/110 AR UC NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Fuse-link, high speed, 630 A, AC 690 V, DIN 3, 76 x 92 x 139 mm, aR, DIN, IEC, single indicator
170M6260 Application
Electrical Assemblies, Panels, EOEMs, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starters Applications, Safety and Security Systems, Industrial Facilities and Factories - Facility and Critical Power170M6260 Item Features
- Package type - standard
- Clearing (I2T): clearing at 660 V: 210000
- Blade end connection
- Clearing loss: 105
- Pre Arc (I2T): Current pre-arc: 69500
- https://www.youtube.com/watch?v=YMvqUyoETXk
170M6260 Standards
UL Recognized ,IEC Rated ,IEC-Einstufung ,UL Recognized ,UL Recognized ,Classificazione IEC ,IEC nominaal ,UL Recognized ,Zgodność z IEC ,UL Recognized ,Parametry dle IEC ,UL Recognized ,Homologué CEI ,Reconnu UL,CE Marked,RoHS Compliant,RoHS-konform,CE-Kennzeichnung,Conforme a RoHS,Con marchio CE,RoHS-compliant,CE-markering,Uzyskano oznaczenie CE,Zgodny z wymogami RoHS,Splňuje požadavky RoHS,Opatřeno značkou CE,Marquage CE,Conformité RoHSSKU #2278404Part Number #170M6260UNSPSC39121625UPC00051712263610
