Part Number # 170M6264
SKU # 2461222
170M6264
Bussmann 170M6264
Part Number # 170M6264
SKU # 2461222
$1159.16 / Each
Typical price:$2357.15 / Each
Bussmann 170M6264 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | 170M6264 |
| SKU #: | 2461222 |
| Amperage Rating: | 1000 A |
| Body Type: | Square |
| Class: | AR |
| Indicating/Non-Indicating: | Non-Indicating |
| Interrupt Rating: | 200 kA |
| Series: | 170M |
| Terminal Type: | Blade End |
| Type: | Semi-Conductor |
| Country of origin: | HU |
| Mounting type: | DIN 43 620 Blade Style |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121625 |
| UPC: | 00051712793650 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1159.16 / Each
Typical price:$2357.15 / Each
Quantity:
Bussmann 170M6264
Brand: Bussmann
Part Number: 170M6264

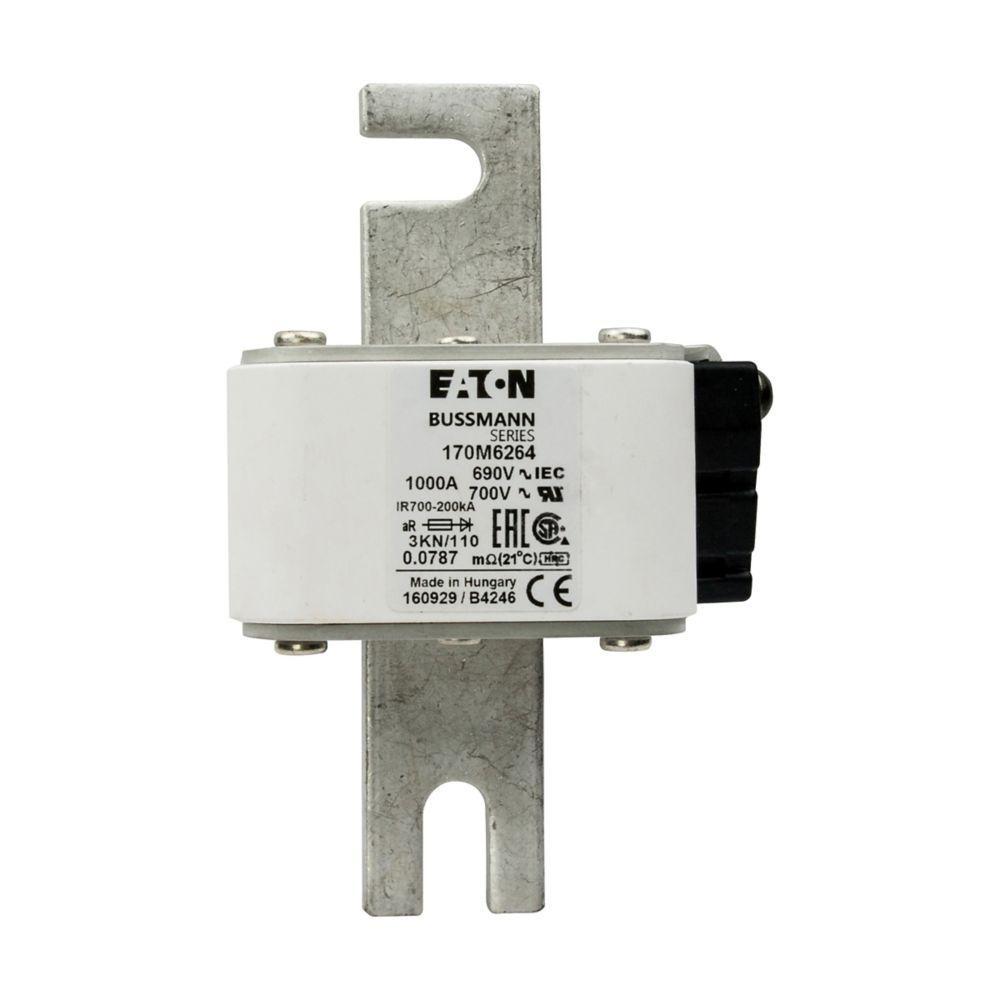

Bussmann High Speed Fuse, Semi-Conductor, Series: 170M, Non-Indicating, 1000 A, 690 V, 200 kA Interrupt, Class: aR, Blade End Terminal, DIN 43 620 Blade Style Mounting, Square Body, 2.75 in L x 3.375 in W x 4.688 in H Body
Additional Description: BUSS-170M6264 (N) FUSE 1000A 690V 3KN/110 AR UC NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Fuse-link, high speed, 1000 A, AC 690 V, DIN 3, 76 x 92 x 139 mm, aR, DIN, IEC, single indicator
170M6264 Application
Electrical Assemblies, Panels, EOEMs, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starters Applications, Safety and Security Systems, Industrial Facilities and Factories - Facility and Critical Power170M6264 Item Features
- Package type - standard
- Clearing (I2T): clearing at 660 V: 945000
- Blade end connection
- Clearing loss: 125
- Pre Arc (I2T): Current pre-arc: 290000
- https://www.youtube.com/watch?v=YMvqUyoETXk
170M6264 Standards
UL Recognized ,IEC Rated ,UL Recognized ,IEC-Einstufung ,UL Recognized ,Classificazione IEC ,IEC nominal ,UL Recognized ,Zgodno?? z?IEC ,UL Recognized ,UL Recognized ,Parametry dle IEC ,Reconnu UL ,Homologu? CEI,CE Marked,RoHS Compliant,RoHS-konform,CE-Kennzeichnung,Con marchio CE,Conforme a RoHS,RoHS-compliant,CE-markering,Zgodny z?wymogami RoHS,Uzyskano oznaczenie CE,Opat?eno zna?kou CE,Spl?uje po?adavky RoHS,Conformit? RoHS,Marquage CESKU #2461222Part Number #170M6264UNSPSC39121625UPC00051712793650
Image provided may only be a representation of final product and may include optional equipment
